Component Snapshot At-a-Glance

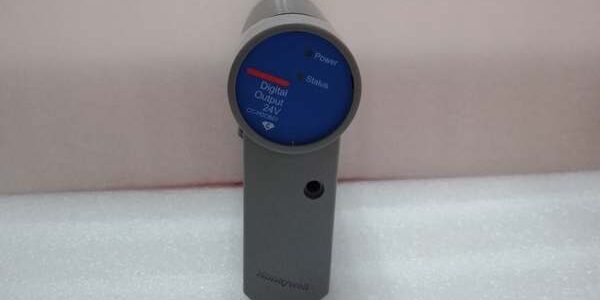

• Model: CC-PDOB01, factory P/N 51405043-175
• Alt. P/N: CC-TDOB01 (FTE backplane DO variant, IOTA/backplane incompatible); CC-PDOX01 (16-channel isolated DO, lower density)
• Product Series: Honeywell Experion PKS Series C standard non-FTE I/O, paired with C300 process controllers
• Hardware Type: Rack-mount 32-channel bussed sourcing digital output module, hot-swap capable, requires CC-TDOB01 simplex / CC-TDOB11 redundant IOTA base
• Key Feature: 4 independent 8-channel current-limited groups, per-channel short circuit protection, opto galvanic isolation, open load detection
• Primary Field Use: Convert C300 discrete control logic to 24VDC sourcing signals for solenoid valves, control relays, motor starters, and panel indicator lamps.

Hard-Numbers: Technical Specifications

• Protocol Support: Standard Series C non-FTE I/O backplane bus, chassis diagnostic telemetry
• Port Count: 32 bussed sourcing output channels; gold finger non-FTE backplane connector; mates to TD0B simplex/redundant IOTA
• Baud/Data Rate: Fixed 50ms module scan cycle; max switch on/off time 10ms per channel
• Operating Temperature: 0°C to +60°C cabinet operational; -40°C to +85°C storage
• Isolation Rating: 1500Vrms opto-galvanic isolation between field output circuits and controller backplane
• Power Draw: 24VDC ±10% rack supply, typical module power draw 4.8W
• Output Rating: Max 0.5A per channel, 3A per 8-channel group, total module max 6A
• Load Voltage Range: 18–30VDC nominal field supply
• Off-State Leakage: Max 0.5µA, no false energization of low-current solenoids
• Diagnostics: Short circuit lockout, open load detection, group overcurrent fault, module power loss
• Certifications: CE Class B EMC, ATEX Ex ec IIC T4 Zone 2 cabinet compliant
• Physical Weight: 0.23kg single module assembly

The Real-World Problem It Solves

Low-density 16-channel DO cards bloat cabinet footprint for sites with dozens of solenoid and relay control points. Non-grouped output hardware lets a single channel short pull down the entire card, dropping all valve control loops simultaneously.Generic output boards lack open-load diagnostics; broken solenoid wiring stays hidden until a safety interlock fails to actuate during a process upset. Non-isolated shared output banks create ground loop noise from VFD motor loads, triggering spurious solenoid chatter and uncommanded valve movement.Where you’ll typically find it:

• Refinery auxiliary ESD racks driving isolation valve solenoids and bypass valve relays
• Fossil power plant boiler balance-of-plant panels for pump start/stop relays and alarm indication lights
• Chemical batch DCS cabinets controlling small purge solenoids and local status indicator lampsThis high-density 32-channel bussed DO card limits fault propagation to individual 8-channel groups, flags broken field wiring to the DCS event log, and blocks industrial EMI noise to prevent unintended field device actuation.

Hardware Architecture & Under-the-Hood Logic

This module splits outputs into four electrically independent 8-channel groups with dedicated current limiters; each channel uses separate opto-isolation and MOSFET drive stages to contain short circuit faults.

1. Discrete on/off commands from the C300 controller cross the isolated Series C backplane to the on-board output ASIC.
2. Per-channel optocouplers break ground loop paths between DCS cabinet ground and field solenoid/relay wiring.
3. Sourcing MOSFET drive stages switch 24VDC positive to field loads; each 8-channel bank has dedicated group overcurrent shutdown logic.
4. Continuous leakage current monitoring detects open load circuits where no solenoid/relay load is connected, generates channel fault alarms to the controller.
5. Instant short-circuit current limiting latches off the affected single channel instead of the entire group, isolating faults without losing adjacent valve control.
6. Front panel dual-color LED array displays module RUN status, aggregate group overcurrent fault, and general communication loss for fast cabinet troubleshooting.

Field Service Pitfalls: What Rookies Get Wrong

Installing CC-TDOB01 FTE DO Card Into Standard Non-FTE TD0B IOTA Chassis

New techs swap FTE CC-TDOB01 spare cards into standard backplane racks to cut spare inventory costs. Mismatched backplane pinout blocks all I/O communication, module locks into permanent FAULT state, all 32 solenoid outputs drop to de-energized fail-safe state.Field Rule: Only deploy CC-PDOB01 on standard non-FTE Series C racks; segregate FTE and standard DO spares in clearly labeled storage bins to avoid cross-installs.

Overloading Single 8-Channel Group Past 3A Total Combined Load

Apprentices stack multiple high-current solenoids into one 8-channel group, pushing combined load above 3A. Group overcurrent protection trips the entire bank, cutting 8 valve control loops at once during normal plant operation.Quick Fix: Distribute high-current solenoid loads evenly across all four 8-channel groups; calculate total group current during cabinet build to stay under 3A per bank.

Running Unshielded Cable For Solenoid Wiring Parallel To VFD Power Runs

Crews pull unshielded twisted pair for long solenoid wiring routed alongside variable frequency motor cables. EMI noise induces false ON signals on DO channels, causing random uncommanded solenoid chatter and nuisance valve actuation.Field Rule: Use foil-shielded instrument cable for all DO field runs near VFD loads; terminate shield drain wire only at the TD0B IOTA cabinet side, tape and isolate field end shield from earth ground.
