Honeywell CC-PDIL01 | 32 Channel 24VDC Sink Digital Input Module for Experion PKS C300 Series C I/O - Field Service Notes

Honeywell CC-PDIL01 | 32 Channel 24VDC Sink Digital Input Module for Experion PKS C300 Series C I/O – Field Service Notes

Component Snapshot At-a-Glance

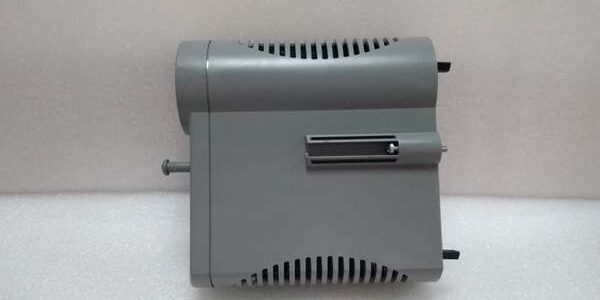

Model: CC-PDIL01, factory P/N 51405040-175
Alt. P/N: CC-TDIL01 (non-redundant IOTA base); CC-TDIL11 (redundant IOTA); CC-PDIH01 (120VAC high voltage DI, non-interchangeable)
Product Series: Honeywell Experion PKS Series C standard non-FTE I/O, paired with C300 process controllers
Hardware Type: Rack-mount 32-channel 24VDC sink digital input module, hot-swap capable, requires dedicated TDIL IOTA terminal base
Key Feature: Per-channel opto-galvanic isolation, software configurable signal debounce, open wire circuit detection for dry contact field devices
Primary Field Use: Read 24VDC discrete status from valve limit switches, motor run/trip contacts, ESD interlock switches, NAMUR proximity sensors for process interlock logic.
