Component Snapshot At-a-Glance

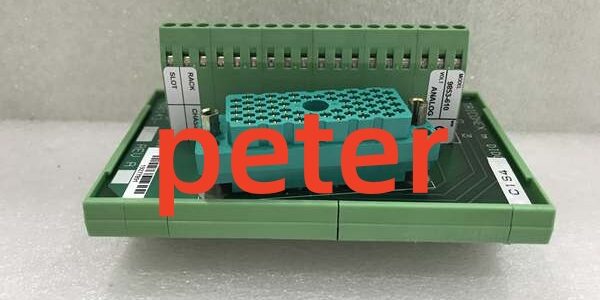

- Model: Triconex 9853-610
- Alt. P/N: 9853-620 (diagnostic enhanced version)
- Product Series: Tricon 3700 Safety Instrumented System
- Hardware Type: 8-channel basic analog output termination panel
- Key Feature: Configurable 4-20mA or 0-10V signal with 500VDC galvanic isolation
- Primary Field Use: Interfaces Tricon 3721/3722 AO modules to analog field actuators and control valves.
Hard-Numbers: Technical Specifications
- Port Count: 8 analog output channels
- Signal Type: 4-20mA current or 0-10V voltage, selectable via on-board jumpers
- Isolation Rating: 500VDC between backplane side and field side
- Operating Temperature: -40°C to +70°C continuous operation
- Power Draw: Powered entirely from Tricon backplane, no external power required
- Termination: Screw terminals, compatible with 14 AWG to 22 AWG wire
- Channel Load: Max 600Ω for 4-20mA mode
- Storage Temperature: -40°C to +85°C
- Humidity: 5% to 95% non-condensing
- Indicators: Per-channel status LED for output activity
- Certifications: IEC61508 SIL3, UL, CE, ATEX
The Real-World Problem It Solves
Direct hardwiring to AO modules creates tangled field wiring and increases risk of wire damage during module replacement. Unseparated circuits also introduce electrical interference that causes unstable analog signal levels in industrial environments.Where you’ll typically find it:
- Refinery ESD racks paired with 3721 AO modules for control valve positioning signals
- Power plant BMS cabinets driving damper actuators and fuel valve positioners
- Offshore safety panels routing analog outputs to remote process field devicesThis panel centralizes field terminations, adds isolation and basic status indication to simplify maintenance and reduce signal noise.
Hardware Architecture & Under-the-Hood Logic
This is a passive termination assembly with no on-board processor. It provides signal routing, isolation and user-selectable signal range for analog output circuits.
- A 50-pin ribbon cable carries analog signals from Tricon AO module to the panel internal circuits.
- On-board jumpers set each channel for 4-20mA current mode or 0-10V voltage mode.
- Isolation barriers separate the safety system side from field wiring to block transient voltage.
- Each channel routes to dedicated screw terminals and a status LED that activates with output load.
- Metal base connects to cabinet ground to maintain EMC shielding across the assembly.
Field Service Pitfalls: What Rookies Get Wrong
Incorrect Signal Range Jumper SettingsTechnicians set jumpers for voltage mode while field devices expect current signals. This results in no output or erratic valve movement.
- Field Rule: Verify field device requirements first. Set jumpers to 4-20mA for most industrial positioners, 0-10V for voltage-only actuators.
Exceeding Maximum Channel Load ResistanceLong cable runs or multiple devices push total load above 600Ω in current mode. Output signal collapses and triggers system faults.
- Quick Fix: Calculate total loop resistance. Install signal repeaters if load exceeds rated limit.
Poor Shield and Ground PracticesWorkers leave panel chassis ungrounded or ground cable shields at both ends. Ground loops develop and cause continuous signal drift.
- Field Rule: Secure chassis ground firmly. Ground analog cable shield only at the panel side, leave field end floating.
