Component Snapshot At-a-Glance

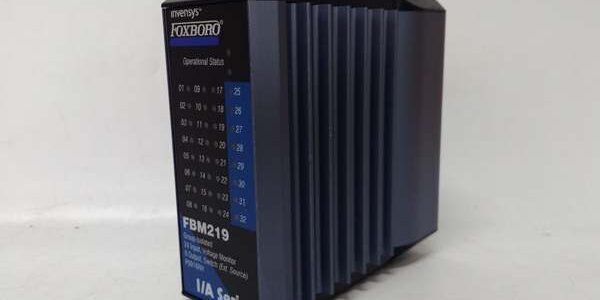

• Model: (Base OEM P/N P0916RH)
• Alt. P/N: No alternate factory part number; all variants tied to matching TA terminal assembly
• Product Series: Foxboro I/A Series FBM Distributed Fieldbus I/O Family
• Hardware Type: Rack plug-in group-isolated mixed discrete input/output PCB, paired with dedicated field TA terminal block
• Key Feature: Onboard ladder logic execution + software-selectable input debounce filtering without external hardware modification
• Primary Field Use: Collect equipment limit/door/motor run status; drive solenoid, alarm horn and small contactor loads across process interlock racks

Hard-Numbers: Technical Specifications

• Protocol Support: Proprietary I/A FBM 2Mbps backplane fieldbus, no external fieldbus port
• Port Count: 24 discrete input channels, 8 discrete output channels (group-based galvanic isolation layout)
• Baud/Data Rate: Fixed downstream FBM bus 2Mbps; per-input scan rate tied to set filter value
• Operating Temperature: 0°C ~ +60°C continuous rated; G3 environment rated for elevated humidity/dust cabinet installs
• Isolation Rating: 1500V group-to-backplane isolation per isolated bank to contain field surge damage
• Power Draw: Max 3.8W total, powered entirely via I/A rack 24VDC backplane bus
• Supported Field Voltage: 15–60VDC, 120VAC/125VDC, 240VAC (voltage compatibility determined by paired TA terminal assembly)
• Debounce Options: 0ms /4ms /8ms /16ms /32ms software configurable input filter time
• Output Rating: Individual DO contact rated for low-power solenoid duty, fuse protected at TA side per channel group

The Real-World Problem It Solves

Separate DI-only and DO-only FBM cards bloat spare inventory and waste valuable rack slot space for low-density interlock point groups. Unfiltered raw field switch bounce triggers intermittent false DCS alarm spamming during motor starter contact chatter.Where you’ll typically find it:

• Coal-fired boiler BMS cabinet: Burner flame prove switches, fuel valve limit feedback and purge solenoid drive outputs
• Refinery crude pump house rack: Pump running/thermal trip discrete feedback + lube oil alarm horn control outputs
• Chemical plant reactor safety cabinet: Emergency stop door interlock inputs and purge valve solenoid outputsCombined 24IN+8OUT layout shrinks cabinet footprint and cuts spare part stocking cost for scattered small I/O point banks.

Hardware Architecture & Under-the-Hood Logic

This card uses grouped optocoupler isolation for field side circuitry, onboard MCU handles local discrete logic processing separate from main FCP controller; field faults lock to affected channel group instead of crashing full module bus communication.

1. Raw field discrete signal passes through TA-side fuse/limiter then group opto-isolation front-end before PCB entry
2. Input signal feeds configurable RC filter circuit per programmed debounce setting to strip mechanical switch bounce noise
3. Onboard microcontroller scans all 24DI, executes preloaded local ladder logic for interlock math before output calculation
4. Calculated DO drive signal routes to isolated output driver stage feeding TA terminal connected field actuators
5. Compressed channel status data frames pack onto 2Mbps FBM bus for periodic upload to upstream FCM/FCP controller

Field Service Pitfalls: What Rookies Get Wrong

Mismatched TA Terminal Assembly For Applied Field VoltageTechs reuse 24VDC-rated TA for 120VAC field wiring after card swap; overvoltage bleeds into module isolation and triggers persistent MOD FAULT lamp.

• Quick Fix: Cross-check TA part number against field operating voltage per site wiring schedule before terminating field cables.

Default Zero Filter Setting For Mechanical Limit SwitchesLeaving input debounce at 0ms factory default on worn mechanical limit contacts; random intermittent tag fluttering and spurious interlock trips hit during equipment vibration.

• Field Rule: Set minimum 8ms filter for all mechanical switch DI channels during initial commissioning.

Overloading DO Outputs Beyond TA Fuse RatingDaisy-chain multiple solenoid loads onto single DO terminal exceeding TA built-in fuse limit; blown TA fuse takes entire output bank offline with no individual channel fault flag.

• Field Rule: Split multi-solenoid loads across spare DO channels and verify TA per-group fuse rating against total inrush current.
