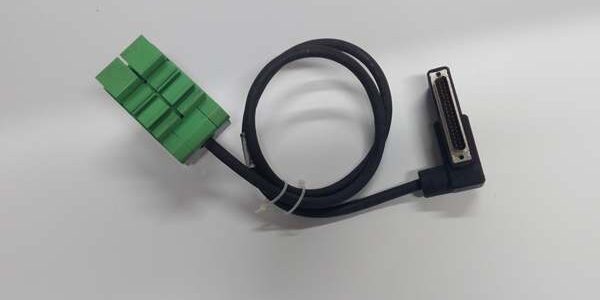

Component Snapshot At-a-Glance
- Model:
- Alt. P/N: No direct OEM cross-part; AD908 base platform with AE factory calibration variant
- Product Series: Foxboro I/A Series DCS Rack Mount I/O Family
- Hardware Type: Rack plug-in universal isolated analog input PCB, dedicated matching field terminal assembly
- Key Feature: Single hardware supports RTD, Thermocouple, 4–20mA, 1–5VDC without channel hardware rework
- Primary Field Use: Collect temperature, pressure and flow transmitter readings across boiler, refining and process unit DCS racks.
Hard-Numbers: Technical Specifications
- Protocol Support: I/A proprietary backplane fieldbus communication, no external fieldbus port onboard
- Port Count: 8 fully galvanic isolated universal analog input channels
- Baud/Data Rate: Fixed internal backplane bus speed; per-channel ADC sample rate 10Hz–1kHz software selectable
- Operating Temperature: 0°C ~ +60°C continuous rated; de-rate accuracy above 55°C inside sealed airtight cabinets
- Isolation Rating: 2000V channel-to-backplane isolation per individual input channel
- Power Draw: Max 4.1W total, rack backplane 24VDC powered
- Input Types: Configurable RTD(2/3/4-wire), TC(J/K/T/E/S/R/B), 0–5V,1–5V,4–20mA process signals
- ADC Resolution: 16-bit sigma-delta analog conversion per channel
- Filter Option: Software programmable 50Hz/60Hz line noise notch filter
The Real-World Problem It Solves
Dedicated single-type AI cards force stocking multiple spare card models for mixed RTD/TC/4-20mA field wiring; site technicians swap wrong I/O hardware mid-outage and extend unit downtime. Fixed-range non-isolated cards let field surge crash entire 8-point input bank from nearby motor switching transients.Where you’ll typically find it:
- Coal-fired boiler DCS rack: Furnace tube TC, feedwater RTD and drum level 4-20mA transmitter inputs
- Refinery fractionation unit cabinet: Column tray temp TC and overhead pressure analog transmitters
- Chemical plant reactor control rack: Batch temperature RTD and process flow 4–20mA measurement loopsUniversal signal compatibility cuts spare part inventory and eliminates emergency cross-card replacement downtime.
Hardware Architecture & Under-the-Hood Logic
This module includes per-channel isolated signal conditioning circuit plus shared central DSP for linearization; all field-side circuitry optically separated from DCS rack backplane logic to block surge bleed into control bus.
- Incoming field sensor signal feeds dedicated isolated front-end conditioning circuit matching selected input type (RTD/TC/mA/V)
- Onboard programmable gain amp scales raw analog signal to fixed input window for 16-bit sigma-delta ADC conversion
- DSP chip applies TC/RTD linearization math and selected notch filter to strip AC power line interference
- Converted engineering values cache into local onboard RAM buffer for backplane frame assembly
- Compressed channel data transmits over proprietary I/A backplane bus to FCP controller for DCS tag mapping and alarming
Field Service Pitfalls: What Rookies Get Wrong
Incorrect Lead Compensation For 3-Wire RTD InstallsTechs skip software RTD wire length compensation after field cable reroute; measured temperature drifts high/low 3~8°C across ambient cabinet swing.
- Quick Fix: Update RTD lead resistance parameter in I/A control config post every field wiring modification.
Mixed TC/RTD Wiring On Same Channel Bank Without ReconfigurationDirectly swap thermocouple for RTD wiring on existing configured TC channel; module flags persistent minor FAULT blink and invalid frozen tag values.
- Field Rule: Reprogram channel input type via workstation software before any field sensor type swap.
Poor Cabinet Ventilation Causes ADC Thermal DriftStacking multiple high-power AI modules adjacent with zero empty rack slots pushes internal PCB temp over +60°C; gradual measurement creep appears over weeks of runtime.
- Field Rule: Reserve minimum one empty rack slot between dense clusters for passive convection cooling.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
