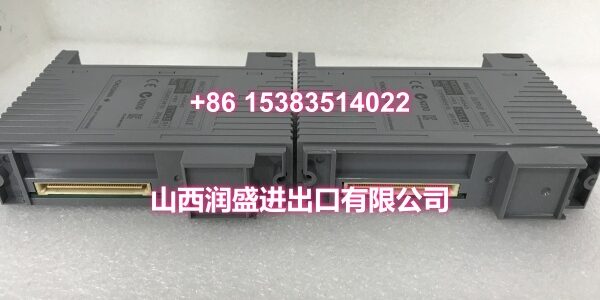

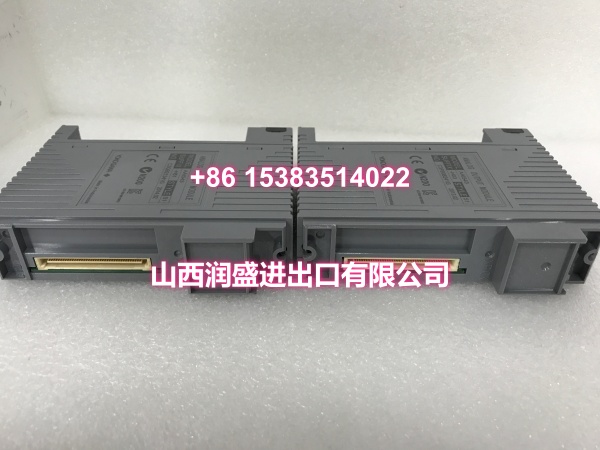

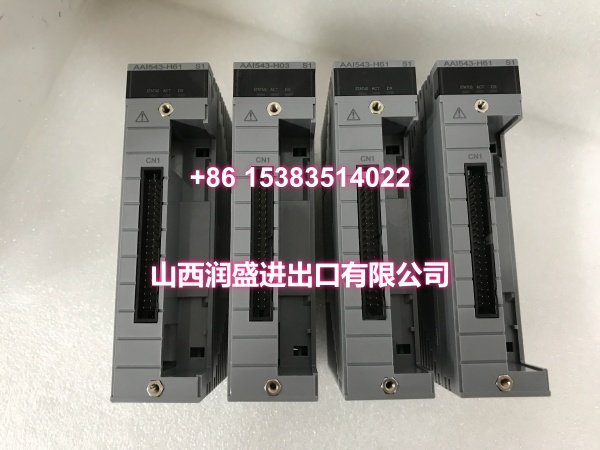

Product Core Brief
- Model: YOKOGAWA AAI543-S00 S1
- Brand: YOKOGAWA
- Series: CENTUM CS 3000 / AAI543 Analog Output Series
- Core Function: Provides 16 isolated 4–20 mA analog outputs for driving valves, positioners, and actuators in CENTUM CS 3000 DCS systems.
- Product Type: DCS Analog Output Module
- Key Specs: 4–20 mA | 16 isolated channels | ±48 µA accuracy | 10 ms update | 0–750 Ω load | standard switchover redundancy
- Condition: New Original (New Surplus) / Factory Sealed
Product Introduction
A single failed analog output card can park a control valve and stop a production line. The YOKOGAWA AAI543-S00 S1 is a 16-channel 4–20 mA analog output module for CENTUM CS 3000 DCS, used to command field devices such as control valves, I/P converters, and variable-speed drives with isolated current outputs.
This unit carries the “-S00” suffix, meaning it is a standard-type AO module without HART digital communication and with the basic environmental option, plus the S1 style revision. That matters during replacement: if your original card was an AAI543-H50, AAI543-S51, or AAI543-S53, the HART capability, ISA G3 coating, or extended temperature rating may not match. For straightforward 4–20 mA output loops where HART is not required, this module delivers ±48 µA accuracy, 10 ms data update, and support for standard switchover in dual-redundant configurations. Keeping one sealed spare on hand can cut unplanned downtime from days to minutes.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model | AWA S1 |
| Product Type | Analog Output Module (DCS) |
| Compatible System | CENTUM CS 3000 series |
| Output Signal | 4–20 mA |
| Channels | 16 isolated channels |
| Accuracy | ±48 µA |
| Data Update Period | 10 ms |
| Allowable Load Resistance | 0–750 Ω |
| Circuit-Open Detection | < 0.65 mA |
| Withstanding Voltage | 1500 V AC, 1 min (output vs system) |
| Redundancy | Dual-redundant, standard switchover response |
| HART Communication | Not supported on -S00 suffix |
Key Selling Points & Differentiators
- Exact replacement for CENTUM CS 3000 systems requiring a non-HART, 16-channel 4–20 mA AO card.
- Isolated channels reduce ground-loop noise and improve loop stability.
- ±48 µA accuracy and 10 ms update support stable valve positioning and process control.
- Supports dual-redundant configurations with standard switchover response.
- Factory-sealed surplus inventory with visual QA and 12-month warranty.
- Not recommended for projects that require HART device configuration; choose an AAI543-Hxx variant instead.
Quality Transparency SOP
- Visual inspection: Check label, suffix code, style number, connector pins, and housing for moisture, corrosion, or handling damage.
- Seal verification: Confirm original anti-static bag, desiccant, and factory labeling before opening.
- Backplane power check: Verify 5 VDC and 24 VDC rails before insertion; max consumption is about 230 mA at 5 VDC and 540 mA at 24 VDC.
- Channel output test: Use a Fluke multimeter and a precision 250 Ω / 500 Ω load box to verify 4 mA, 12 mA, and 20 mA outputs across multiple channels.
- Isolation test: Perform insulation resistance and dielectric checks between output channels and system ground per Yokogawa specifications.
Technical Risk Avoidance
❗ Confirm the suffix before ordering. AAI543-S00 S1 is a standard, non-HART module. It is not a direct functional replacement for AAI543-H50/H53 cards when HART communication is required.
❗ Check your node unit and backplane power budget. This module draws up to 540 mA at 24 VDC; overloading a slot or node supply can cause erratic behavior.
❗ Verify the terminal board and cable type. Depending on wiring, the module may require AEA4D terminal boards with KS cable, MIL connector cable, or pressure-clamp terminals.
❗ In redundant configurations, ensure both modules share the same suffix code. Mismatched cards can prevent proper switchover or cause output drops during failover.
Buyer’s FAQ
Is the YOKOGAWA AAI543-S00 S1 a genuine OEM part?
Yes. It is an original Yokogawa AAI543 series analog output module supplied as new surplus, factory sealed when available. We do not rebrand or relabel third-party substitutes.
What does “S00 S1” mean?
“-S” means standard analog output without HART; “00” indicates the basic option; “S1” is the style revision. If your system requires HART, ISA G3 coating, or -20 to 70 °C operation, this exact suffix may not match.
Is this new, refurbished, or used?
Listed as new original surplus. If the factory seal is intact, it ships sealed. If the seal was previously opened for inspection, the listing will state it clearly.
Can I replace an AAI543-H50 with this module?
Only if HART communication is not required. Functionally it provides 4–20 mA outputs, but you will lose HART device access and configuration.
What warranty do you offer?
A 12-month warranty against manufacturing defects and DOA issues. Damage from incorrect wiring, overvoltage, backplane faults, or mismatched system configuration is not covered.
