Product Core Brief
- Model: MVAJ21L1GB0771B
- Brand: ALSTOM / GE Vernova
- Series: ALSTOM Legacy Auxiliary/Tripping Relay Family
- Core Function: Electromechanical auxiliary/tripping relay used in protection panels for breaker trip, interlock, signaling, and auxiliary DC control circuits.
- Product Type: Auxiliary Relay / Tripping Relay / Draw-Out Relay
- Key Specs: DC coil; changeover contacts; draw-out case; hand-reset flag/indicator; rear terminal block wiring; no communication interface
- Condition: New Original / New Surplus
Product Introduction

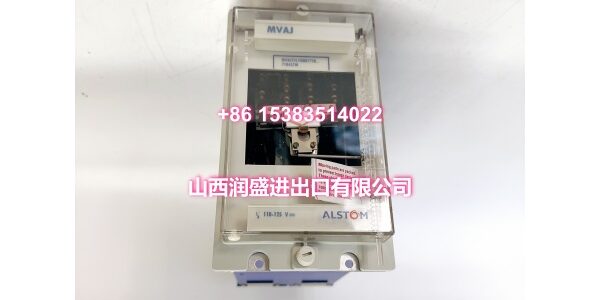

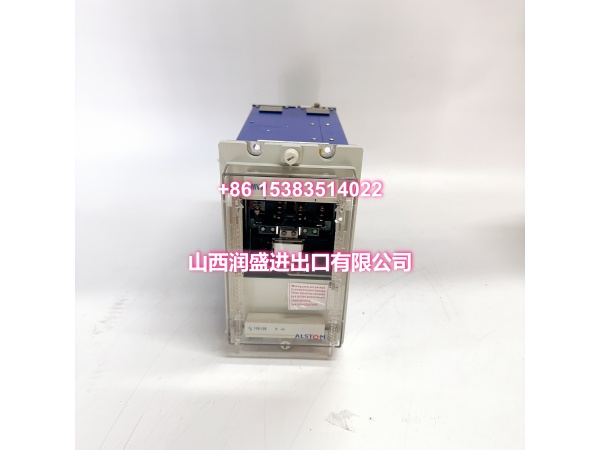

ALSTOM MVAJ21L1GB0771B is a heavy-duty auxiliary/tripping relay used in legacy ALSTOM/AREVA/GE protection panels. It is typically installed in a draw-out case with rear terminal block wiring, allowing the relay element to be withdrawn for inspection or replacement without disturbing permanent panel wiring.
The relay provides dry changeover contacts for tripping, interlocking, alarm, and auxiliary control duties in medium- and high-voltage switchgear, feeder panels, transformer and generator protection cabinets, and industrial DC trip circuits. A hand-reset flag or mechanical indicator is commonly provided so operators and maintenance personnel can visually confirm operation during commissioning and post-fault checks.
Public spare listings describe MVAJ21L1GB0771B as an electromechanical auxiliary/tripping relay with no communication interface. Some third-party pages incorrectly label it as a motion controller, PLC module, overcurrent relay, or intelligent controller with SCADA, Modbus, or Ethernet capability; those descriptions are inconsistent with the typical MVAJ21 auxiliary relay family and should not be used as the sole basis for replacement. The installed nameplate, coil voltage, contact arrangement, and panel drawing should always be verified before procurement.
Key Technical Specifications

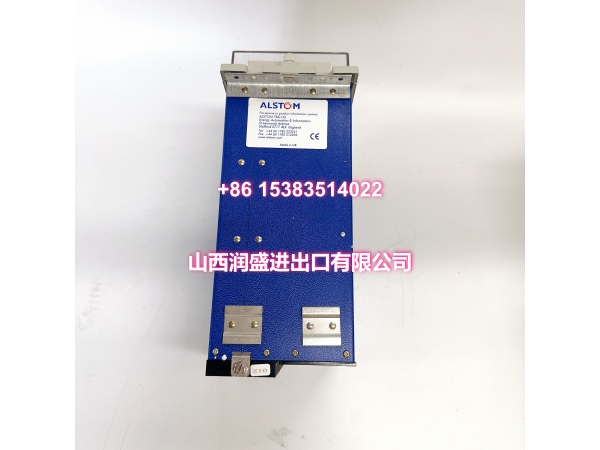

| Parameter | Value |
|---|---|
| Full Model | ALSTOM |
| Product Type | Electromechanical Auxiliary/Tripping Relay |
| System Platform | ALSTOM Legacy Protection Panel Relay Family |
| Core Function | Trip, interlock, auxiliary signaling, and DC control circuit duty |
| Coil Voltage | DC coil; commonly 110 VDC for this build code in many installations — confirm from nameplate |
| Contacts | Dry changeover contacts; arrangement depends on sub-code |
| Indicator | Hand-reset flag/indicator for operation confirmation |
| Installation | Flush panel mounting in draw-out case; rear terminal block wiring |
| Communication | None |
Quality Control Process
- Visual and code check: Confirm MVAJ21L1GB0771B labeling, case condition, terminal block, and flag/indicator mechanism.
- Coil verification: Confirm DC coil voltage matches the installed nameplate and panel drawing.
- Contact operation check: Verify pickup, drop-off, and changeover contact operation under rated coil voltage.
- Draw-out mechanism check: Confirm smooth insertion/withdrawal and correct rear terminal engagement.
- Final packing: Record test results, apply asset labels, and ship with terminal and case protection.
Replacement Pitfall Guide
❗ Confirm coil voltage before replacement. MVAJ21 variants may use 24, 48, 110, 125, or 220 VDC coils; applying the wrong voltage can prevent operation or damage the coil.
❗ Verify contact arrangement. The number and type of changeover contacts must match the trip, interlock, and signaling circuits in the panel.
❗ Do not treat it as a digital relay. MVAJ21L1GB0771B is an electromechanical auxiliary/tripping relay and has no overcurrent calculation, settings menus, or communication ports.
❗ Check draw-out case compatibility. The replacement must match the case size, terminal layout, and mounting cutout to avoid rewiring.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor Model | Compatibility Level | Migration Notes |
|---|---|---|---|
| ALSTOM | ALSTOM | Direct | Like-for-like replacement when coil voltage, contact arrangement, and case match. |
| ALSTOM | Other MVAJ21 variant | Needs Adaptation | Confirm coil voltage, contact count, flag/indicator, and case dimensions. |
| ALSTOM | Modern auxiliary/tripping relay | Needs Adaptation | Requires case, terminal, coil, and contact mapping verification. |
- Typical use: MV/HV switchgear, feeder and transformer protection panels, generator protection cabinets, rail traction substations, and industrial DC trip/interlock circuits.
- Key verification points: MVAJ21L1GB0771B part number, coil voltage, contact configuration, draw-out case type, and panel wiring drawing.
