Product Core Brief
- Model: KCEU142
- Brand: ALSTOM
- Series: ALSTOM Protection & Control / Legacy Control Platform
- Core Function: Relay / command control module used for circuit protection, control switching, and status signaling in ALSTOM cabinet systems.
- Product Type: Relay Module / Command Control Module / Spare Control Card
- Key Specs: ALSTOM cabinet compatible | Rack or backplane-mounted | Industrial protection and control application
- Condition: New Original / New Surplus
Product Introduction

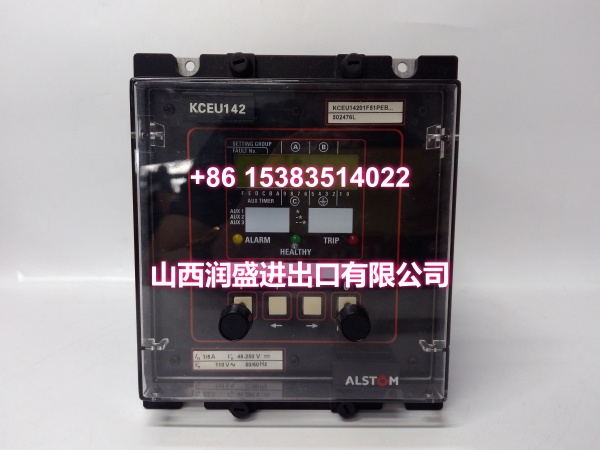

ALSTOM KCEU142 is an ALSTOM relay / command control module referenced as a spare or replacement card for ALSTOM protection and control cabinets. It is typically used in power systems, substation automation, rail transit, and industrial process control environments where ALSTOM rack-based platforms are installed.

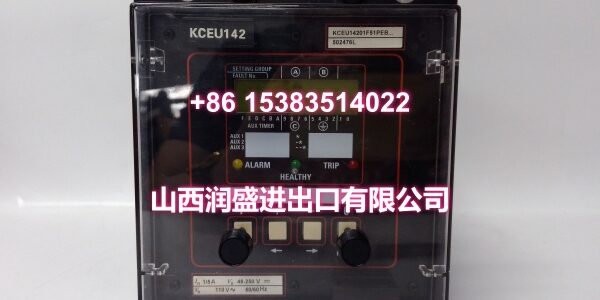

The module is commonly described as a relay module with circuit control, protection, and switching functions. Some listings also associate KCEU142 with the extended part number KCEU14201F51PEB and material code 502476L, which may represent a specific configuration, firmware, or I/O variant.
Because public references do not clearly define the exact channel count, voltage rating, communication protocol, or slot rules, the installed nameplate, cabinet drawing, or system documentation must be checked before replacement.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full Model | ALSTOM KCEU142 |
| Related Part Number | KCEU14201F51PEB / 502476L reported in some listings |
| Product Type | Relay Module / Command Control Module |
| System Platform | ALSTOM Protection & Control / Legacy Control Platform |
| Core Function | Relay control, circuit protection, switching, and status signaling |
| Communication / I/O | Confirm per installed nameplate; some variants list serial/Ethernet I/O features |
| Power Supply | Confirm per installed nameplate |
| Installation | Rack-mounted or backplane-mounted module |
| Typical Applications | Substation protection, power system control, rail transit, industrial automation cabinets |
| Operating Temperature | Confirm per installed system rating |
Quality Control Process
- Visual and code check: Confirm KCEU142 labeling, PCB condition, connectors, and front hardware.
- Part number verification: If the replaced card shows KCEU14201F51PEB or 502476L, confirm whether it must match exactly.

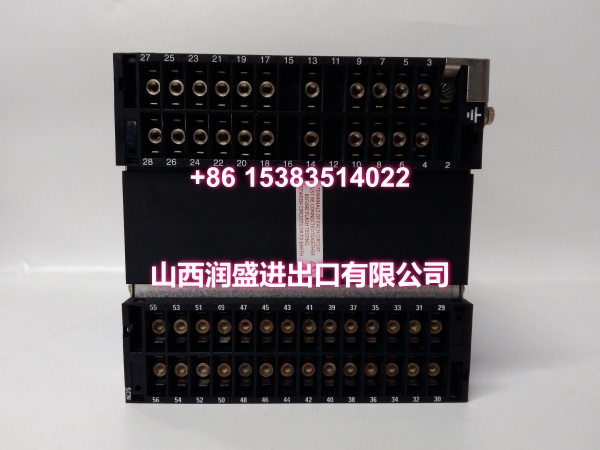

- Backplane and connector inspection: Check edge connector, slot contacts, and cabinet wiring before insertion.
- Power and relay check: Verify supply voltage, polarity, insulation, relay operation, and trip/healthy indicators.
- Final packing: Record test results, apply asset labels, and ship in anti-static packaging with connector protection.
Replacement Pitfall Guide
❗ Confirm vs KCEU14201F51PEB. The base model KCEU142 may have configuration variants; mismatched firmware or I/O mapping can affect protection logic.
❗ Verify relay function and voltage rating. Do not assume contact rating, coil voltage, or trip behavior without nameplate confirmation.
❗ Check slot position and addressing. Relay / command modules may require defined slot positions or address settings.
❗ Validate protection logic after replacement. Even if the module powers up, trip outputs, healthy signals, and interlocks must be verified.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor Model | Compatibility Level | Migration Notes |
|---|---|---|---|
| ALSTOM KCEU142 | ALSTOM KCEU142 | Direct | Like-for-like replacement when cabinet, slot, and function match. |
| ALSTOM KCEU142 | ALSTOM KCEU14201F51PEB | Needs Adaptation | Confirm whether the extended part number, firmware, and I/O mapping are required. |
| ALSTOM KCEU142 | Other ALSTOM relay/control module | Needs Adaptation | Requires verification of protection logic, power supply, and cabinet integration. |
- Typical use: ALSTOM substation protection cabinets, power system control panels, rail transit systems, and industrial automation racks.
- Key verification points: Exact part number, KCEU14201F51PEB / 502476L marking, relay function, power supply, slot position, and nameplate confirmation.
