Product Core Brief
- Model: 12004-102-01 VPS BOARD VER.C
- Brand: ALSTOM
- Series: ALSTOM / ALSTOM Grid legacy protection and control boards
- Core Function: Serves as a plug-in control board for legacy ALSTOM rack systems used in substation protection, generator excitation, and turbine control.
- Product Type: Plug-in control board / system interface card
- Key Specs: Backplane-powered | Slide-in rack-mount board | Typical operating range 0 to 55 °C
- Condition: New Original / New Surplus — to be confirmed per available stock
Product Introduction

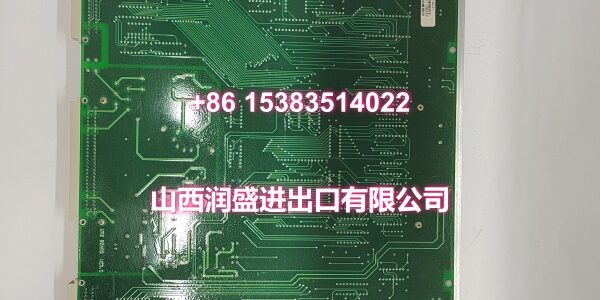

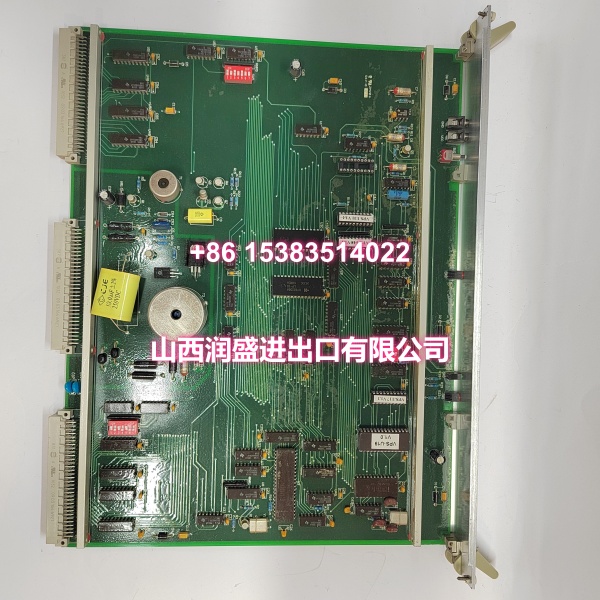

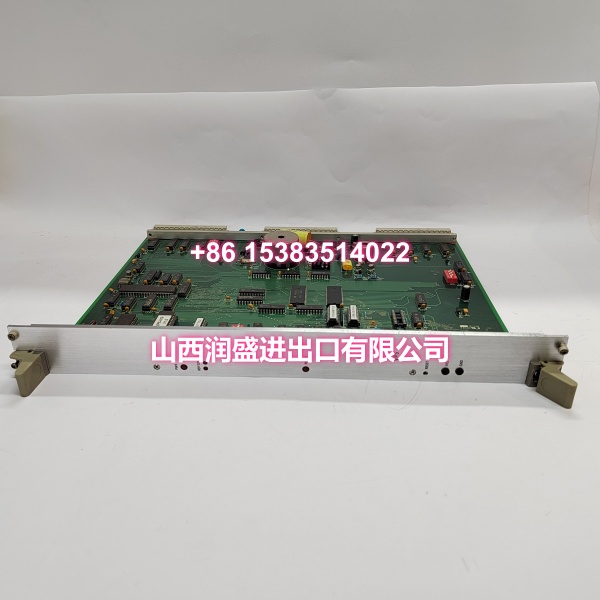

The ALSTOM 12004-102-01 VPS BOARD VER.C is a plug-in control board used in legacy ALSTOM and ALSTOM Grid rack systems. It installs into a designated chassis slot and interfaces with the host controller, backplane, and terminal boards to support protection, monitoring, and control functions.
This board is commonly found in substation automation, generator excitation panels, and turbine control applications where like-for-like replacement matters. It draws power from the host backplane, so there is typically no separate field PSU wiring. Operating temperatures around 0 to 55 °C make it suitable for control-room environments.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ALSTOM / ALSTOM Grid |
| Part Number | 12004-102-01 |
| Board Revision | VER.C |
| Product Type | Plug-in control board / system interface card |
| Mounting | Slide-in board for designated ALSTOM chassis slot |
| Power Supply | Powered via host backplane; no external supply typically required |
| Signal Interface | Internal analog/digital signaling over system backplane; field I/O via terminal boards |
| Communication | Managed by host controller and internal bus |
| Typical Operating Temperature | 0 to 55 °C |
| Typical Application | Substation protection, generator excitation, turbine control, switchgear automation |
| Installation | Front-panel secured plug-in replacement |
| Condition | New Original / New Surplus |
Note: Exact I/O counts, firmware behavior, and host-platform compatibility depend on the specific ALSTOM rack and system configuration. Confirm against the original nameplate and system documentation before installation.
Quality Control Process
From the bench, this board gets handled as a sensitive plug-in control card, not a generic relay. First, visual inspection covers the PCB, connectors, front panel, and revision marking to confirm VER.C and rule out physical damage. Next, backplane connector pins are checked for bent contacts, corrosion, and seating integrity, since poor insertion is a common failure point in older racks.
The board is then powered through a controlled test setup that mimics the host chassis rails rather than applying random field voltage. Signal paths, logic rails, and communication interfaces are checked with a calibrated multimeter and, where applicable, an oscilloscope to verify stable operation. Finally, the unit is packed in anti-static shielding with edge protection to prevent transit damage.
Replacement Pitfall Guide
❗ Verify the revision before swapping. VER.C may not be interchangeable with other revisions unless the system documentation confirms it. A wrong revision can cause addressing faults or failed startup.
❗ Do not apply external field voltage directly. This board is typically backplane-powered. Feeding voltage into the wrong terminals can damage the card or the host rack.
❗ Check chassis slot assignment. Some ALSTOM racks enforce fixed slot roles. Installing the board in the wrong slot may prevent recognition even if the hardware fits.
❗ Inspect the backplane connector first. A bent pin or dirty contact will mimic a failed board. Clean seating matters more than most technicians expect.
❗ Confirm host controller configuration. If the system uses slot-based addressing or firmware mapping, the replacement board may require the host controller to re-recognize it.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor Model | Compatibility Level | Migration Notes |
|---|---|---|---|
| ALSTOM 12004-102-01 VPS BOARD VER.C | ALSTOM 12004-102-01 VPS BOARD VER.C | Direct | Like-for-like spare for the same ALSTOM/ALSTOM Grid rack. |
| ALSTOM 12004-102-01 VPS BOARD VER.C | ALSTOM 12004-102-01 (other revisions) | Needs Adaptation | Revision, firmware, and slot compatibility must be confirmed. |
| ALSTOM 12004-102-01 VPS BOARD VER.C | Modern ALSTOM/Grid or MiCOM successor platform | Needs Adaptation | Typically requires engineering review, configuration migration, and possible rewiring. |
Benchmark notes
- Power interface: Backplane-powered; no separate field PSU wiring in typical installations.
- Environmental fit: Control-room duty, typically 0 to 55 °C.
