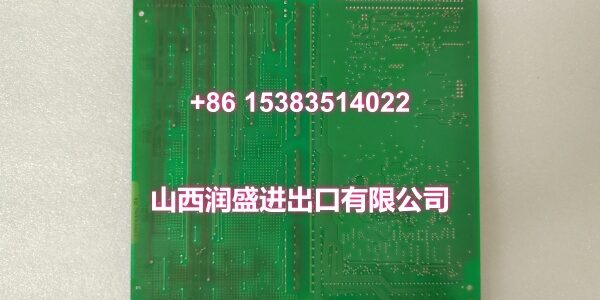

Product Core Brief
- Model: DSDO115A
- Brand: ABB
- Series: ABB Advant Master / S100 Series
- Core Function: Digital output module for converting DCS controller signals into field device control signals, driving actuators, relays, indicators, and alarm systems.
- Product Type: Digital Output Module
- Key Specs: 32 Channels | Relay/Transistor Output Options | Short-Circuit Protection | LED Status Indicators | Rack-Mount Form Factor | Comprehensive Self-Diagnostics
- Note: Condition: New Original (New Surplus). Origin: Sweden.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer Part Number | 3BSE018298R1 |
| Device Model | |
| Device Type | Digital Output Module |
| Series | ABB Advant Master / S100 Series |
| Function | Digital signal output to field devices |
| Output Channels | 32 independent digital output channels |
| Output Types | Relay contacts or short-circuit-proof transistor (varies by variant) |
| Relay Output Specs | Load current: max 3A at 24–250V AC/DC; Breaking capacity: AC max 720VA at cosΦ>0.4, DC max 44W at L/R<40ms |
| Transistor Output Specs | Max 500mA or 2A per channel (varies by variant), short-circuit-proof |
| Operating Temperature | Industrial-grade (typically 0°C to +55°C) |
| Cooling Method | Passive (air-cooled) |
| Mounting | Rack-mount (Advant Master / S100 backplane) |
| Features | LED status indicators per channel, comprehensive self-diagnostics, fault reporting |
| Typical Applications | Process control, power generation, oil & gas, chemical processing, manufacturing, robotics |
| Origin | Sweden |
| Condition | New Original (New Surplus) |
Product Introduction

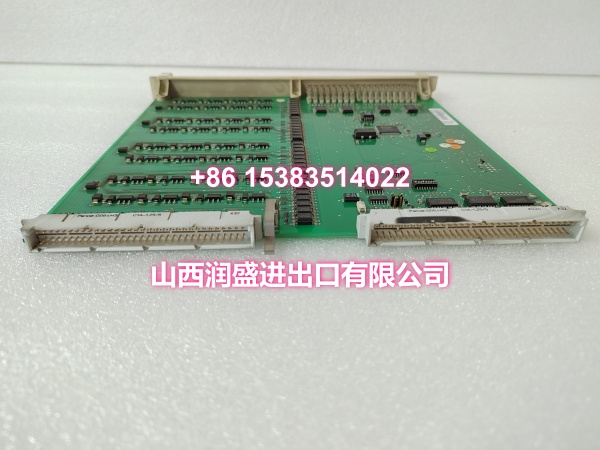

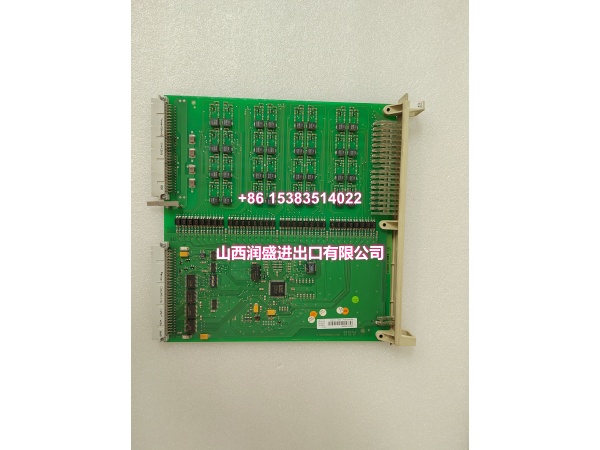

The ABB DSDO115A (order code 3BSE018298R1) is a 32-channel digital output module designed for ABB’s Advant Master and S100 distributed control systems. It serves as the critical interface between the DCS controller and field actuation devices, converting digital control signals from the controller into output signals that drive relays, contactors, solenoid valves, indicator lights, alarm systems, and other binary field devices.
In industrial automation environments, reliable digital output control is essential for executing process logic and ensuring safe plant operation. The DSDO115A features 32 independent output channels available in relay contact or short-circuit-proof transistor variants, providing flexibility to interface with a wide range of field devices. Relay output variants support load currents up to 3A at 24–250V AC/DC with breaking capacities of up to 720VA (AC) or 44W (DC), suitable for directly driving small contactors and solenoid valves. Transistor output variants offer fast switching response with built-in short-circuit protection, ideal for high-frequency control applications.
The module includes comprehensive self-diagnostics that continuously monitor output channel health. Any detected faults are reported via per-channel LED indicators on the module front panel and communicated to the operator station through alarm messages, enabling rapid fault identification and minimizing mean time to repair (MTTR). Faulty outputs can be automatically deactivated or driven to a predefined safe state, preventing unintended equipment operation during fault conditions.
As an “intelligent” S100 I/O module, the DSDO115A performs signal processing and data handling onboard rather than relying on the main controller’s CPU. This distributed processing architecture improves overall system real-time performance and reliability while maintaining processing capacity as the system scales.
For engineers maintaining legacy Advant Master or S100 installations, the DSDO115A is a direct drop-in replacement for failed or degraded digital output modules. Its standardized rack-mount form factor ensures compatibility with existing backplane configurations, avoiding costly mechanical rework or system redesign.
QA & Testing SOP
Every unit goes through a structured verification process before shipment:
- Visual Inspection: Check the module housing for cracks, corrosion on the backplane connector pins, and physical damage to the PCB. Verify that LED indicator lenses are intact and undamaged.
- Connector Pin Verification: Inspect the backplane connector pins for straightness, corrosion, or bending. Bent pins cause poor contact with the backplane, leading to intermittent channel failures or complete module communication loss.
- Channel Continuity Test: Using a multimeter or dedicated test fixture, verify that each of the 32 output channels responds correctly to controller commands. Confirm that LED indicators illuminate appropriately for each channel state.
- Relay Contact Test (Relay Variants): For relay output variants, verify that relay contacts open and close cleanly with proper contact resistance. Check that the relay breaking capacity meets specifications under load conditions.
- Short-Circuit Protection Test (Transistor Variants): For transistor output variants, verify that the short-circuit protection circuit activates correctly when an output channel is shorted, and that the channel recovers properly after the short is removed.
- Anti-Counterfeit & Packaging: Verify authenticity markings on the module body and PCB. Each unit is shipped in anti-static protective packaging with desiccant to prevent moisture absorption and connector oxidation during transit.
Installation Pitfalls & Guide
Installing or replacing a digital output module requires careful attention to wiring and electrical safety.
❗ Power-Down Before Installation: Always disconnect power to the rack or I/O section before removing or inserting the DSDO115A module. While some ABB S100 I/O modules support hot-swap in specific configurations, digital output modules should be replaced with power off to prevent transient spikes from damaging the module or connected field devices.
❗ Wiring Verification: Before connecting field wiring to the new module, verify that each wire is correctly labeled and corresponds to the documented channel assignment. Miswired output channels can cause unintended equipment operation, leading to safety hazards or process disruptions. Cross-reference the wiring diagram before making any connections.
❗ Load Current Verification: Verify that the connected field devices do not exceed the module’s per-channel and total current ratings. Overloading relay outputs can cause contact welding or premature failure. Overloading transistor outputs can trigger short-circuit protection or cause thermal damage.
❗ Inductive Load Protection: When driving inductive loads such as solenoid valves or relay coils, ensure that appropriate flyback diodes or snubber circuits are installed to suppress voltage spikes generated when the inductive load is de-energized. Without proper suppression, voltage spikes can damage the output channel or cause electromagnetic interference with other equipment.
❗ Shielded Cable Grounding: For field wiring runs exceeding 30 meters or passing through electrically noisy environments, use shielded cables with the shield grounded at the control cabinet end only. Grounding at both ends creates ground loops that can introduce noise into the output signals.
4-Step Replacement Guide:
- Pre-install: Document the existing channel assignments and wiring configuration. Back up the DCS project. Verify the replacement module’s part number (3BSE018298R1) and output type (relay or transistor) match the original. Prepare anti-static protection and tools.
- Removal: Disconnect power to the I/O rack. Wear an anti-static wrist strap. Disconnect all field wiring from the terminal block and label each wire with its channel number. Loosen the module retention screws. Gently pull the module straight out of the backplane slot. Inspect the backplane connector for damage.
- Install: Align the new DSDO115A’s connector with the backplane slot. Push firmly and evenly until fully seated. Tighten retention screws. Reconnect field wiring to the correct terminals according to the documented channel assignments. Verify that all connections are secure and properly torqued.
- Power-on Test: Apply power to the rack. Verify that the module’s status LED indicates normal operation. Enter the DCS diagnostic screen and confirm that all 32 channels are recognized with no fault codes. Test each channel by commanding an output state change from the DCS and verifying that the corresponding field device responds correctly. Monitor for several minutes to confirm stable operation.
Technical FAQ
1. What’s the difference between relay output and transistor output variants of the DSDO115A? Relay output variants use electromechanical relays that provide galvanic isolation between the control circuit and the load, supporting higher voltages (up to 250V AC/DC) and moderate currents (up to 3A). They’re suitable for driving contactors, solenoid valves, and indicator lights but have slower switching speeds and limited mechanical life. Transistor output variants use solid-state transistors that offer faster switching speeds, unlimited mechanical life, and built-in short-circuit protection, but support lower voltages and currents. The appropriate variant depends on your field device requirements.
2. Can the DSDO115A be used with ABB’s newer AC 800M or 800xA systems? The DSDO115A is designed for ABB’s Advant Master and S100 series systems. It is not directly compatible with newer platforms like AC 800M or 800xA, which use different backplane architectures and I/O module form factors (such as the S800 I/O system). If you’re migrating to a newer system, you’ll need to use the corresponding digital output modules designed for that platform.
3. What does “comprehensive self-diagnostics” mean for the DSDO115A? The DSDO115A continuously monitors the health of each output channel. For relay variants, it can detect open circuits, short circuits, and relay contact failures. For transistor variants, it detects overcurrent, short circuits, and thermal faults. Any detected faults are reported via per-channel LED indicators on the module front panel and communicated to the operator station through alarm messages. Faulty outputs can be automatically deactivated or driven to a predefined safe state to prevent unintended equipment operation.
4. Can the DSDO115A be configured in a redundant configuration? Yes. Some ABB S100 I/O modules, including certain digital output variants, can be configured in transparent dual-redundant configurations to improve system availability. In a redundant configuration, two modules operate in parallel, and if one module fails, the other seamlessly takes over without process interruption. Verify with your system configuration whether your specific DSDO115A variant supports redundant operation.
5. What’s the difference between New Surplus and Refurbished for digital output modules? We supply this unit as New Original (New Surplus)—unused, original factory stock. This comes with a standard 12-month warranty. Refurbished digital output modules carry risks including degraded relay contacts from previous switching cycles, weakened transistor output stages from prior overload events, and latent channel failures that may only manifest under specific load conditions. For a module that directly controls field equipment and process safety, new surplus is the safer choice.
