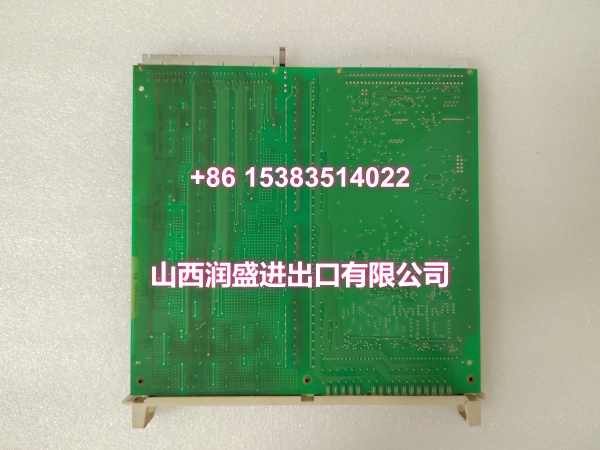

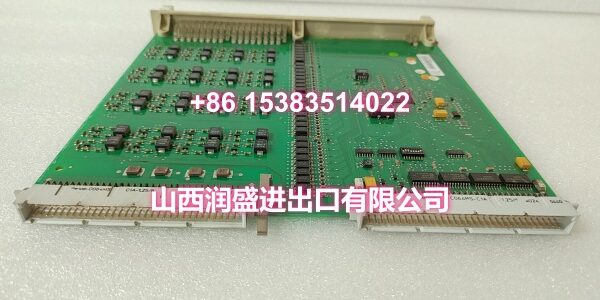

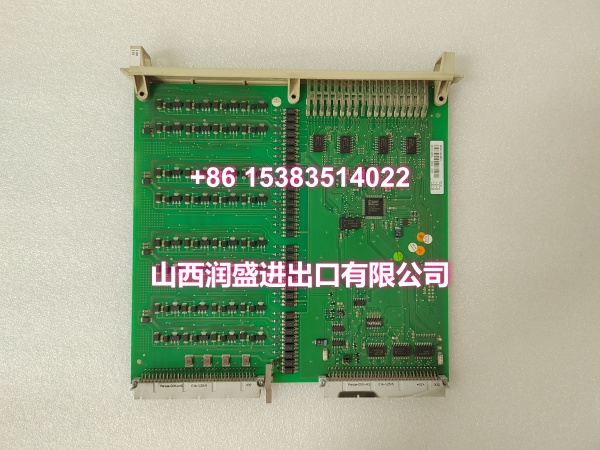

Product Core Brief

• Model: DSDI110AV1
• Brand: ABB
• Series: ABB Advant Master / S800 I/O Series
• Core Function: High-density digital input module that acquires 32 discrete 24VDC field signals (push-buttons, limit switches, proximity sensors, status contacts) and transmits them to ABB PLC/DCS controllers for process monitoring and control.
• Product Type: Digital Input Module / Isolated Digital Input Board
• Key Specs: 32 channels of 24VDC digital input | 500V AC galvanic isolation between field and system | Compatible with S800 I/O termination units | Wide operating temperature range | Modular plug-in design
• Condition: New Original / New Surplus

Key Technical Specifications

• Product Type: Digital Input Module for DCS/PLC Systems
• Brand: ABB
• Model Number:
• Order Code: 3BSE018295R1
• Series: ABB Advant Master / S800 I/O Series
• Input Channels: 32 discrete digital input channels (field channels) operating at 24V DC — high-density design reduces I/O rack space requirements
• Nominal Input Voltage: 24 V DC
• Input Current: 10 mA per channel
• Input Impedance: 10 kΩ
• Isolation: 500 V AC galvanic isolation between field side and system side — protects the controller from ground loops, voltage spikes, and electrical noise common in industrial environments
• Mounting Method: S800 I/O single-width module format — requires S800 termination unit (e.g., TU-series) for field wiring; drop-in replacement in compatible ABB DCS/PLC chassis
• Operating Temperature: -25°C to +60°C (-13°F to 140°F), suitable for harsh industrial environments
• Physical Dimensions: 234mm (depth) × 229.5mm (width) × 18mm (height), net weight approximately 0.332kg
• Environmental Rating: IP20 protection rating, suitable for indoor industrial control room environments
• Origin: Sweden / Switzerland
• Compatibility: ABB Advant Master series, S800 I/O systems, AC460 controllers, MasterPiece 200/200/1 systems, and 800xA I/O platforms
• Upgrade Path: Direct replacement for legacy DSDI 110 and DSDI 110A modules, providing a cost-effective migration path to 24VDC systems
• Typical Applications: Monitoring status of push-buttons, limit switches, and proximity sensors in process control systems; acquiring binary status contacts from motors, valves, and actuators; high-density digital signal acquisition in power generation, petrochemical, metallurgical, and manufacturing plants; serving as a critical spare part for lifecycle support of mature ABB Advant Master and S800 I/O installations; replacing legacy DSDI 110/110A modules during system upgrades

Product Introduction

The ABB DSDI110AV1 3BSE018295R1 is a 32-channel digital input module from ABB’s Advant Master / S800 I/O series, engineered to provide high-density, isolated acquisition of 24VDC field signals in industrial automation systems. As a core I/O component in ABB DCS and PLC architectures, the DSDI110AV1 is responsible for converting discrete field device states — push-buttons pressed, limit switches tripped, proximity sensors triggered, motor contactor status — into digital data that the controller can process for monitoring, interlocking, and control logic execution.

What sets the DSDI110AV1 apart in industrial applications is its combination of high channel density and robust galvanic isolation. With 32 input channels in a single-width S800 module footprint, it significantly reduces I/O rack space compared to lower-density alternatives — a critical advantage in control cabinets where space is at a premium. The 500V AC galvanic isolation between field wiring and the system backplane breaks ground loops and shields the controller from voltage transients on field cables, ensuring stable signal acquisition even in electrically noisy environments typical of power plants, petrochemical facilities, and heavy manufacturing.

For system integrators and MRO procurement teams maintaining ABB Advant Master or S800 I/O systems, the DSDI110AV1 is a high-priority spare part. Digital input failures can mask critical field device states — a limit switch that fails to report “valve closed” or a motor contactor that fails to report “running” can lead to safety incidents, process upsets, or unplanned shutdowns. The DSDI110AV1’s modular plug-in design means replacement is a straightforward swap with no rewiring at the module level (field wiring terminates at the TU-series termination unit), allowing maintenance teams to restore I/O functionality quickly during a maintenance window.

As a direct upgrade replacement for legacy DSDI 110 and DSDI 110A modules, the DSDI110AV1 provides a cost-effective migration path for plants extending the lifecycle of mature ABB installations while maintaining reliable digital signal acquisition. Having verified genuine DSDI110AV1 modules on hand ensures continuity of critical I/O links and reduces the risk of production disruptions caused by digital input board failures.



QA & Testing SOP

Every unit undergoes a standardized verification process before shipment:

• Visual & Anti-Counterfeit Check: Inspect the module housing for proper ABB branding and part number marking (DSDI110AV1, 3BSE018295R1). Check for physical damage including cracked PCB, damaged connector pins, burnt components, or signs of moisture ingress (corrosion, white residue on contacts).
• Connector Pin Inspection: Examine the backplane connector pins and termination unit interface pins for straightness, corrosion, or bending. Bent pins can cause intermittent connections or short circuits when inserted into the S800 chassis or TU-series termination unit.
• Backplane Power Test: Insert the module into a test ABB S800 chassis and verify that it correctly draws power from the backplane with no abnormal current draw or voltage drop.
• Channel Continuity Test: Apply 24VDC to each of the 32 input channels individually and verify that the module correctly reports the input state to the test controller. Confirm no cross-talk between adjacent channels.
• Isolation Voltage Test: Apply a test voltage between the field side and system side to verify that the 500V AC galvanic isolation specification is met, confirming that field-side transients cannot reach the controller backplane.
• Input Threshold Test: Verify that each channel correctly registers ON/OFF states at the specified input voltage thresholds, confirming reliable switching behavior across the full 24VDC operating range.
• Temperature Cycling (sample-based): Subject sample units to temperature cycling between -25°C and +60°C to verify stable operation across the full specified operating temperature range.
• Anti-Static & Mechanical Protection: After passing all tests, the module is placed in anti-static shielding with protective caps on connectors. It is then packed in rigid cardboard with foam cushioning to prevent mechanical shock and ESD damage during transit.

Installation Pitfalls & Guide

Real-World Risks When Replacing This Module:

❗ Termination Unit Mismatch: The DSDI110AV1 requires an S800 TU-series termination unit for field wiring — it cannot be wired directly. If the existing termination unit is damaged, incompatible, or wired for a different module type, the new DSDI110AV1 will not function correctly. Always verify that the TU-series termination unit matches the DSDI110AV1 requirements before installation.

❗ Incorrect Channel Mapping: When replacing a failed DSDI110AV1, the controller’s I/O configuration must match the physical channel assignments. If the module is installed in a different slot than the original, or if the I/O map has been modified since the last backup, input states will be misread by the controller. Always verify the slot position and I/O configuration against the latest system documentation before commissioning.

❗ Field Wiring Polarity: While 24VDC digital inputs are typically polarity-insensitive for simple switch contacts, some field devices (e.g., proximity sensors with electronic outputs) require correct polarity. Verify wiring polarity against the field device specifications before applying power.

❗ Ground Loop Risks: Although the DSDI110AV1 provides 500V AC galvanic isolation, improper grounding of field cable shields can still introduce noise. For field cables running through electrically noisy areas, connect the cable shield to ground at one end only (typically the controller end) to avoid ground loops.

❗ Hot-Swap Risk: While S800 I/O modules are designed for hot-swapping in many ABB systems, removing or inserting the DSDI110AV1 while the system is powered can cause momentary input state changes that may trigger interlocks or alarms in the control logic. Always follow the manufacturer’s hot-swap procedure — if uncertain, schedule the replacement during a planned maintenance window and notify operations before proceeding.

❗ Legacy Module Compatibility: The DSDI110AV1 is a direct replacement for DSDI 110 and DSDI 110A modules, but verify that the controller firmware and I/O configuration support the AV1 variant before installation. In most cases, the replacement is transparent, but some older firmware versions may require a configuration update.

4-Step Replacement Guide:

1. Pre-Install: Identify the failed module slot and document the existing configuration (slot position, I/O map, field wiring connections at the TU termination unit). Back up the current controller I/O configuration. If possible, schedule the replacement during a planned maintenance window and notify operations of potential input state changes.
2. Removal: If hot-swap is supported per the system documentation, follow the proper hot-swap procedure. Otherwise, power down the S800 chassis. Disconnect field wiring from the TU-series termination unit (not from the module itself — field wiring terminates at the TU). Release the module locking mechanism and carefully slide the old DSDI110AV1 out of the chassis slot. Inspect the backplane connector for damage or debris.
3. Install: Insert the new DSDI110AV1 module into the correct chassis slot, ensuring proper alignment with the backplane connector. Secure the module with the locking mechanism. Verify that the TU-series termination unit is correctly wired and seated. Double-check that field wiring connections at the TU match the I/O documentation.
4. Power-On Test: Power up the chassis (if it was shut down). Verify that the module powers up correctly from the backplane. Check the controller for any I/O fault codes related to the digital input module. Test each input channel by activating the corresponding field device (press push-buttons, trip limit switches, trigger proximity sensors) and verify that the controller correctly reads the input state. Monitor the system for stable operation before returning to full production.



Technical FAQ

What is the difference between the DSDI110AV1 and the DSDI 110/110A? The DSDI110AV1 (3BSE018295R1) is the upgraded replacement for the legacy DSDI 110 and DSDI 110A digital input modules. It provides the same 32-channel 24VDC digital input functionality with improved isolation performance and reliability. The replacement is designed to be transparent in most ABB Advant Master and S800 I/O installations — no rewiring or configuration changes are typically required.

Can the DSDI110AV1 be used in hazardous area applications? The DSDI110AV1 is designed for indoor industrial control room environments (IP20 rating). For hazardous area applications (Zone 1/Zone 2), field devices must be connected through appropriate intrinsic safety barriers or isolators installed in the field or at the termination unit. The module itself is not certified for direct installation in hazardous areas.

What are common failure modes for this module? Common failure modes include: backplane connector pin damage from repeated insertion/removal; input channel failure due to voltage transients on field wiring (especially if external surge protection is not installed); PCB trace corrosion from moisture ingress in humid environments; and isolation degradation over time reducing the effectiveness of galvanic isolation. In most cases, a failing DSDI110AV1 will report incorrect input states or complete channel failure, which the controller will flag as an I/O fault.

Is the DSDI110AV1 compatible with ABB 800xA systems? Yes, the DSDI110AV1 is compatible with ABB 800xA I/O platforms as part of the S800 I/O product family. It can be used in both legacy Advant Master migrations and new 800xA installations that utilize S800 I/O. Always verify compatibility with your specific controller model and firmware version before ordering.

What warranty do you offer on New Surplus parts? We provide a full 12-month warranty on all New Original / New Surplus units. This is fundamentally different from refurbished or pulled modules, which often carry 30–90 day warranties and come with unknown operational history, potential connector wear, and degraded isolation performance. For a digital input module that monitors critical field device states, the reliability difference between new surplus and refurbished directly impacts process visibility and the risk of undetected field device failures.
