Product Core Brief
- Model: 3BHE019719R0101 (GVC736BE101)
- Brand: ABB
- Series: ABB Power Semiconductors / Medium Voltage Drive Components
- Integration Role: High-power semiconductor switching device for power conversion, motor drive control, and industrial power regulation applications.
- Product Type: SCR (Silicon Controlled Rectifier) / Thyristor Power Module
- Key Specs: High Voltage/Current Rating | Fast Response | Overcurrent & Thermal Protection
- Note: Condition: New Original (New Surplus). Origin: Sweden.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer Part Number | 3BHE019719R0101 |
| Device Model | |
| Device Type | SCR / Thyristor Power Module |
| Primary Application | Motor Control, Power Rectification/Inversion, Heating Systems |
| Key Characteristics | High Power Handling, Fast Switching Response, Thermal Protection |
| Protection Features | Overcurrent, Short Circuit, Over-Temperature Protection |
| Operating Environment | Industrial-grade, High Temperature/Vibration Resistant |
| Origin | Sweden |
| Condition | New Original (New Surplus) |
Product Introduction

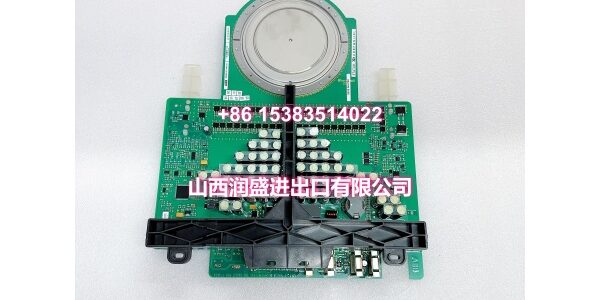

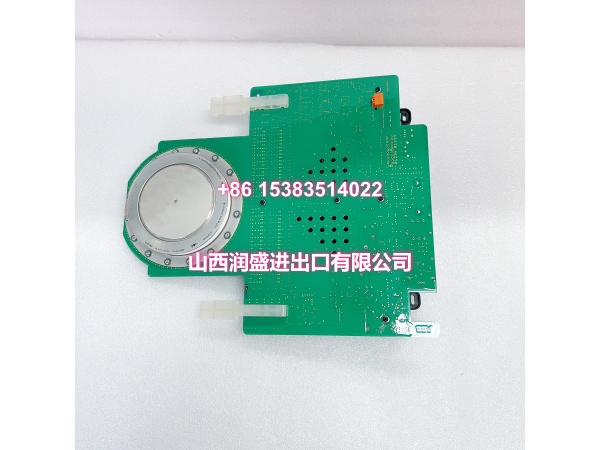

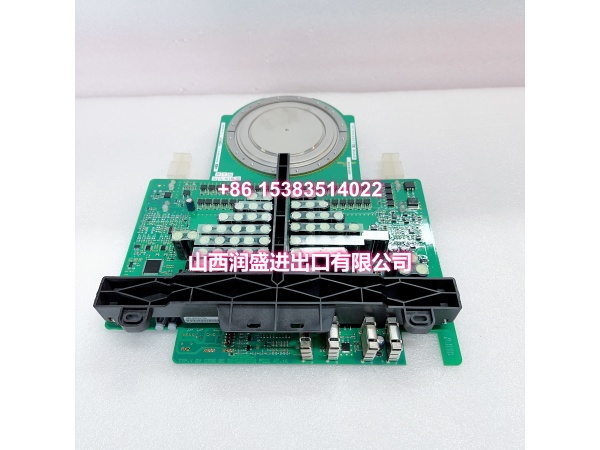

The ABB 3BHE019719R0101 (GVC736BE101) is a high-performance SCR (Silicon Controlled Rectifier) / Thyristor power module designed for demanding industrial power control applications. As a power semiconductor device, it serves as a critical component for controlling the flow of high-power electrical current in AC circuits, enabling precise regulation of voltage, current, and power delivery.
This module is engineered for integration into ABB’s medium-voltage drive systems, power rectification/inversion equipment, and industrial process control systems. Its robust construction features advanced thermal management, high-voltage insulation, and built-in protection mechanisms (overcurrent, short circuit, and over-temperature) to ensure reliable operation in harsh industrial environments such as metallurgy, mining, petrochemical, and power generation facilities.
For system integrators and maintenance engineers, this module provides the high-current handling capability and fast switching response needed for applications ranging from large motor soft-start control to precision heating system regulation. Its modular design facilitates straightforward replacement and system integration, minimizing downtime during maintenance or upgrade projects.
Integration & Application Notes
As a power semiconductor device, proper integration requires attention to electrical, thermal, and safety considerations.
- System Compatibility: This module is designed for ABB power electronics platforms. Verify your host system’s voltage/current ratings, gate drive requirements, and mechanical mounting specifications before installation.
- Gate Drive Requirements: SCR/thyristor devices require specific gate trigger voltage and current profiles for reliable turn-on. Ensure your gate drive circuit matches the device specifications to avoid misfiring or incomplete turn-on, which can lead to device failure.
- Thermal Management: Adequate heatsinking and cooling are critical for power semiconductor longevity. Verify that the thermal interface material is properly applied and the cooling system (forced air or liquid) is functioning within specification. Monitor junction temperature during operation.
- Snubber Circuit: Ensure the snubber circuit (RC absorption network) is properly configured to protect the device from voltage transients (dv/dt) during switching. Undersized snubber components can lead to premature device failure.
- Series/Parallel Operation: If your application requires series or parallel connection of multiple devices, ensure proper voltage/current balancing through matched device parameters and appropriate balancing circuits.
- Safety Precautions: This is a high-power device handling significant voltage and current. Always follow strict Lockout/Tagout (LOTO) procedures, verify DC bus discharge, and confirm zero voltage before handling. Wear appropriate PPE including insulated gloves and ESD protection.
Integrator’s FAQ
1. What is the difference between SCR, IGCT, and IGBT, and which does this module use? This module is classified as an SCR (Silicon Controlled Rectifier) / Thyristor device. SCR/thyristor devices are line-commutated (they turn off when the AC current crosses zero), making them ideal for phase-angle control applications like heating regulation and soft-start motor control. IGCT (Integrated Gate Commutated Thyristor) devices can be actively turned off by the gate, enabling higher switching frequencies for inverter applications. IGBT (Insulated Gate Bipolar Transistor) devices offer the fastest switching speeds but typically at lower voltage/current ratings. The choice depends on your application’s switching frequency, voltage, and current requirements.
2. Can this module be used for motor soft-start applications? Yes. SCR/thyristor modules are commonly used for three-phase motor soft-start control. By controlling the conduction angle of the thyristors, the module gradually increases the voltage applied to the motor, reducing inrush current and mechanical stress during startup. This is particularly valuable for large motors in conveyor systems, crushers, pumps, and other high-inertia loads.
3. What are common failure modes for this type of power module? Common failure modes include:
- Thermal runaway: Insufficient cooling or blocked heatsinks cause junction temperature to exceed limits, leading to permanent damage.
- Overvoltage transients: Voltage spikes from the grid or switching events exceed the device’s blocking voltage rating, causing avalanche breakdown.
- Gate drive failure: Incorrect gate trigger signals cause incomplete turn-on, leading to excessive conduction losses and overheating.
- Short circuit: Downstream faults cause current to exceed the device’s surge rating before protection circuits can respond. Regular inspection of cooling systems, snubber circuits, and gate drive waveforms can help prevent these failures.
4. Is this part still available from ABB, and what is the successor? The GVC736BE101 (3BHE019719R0101) is a legacy component used in existing ABB power electronics installations. While ABB continues to support these systems, direct OEM lead times can be lengthy. Sourcing New Surplus units is a standard industry practice to maintain critical assets without undergoing a costly retrofit to newer platforms.
5. What is the warranty difference between New Surplus and Refurbished? We supply this unit as New Original (New Surplus), meaning it is unused, original factory stock from Sweden, typically still in its anti-static packaging. This comes with a standard 12-month warranty. “Refurbished” power semiconductors carry significant risks: microscopic cracks in the silicon die, degraded thermal interfaces from previous thermal cycling, or prior over-stress events that are not visible externally. Refurbished units often carry short, limited warranties (30-90 days) that do not cover latent defects.
6. Why is the pricing lower than direct OEM but higher than used parts? Our pricing reflects the value of guaranteed, unused condition. Unlike used parts from general marketplaces—which may have unknown operational hours, undocumented thermal cycling history, or hidden damage—our New Surplus inventory is verified for authenticity and Swedish origin. You avoid the premium of custom OEM manufacturing for legacy parts while securing a component that performs like new, minimizing the risk of unplanned downtime in critical power conversion applications.
