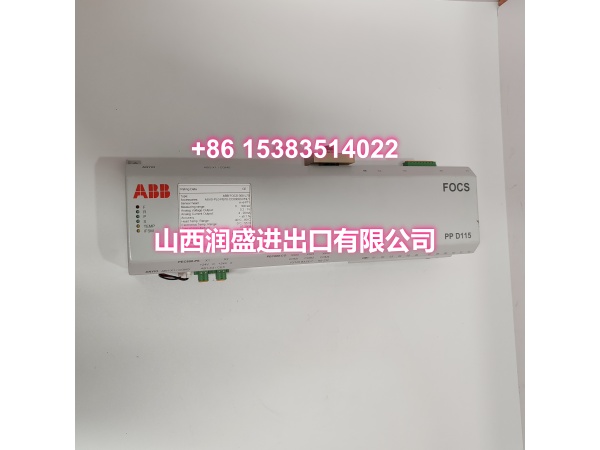

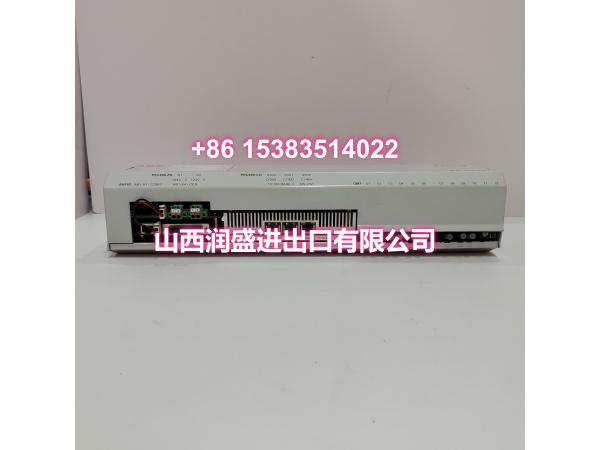

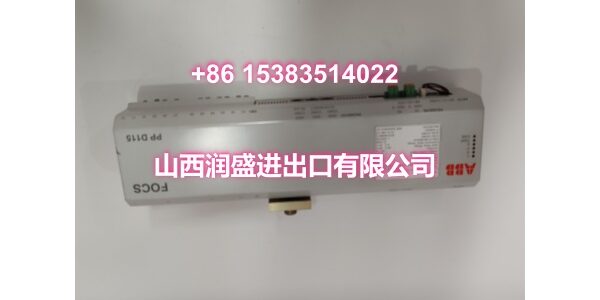

Product Core Brief

• Model: 3BHE017628R0002 / PPD115A02 / SG579989013
• Brand: ABB
• Series: ABB Excitation System / Fieldbus Optical Communication System (FOCS) Components
• Integration Role: Serves as an excitation controller and drive control unit, providing high-precision control, monitoring, and multi-protocol fieldbus communication for generator excitation systems and industrial drive applications.
• Product Type: Excitation Controller / Drive Control Unit
• Key Specs: Multi-protocol communication (Profibus DP, Modbus, Ethernet) | Dual power input (230V AC / 24V DC) | Industrial temperature range (-20°C to +60°C) | IEC 61508 SIL 2 compliant
• Note: Condition: New Original (New Surplus)

Key Technical Specifications

• Product Type: Excitation Controller / Drive Control Unit
• Brand: ABB
• Model Number: 3BHE017628R0002 / PPD115A02 / SG579989013
• Primary Function: Excitation control for generator systems; drive control and fieldbus communication interface for industrial automation
• Communication Protocols: Profibus DP (Master/Slave, 9.6 kbps–12 Mbps), Modbus RTU/TCP, Canopen (5 kbps–1 Mbps), EtherNet/IP (10/100 Mbps auto-adaptive), Profinet (optional)
• Communication Interfaces: 2 optical SFP slots (multi-mode/single-mode, LC/SC compatible); 2× RS-485; 1× Ethernet (RJ45); 1× Canopen (DB9)
• Transmission Distance: Optical fiber: 2 km (multi-mode) / 20 km (single-mode); RS-485: up to 1,200 m; Ethernet: up to 100 m
• Operating Voltage: Dual-power input — 230V AC (±10%) and 24V DC (±15%), with automatic switchover
• Power Consumption: ≤ 30 W (normal operation); ≤ 50 W (maximum load)
• Control Signal: 24V DC, 50 mA max
• Operating Temperature: -20°C to +60°C (some sources specify -20°C to +55°C — verify against your cabinet rating)
• Relative Humidity: 5%–95% (non-condensing)
• Protection Level: IP54 (front panel); IP20 (backplane)
• Compliance: IEC 61508 SIL 2; EN 60947; EN 61000-6-2 (industrial EMC immunity)
• Dimensions: 160 mm × 140 mm × 110 mm
• Weight: Approximately 2.5 kg
• CPU & Memory: High-performance CPU with sufficient non-volatile memory for control programs and data logging
• PCB Protection: Conformal coating (moisture-proof, salt spray-proof, mildew-proof)

Product Introduction

The ABB 3BHE017628R0002 (PPD115A02, SG579989013) is an excitation controller and drive control unit designed for generator excitation systems and industrial drive applications. It integrates high-precision control logic, multi-protocol fieldbus communication, and comprehensive self-diagnostic capabilities into a single compact module.

This unit is commonly deployed in power generation plants, chemical processing facilities, and heavy industrial automation systems where reliable excitation control and real-time data exchange are critical. The module supports dual power input (230V AC / 24V DC) with automatic switchover, ensuring uninterrupted operation during supply transitions. Its conformal-coated PCB and wide industrial temperature range (-20°C to +60°C) make it suitable for harsh environments including metallurgy, chemical, and power plant installations.

Integrators and maintenance engineers specify this module for its IEC 61508 SIL 2 compliance, encrypted safety-related data transmission, and flexible expansion options. The optical fiber interfaces enable long-distance, noise-immune communication across distributed control architectures — a key requirement in large-scale generator and drive systems.

Wiring & Backplane Integration Notes

• Power Supply Verification: This module accepts dual power input (230V AC ±10% and 24V DC ±15%). Confirm your cabinet’s power distribution matches the rated input before energizing. The automatic switchover between AC and DC sources ensures continuity, but both supplies must be properly regulated and within tolerance.
• Communication Interface Selection: The module provides multiple communication options — optical SFP slots, RS-485, Ethernet (RJ45), and Canopen (DB9). Select the appropriate interface based on your system architecture. For long-distance or electrically noisy environments, prefer optical fiber (up to 20 km single-mode) to avoid ground loop interference.
• Fieldbus Configuration: When using Profibus DP, Modbus, or Canopen, verify the baud rate, node address, and termination settings in your engineering tool before commissioning. A mismatched baud rate or duplicate node address will cause communication faults across the entire bus segment.
• Grounding & Shielding: The module chassis must be bonded to the cabinet ground per ABB’s installation procedure. Communication cables (especially RS-485 and Ethernet) must be shielded and grounded at one end only to prevent ground loops. Poor grounding is the most common cause of intermittent communication errors in industrial fieldbus networks.
• Mechanical Mounting: The module measures 160 × 140 × 110 mm and weighs approximately 2.5 kg. Ensure adequate clearance around the unit for heat dissipation and verify all mating connectors are fully seated before applying power. The PCB is conformal-coated, but avoid exposing the front panel connectors to direct moisture or corrosive gases.
• Compatibility: This module is used in ABB excitation systems and drive control cabinets. Always cross-reference the full part number (including the SG579989013 reference) against your system’s spare parts list, as revision-specific variants may not be interchangeable.

Integrator’s FAQ

Can I hot-swap this excitation controller in a live generator system? No. Excitation controllers are safety-critical components in generator systems. Replacing this module while the generator is online can cause loss of excitation control, leading to voltage instability, generator trip, or equipment damage. Always follow your plant’s lockout/tagout procedure: de-energize the excitation system, verify the generator is offline and safely discharged, and then replace the module. Coordinate with your operations team to schedule the replacement during a planned outage.

What happens if this module fails in a live excitation system? If the excitation controller fails, the generator will lose its field excitation control. Depending on the system configuration, this may trigger an automatic generator trip to protect the unit from under-excitation or over-excitation damage. In redundant excitation systems, the backup controller should take over automatically — verify your system’s redundancy configuration. In non-redundant setups, a failed module requires immediate replacement to restore generator operation.

Will I lose configuration or control parameters when replacing this unit? Configuration and control parameters for ABB excitation controllers typically reside in the module’s non-volatile memory. Before replacing the unit, back up the existing configuration using ABB’s engineering tool (e.g., DriveWindow or the specific excitation system software). After installing the replacement, restore the configuration from backup or manually re-enter the parameters. Always verify the firmware revision matches your system’s requirements — a mismatch can cause compatibility issues.

Is this module still available, or is there a direct successor? The 3BHE017628R0002 / PPD115A02 remains available through surplus and distribution channels. ABB has not published a widely documented direct successor for this specific excitation controller variant. If your excitation system is being migrated to a newer ABB platform (e.g., Unitrol series), consult ABB’s migration documentation for the equivalent controller module in the target system.

What warranty do you offer on New Surplus parts? We provide a full 12-month warranty on all New Original / New Surplus units. This is fundamentally different from refurbished excitation controllers, which often carry 30–90 day warranties and come with unknown thermal cycling history, aged capacitors, and degraded communication circuitry. For critical generator excitation systems, the cost of an unexpected controller failure — measured in unplanned generator outage and potential equipment damage — far exceeds any upfront savings from a used part.

Why is your pricing lower than OEM direct but higher than used parts? Our pricing reflects New Original / New Surplus inventory sourced from factory overstock and authorized distributors. You pay less than OEM list because these are surplus units, not current production. You pay more than used/refurbished because the part has zero operating hours, no thermal aging on internal components, and no degradation of the conformal coating or connector contacts. For mission-critical excitation control applications, the reliability difference between new surplus and refurbished is not marginal — it’s the difference between planned maintenance and an emergency generator trip.
