Product Core Brief
- Model: IS220PDIAH1B
- Brand: General Electric (GE)
- Series: Mark VIe (Speedtronic)
- Core Function: PDIA (Process Discrete Input) module — provides 24 isolated discrete contact input channels for reading field device status signals in gas/steam turbine control and industrial process applications.
- Product Type: PDIA Discrete Input Module (I/O Pack)
- Key Specs: 24 discrete contact inputs | Dual redundant Ethernet (IONet) | 24VDC power | TMR redundancy support | Hazardous location rated | Conformal coated
- Condition: New Original / New Surplus
Product Introduction

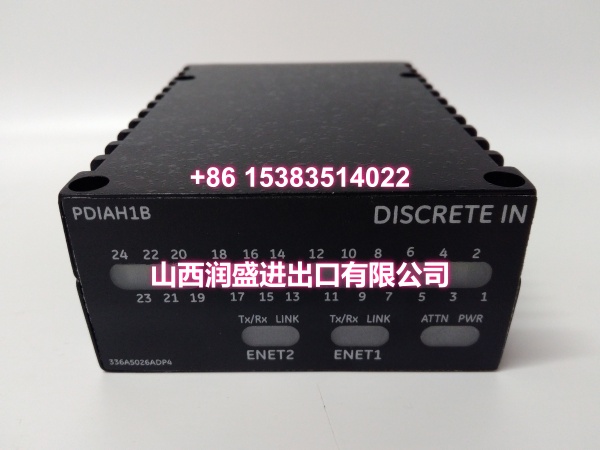

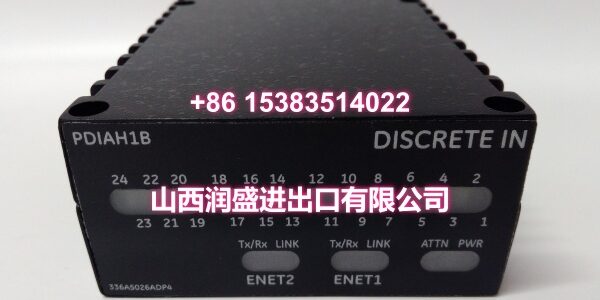

The GE IS220PDIAH1B is a PDIA (Process Discrete Input) module in GE’s Mark VIe Speedtronic control system, serving as the critical interface for acquiring discrete contact input signals from field devices such as limit switches, pressure switches, pushbuttons, relay contacts, and proximity sensors. It converts field contact closure signals into digital data that the Mark VIe controller can process for logic control, safety interlocking, and turbine protection functions.
The module provides 24 discrete contact input channels, each electrically isolated from the others and from the module’s internal circuitry. This isolation protects the Mark VIe controller from voltage spikes, ground loops, and electrical noise that can occur in industrial environments — particularly important when reading signals from field devices located far from the control cabinet. The module connects to a compatible terminal board via a DC-62 pin connector, which routes the field wiring to screw terminals for easy installation and maintenance.

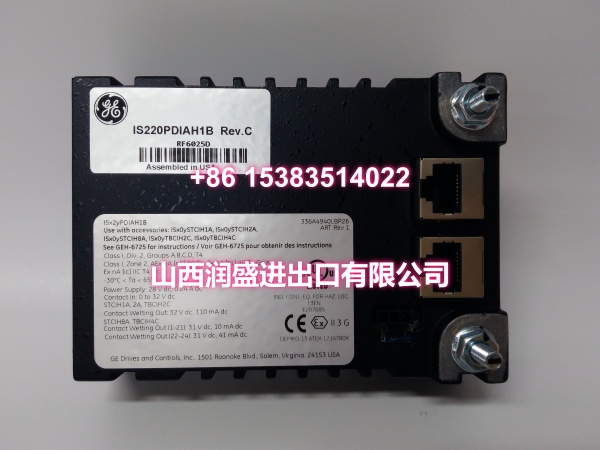

The IS220PDIAH1B communicates with the Mark VIe processor (such as the UCSAH or UCSBH series) via dual redundant 10/100Mbps Ethernet ports (IONet), ensuring that input data continues to reach the controller even if one network cable fails. The module is approved for use in hazardous locations (Class 1, Division 2, Groups A, B, C, D, T4) when paired with compatible terminal boards, making it suitable for installation in turbine enclosures and other areas where flammable gases or vapors may be present.
The module supports two terminal board configurations:
- STCI terminal board — for simplex (single-pack) applications
- TBCI terminal board — for TMR (Triple Modular Redundant) applications
In turbine applications, the PDIA module is commonly used for:
- Reading turbine trip switch status and overspeed detection signals
- Monitoring vibration switch and bearing temperature switch inputs
- Reading valve position feedback signals (limit switches on fuel valves, steam valves)
- Monitoring auxiliary equipment status (cooling fans, heaters, lube oil pumps)
- Reading flame detector status signals in combustion monitoring
- Monitoring pressure switch and flow switch status for safety interlocks
The module supports Triple Modular Redundant (TMR) operation — when three PDIA modules are configured in a TMR arrangement on a TBCI terminal board, they vote on input states to provide fault-tolerant operation. If one module reads an input incorrectly, the other two outvote it, preventing spurious trips or missed safety signals.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | General Electric (GE) |
| Product Type | PDIA Discrete Input Module (I/O Pack) |
| Series | Mark VIe (Speedtronic) |
| Input Channels | 24 discrete contact inputs |
| Input Voltage Range | 0 to 32 VDC |
| Communication | Dual redundant 10/100Mbps Ethernet (RJ45, IONet) |
| Terminal Board Interface | DC-62 pin female connector |
| Power Input | 24VDC |
| Redundancy | Simplex (STCI) and TMR (TBCI) supported |
| Operating Temperature | -30°C to +65°C |
| Hazardous Rating | Class 1, Div. 2, Groups A-D, T4; ATEX Zone 2 |
| Conformal Coating | Yes (for harsh environment protection) |
| Certifications | CE, UL Listed (E207685), ATEX |
| Application | Turbine protection input, switch status monitoring, safety interlock input, flame detection |
| Origin | USA |
Quality Control Process
Every IS220PDIAH1B goes through a full functional bench test before it ships. We start with a visual PCB inspection — checking for cold solder joints, burnt traces, swollen capacitors, and verifying the integrity of the DC-62 pin connector and both RJ45 Ethernet jacks. We also inspect the conformal coating for any cracks or peeling that could compromise environmental protection.
Then we power it up on a regulated 24VDC supply and verify the power draw is within spec. We test each of the 24 discrete input channels by applying a known contact closure signal (simulating a field switch) and confirming the module correctly reads the input state via IONet. We verify the input voltage range by testing at 0V, 12V, 24V, and 32V, confirming the module correctly interprets each level.
We test both Ethernet ports by connecting to a network switch and confirming link/activity LEDs illuminate on each port, then verifying the module registers on the IONet with its correct hardware ID. We test the redundant communication function by disconnecting one Ethernet cable and confirming the module continues to communicate over the remaining link without data loss. We verify the TMR voting function by connecting three PDIA modules together on a TBCI terminal board and confirming they vote correctly on input states. We run a cycle test by rapidly opening and closing each input for several hundred cycles, monitoring for timing jitter or missed readings. We also verify the isolation between channels by measuring resistance between adjacent input channels and between inputs and module ground. Finally, we confirm the module is compatible with both STCI and TBCI terminal boards by performing a physical connection test. Each unit ships in anti-static foam with a moisture barrier bag.
Replacement Pitfall Guide
❗ Verify the terminal board compatibility before installation. The IS220PDIAH1B must be paired with either an STCI terminal board (for simplex applications) or a TBCI terminal board (for TMR applications). Using an incompatible terminal board can result in incorrect wiring pinouts, potentially causing input signals to be misread — which could trigger an unintended turbine trip or fail to detect a critical safety condition. Always confirm the terminal board model matches the PDIA module specification.
❗ Confirm the input channel configuration matches your application. The PDIA module’s input channels are configured in the ToolboxST software. If the replacement module’s channel configuration doesn’t match the original (e.g., different channel assignments or different filtering settings), the controller may read the wrong inputs or misinterpret signal states. After installing the replacement, verify the input configuration in ToolboxST matches your application’s I/O map.
❗ Check the TMR voting configuration if applicable. If the PDIA module is part of a TMR arrangement on a TBCI terminal board, all three modules must be properly configured as voting members. If the replacement is configured as a simplex unit, it will not participate in the voting logic, leaving your system without input redundancy. Verify the TMR configuration in ToolboxST after installation.
❗ Don’t skip the input functional test. After installing the replacement, test each input channel by actuating the connected field device (switch, sensor) and confirming the module reads the correct state via IONet. A module that communicates correctly but fails to read inputs is a safety hazard — particularly for critical functions like turbine trip or overspeed protection.
❗ Verify the isolation integrity. The PDIA module’s input isolation is critical for protecting the Mark VIe controller from field-side electrical faults. After installation, verify that there is no continuity between input channels and between inputs and the module ground. Compromised isolation can allow field-side voltage spikes to damage the controller or other I/O modules.
❗ Watch for Ethernet cable routing issues. The dual Ethernet ports provide redundant communication, but both cables must be routed through separate physical paths to provide true redundancy. If both cables run through the same cable tray and that tray is damaged, you lose both communication paths simultaneously. Route the primary and backup Ethernet cables through separate conduits or cable trays.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor Model | Compatibility Level | Migration Notes |
|---|---|---|---|
| IS220PDIAH1C | Direct | Later revision; drop-in compatible | |
| IS220PDIAH1A | Direct | Earlier revision; verify firmware match | |
| IS220PDIIH1B | Functional Equivalent | PDII is the updated version of PDIA | |
| IS420PDIAH1B | Needs Adaptation | Mark VIeS variant; requires I/O network migration |
- Input Channels: 24 discrete contact inputs with electrical isolation
- Redundancy: Simplex (STCI) and TMR (TBCI) supported
- Communication: Dual Ethernet ports for redundant IONet connectivity
Need me to pull up the specific STCI/TBCI terminal board models and the Mark VIe processor modules this PDIA integrates with? The terminal board matching and TMR voting configuration are critical for reliable input operation.
