Product Core Brief

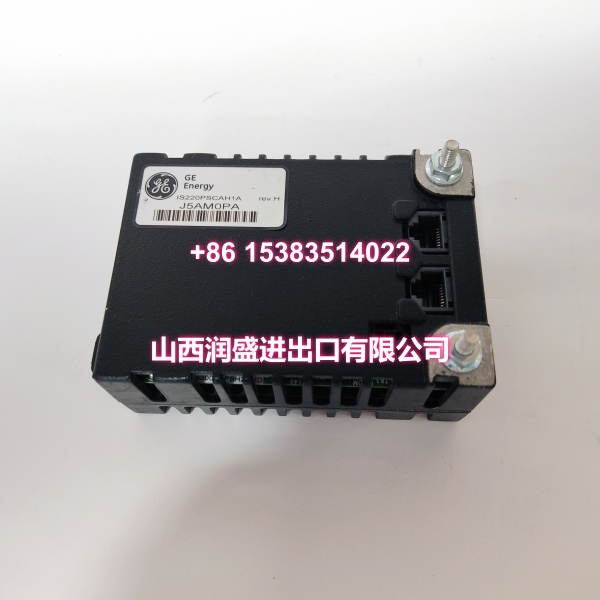

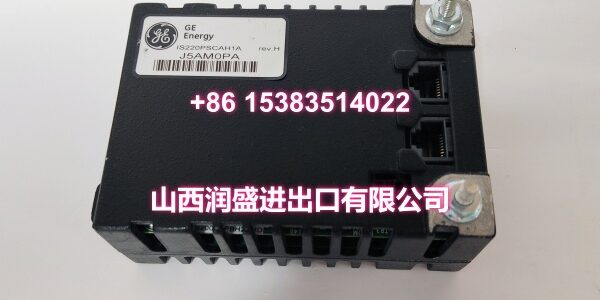

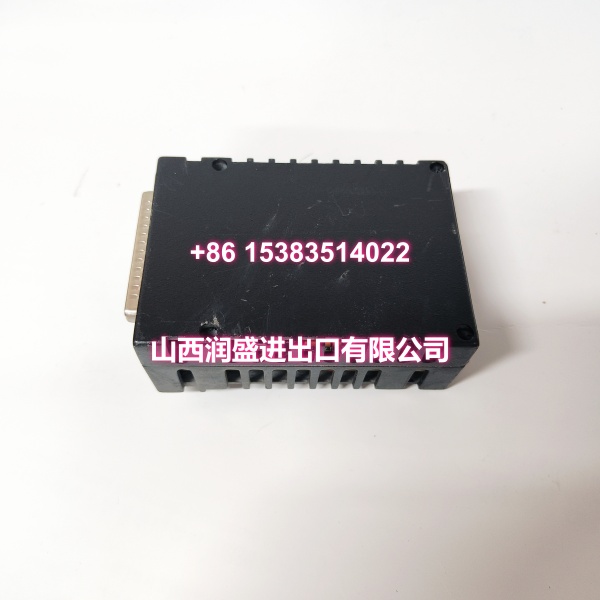

• Model: IS220PSCAH1A
• Brand: GE (General Electric)
• Series: Speedtronic Mark VIe — Serial Communication I/O Pack (PSCA)
• Core Function: Serial Modbus communication gateway between Mark VIe IONet Ethernet and field serial devices, supporting up to 6 configurable serial channels.
• Product Type: Serial Communication I/O Module
• Key Specs: 6 configurable serial transceiver channels (RS485 half-duplex, RS232, RS422) | Modbus RTU master service | Dual IONet Ethernet (RJ45) | Self-diagnostics with alarm monitoring | ToolboxST configurable
• Condition: New Original / New Surplus

Product Introduction

The GE IS220PSCAH1A is a serial communication I/O module from GE’s Mark VIe Speedtronic turbine control series. Designed for both gas and steam turbine applications, it serves as the critical interface between the Mark VIe controller’s dual IONet Ethernet network and field serial devices that communicate via Modbus protocol.

This module provides six individually configurable serial transceiver channels, each independently configurable for RS485 half-duplex, RS232, or RS422 standards at the port level. The onboard Modbus RTU master service supports configurable data bits (7 or 8), 32-bit data word ordering, parity (even, none, odd), and station address settings. Additionally, the two Ethernet ports on the PSCA module can support the Ethernet Modbus master protocol when used on a simplex network.

The module features built-in self-diagnostics that monitor analog inputs, position, and pressure signals against configurable high and low limits. These limits are used to enable/disable functions, latch/unlatch conditions, and generate alarms. Common alarm ranges include 32–67, 108–113, 114–119, and 72–107, each indicating specific error conditions. The module runs on the QNX operating system and is configured via ToolboxST/ControlST Toolbox.

Key Technical Specifications

Quality Control Process

Every IS220PSCAH1A module goes through a four-stage bench check before shipping. First, a visual inspection under magnification checks for cold solder joints, cracked traces, and connector pin damage — common failure points on communication modules exposed to turbine-deck vibration. Second, we power up the module on a verified Mark VIe test rack and confirm the 3-pin power input circuit reads within spec using a Fluke 87V. Third, we configure each of the six serial channels individually for RS485, RS232, and RS422 modes and verify proper data transmission and reception on each port. Fourth, we confirm both IONet Ethernet ports establish proper communication and that the Modbus RTU master service correctly polls simulated slave devices. Finally, the module is sealed in anti-static foam with desiccant — no exceptions.

Replacement Pitfall Guide

❗ Serial channel configuration mismatch. Each of the six serial channels on the PSCA module is independently configurable for RS485 half-duplex, RS232, or RS422. If you’re replacing a module and the channel modes don’t match the original configuration, connected field devices will fail to communicate. Always export the ToolboxST configuration from the original module before swapping.

❗ Modbus RTU parameter mismatch. The Modbus RTU master service requires exact matching of data bits (7 or 8), parity (even/none/odd), 32-bit word ordering, and station address between the PSCA module and the connected slave devices. A single mismatched parameter will cause communication failure across the entire serial bus.

❗ IONet redundancy vs. simplex Ethernet Modbus. The dual IONet Ethernet ports support Ethernet Modbus master protocol only when used on a simplex network. If your system is configured for dual redundant IONet, the Ethernet Modbus master function may not be available. Verify your network topology before relying on this feature.

❗ Alarm limit configuration loss. The PSCA module’s self-diagnostics rely on configurable high/low limits for analog input, position, and pressure monitoring. If these limits are not properly restored after a module swap, the module may generate false alarms or fail to detect actual fault conditions. Always verify alarm limit settings in ToolboxST after replacement.

❗ QNX OS firmware version mismatch. The module runs on the QNX operating system. Different firmware versions may have different Modbus RTU implementations or serial channel behaviors. Verify the firmware version matches your system’s requirements before installation.

Keep these in mind and you’ll cut 90% of rework time.

Compatibility Matrix & Benchmarks

Benchmarks:

• 6 individually configurable serial transceiver channels (RS485 half-duplex, RS232, RS422)
• Modbus RTU master service with configurable data bits, parity, word ordering, and station address
• Dual IONet Ethernet (RJ45) with Ethernet Modbus master support on simplex network
