Product Core Brief

• Model: IS420YAICS1B
• Brand: General Electric (GE)
• Series: Mark VIeS
• Core Function: Interfaces up to two I/O Ethernets to analog I/O terminal boards for safety-critical process control.
• Product Type: YAIC Analog I/O Pack
• Key Specs: 10 analog inputs (8 configurable 4-20mA/5V/10V + 2 configurable 0-20mA/1mA) | BPPC processor compatible | Firmware V05.01+
• Condition: New Original / New Surplus

Product Introduction

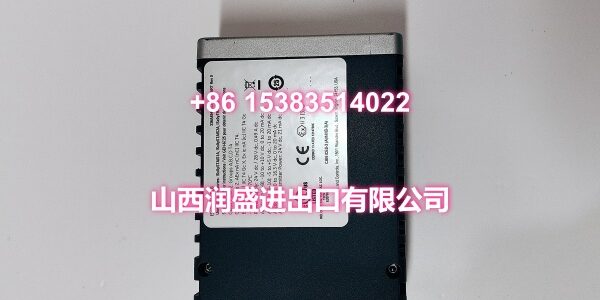

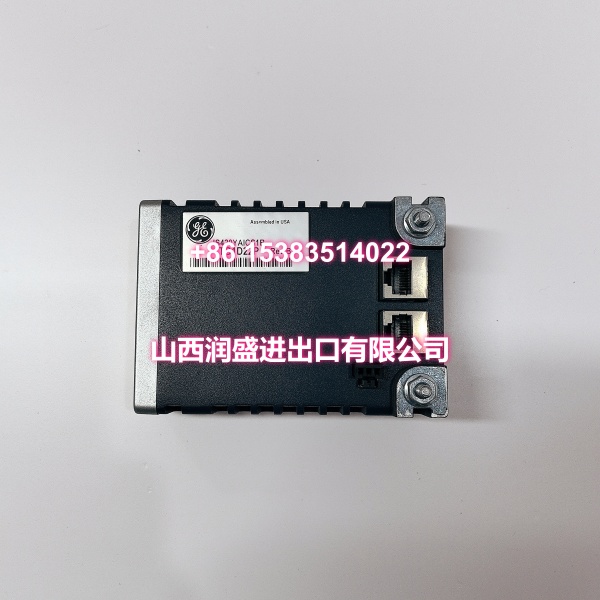

The GE IS420YAICS1B is a YAIC analog I/O pack within GE’s Mark VIeS safety control system. It serves as the interface between up to two I/O Ethernets and analog terminal boards, combining a processor board with a dedicated data acquisition board to digitize field signals for safety-rated logic.

This module accepts up to 10 analog inputs: the first 8 are configurable for 5V, 10V, or 4-20mA current loop signals, while the last 2 support 1mA or 0-20mA current inputs. It requires ControlST software V06.01 or higher and is built for petrochemical, chemical, and power generation applications where SIL-rated reliability is non-negotiable.

Key Technical Specifications

Quality Control Process

Each IS420YAICS1B gets a full bench workup before shipping. We start with a visual PCB inspection — checking for cold solder joints, corrosion on the Ethernet port contacts, and any signs of thermal stress on the acquisition board components.

Then we seat it on a BPPC-compatible test rack and verify firmware version is V05.01 or above. We inject calibrated 4-20mA signals into channels 1-8 and 0-20mA into channels 9-10, measuring the digitized output against the expected values with a Fluke 754 process calibrator. The dual Ethernet ports get a link-layer test to confirm communication with the Mark VIeS controller. Finally, we verify the module’s self-diagnostics report clean before packing it in anti-static foam with desiccant.

Replacement Pitfall Guide

❗ Confirm your ControlST version before installation. The IS420YAICS1B requires ControlST V06.01 or higher. Running it on an older software revision will cause recognition failures or incorrect scaling — a mistake that’s easy to miss until you’re chasing phantom process values during commissioning.

❗ Double-check the input channel configuration. Channels 1-8 and 9-10 have different configurable ranges. If your terminal board wiring expects 4-20mA on channels 9-10 but the module is set to 1mA, your readings will be off by a factor of 20. Verify the software configuration matches your field wiring before energizing.

❗ Verify BPPC processor compatibility. This pack is designed to work with the BPPC processor board. If you’re retrofitting into an older Mark VIe (non-S) rack with a different processor, the communication protocol may not handshake properly.

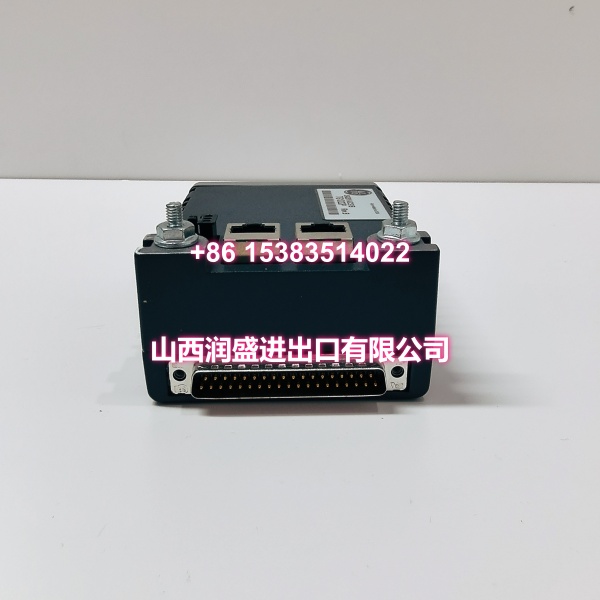

❗ Secure the mounting studs. The YAIC pack plugs directly into the terminal board connector and must be mechanically fastened with the studs near the Ethernet ports. In high-vibration environments — common in petrochemical plants — a loose pack can cause intermittent signal loss that looks like a field instrument failure.

Keep these in mind and you’ll cut 90% of rework time.

Compatibility Matrix & Benchmarks

• Analog Input Resolution: 16-bit per channel
• Safety Rating: Mark VIeS SIL-rated architecture compatible
