Product Core Brief
- Model: ZMI-7714
- Brand: ZYGO
- Series: ZMI Displacement Measurement
- Core Function: Generates highly stable, high-power dual-frequency optical output for advanced interferometry.
- Product Type: Water-Cooled HeNe Laser Head
- Key Specs: Water-Cooled Design | High-Power Output | Dual-Frequency
- Condition: New Surplus / Original
Product Introduction

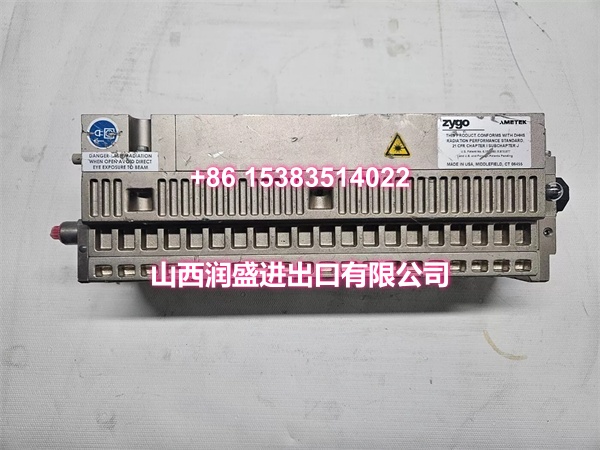

ZYGO ZMI-7714 is a premium water-cooled HeNe laser head designed for the most demanding metrology applications. This ZYGO module delivers exceptional frequency stability, which is absolutely critical for achieving sub-nanometer measurement accuracy.
Built for high-load environments, the ZYGO utilizes active water cooling to manage thermal output. This allows a single unit to supply the optical power necessary to drive multiple measurement axes simultaneously without frequency drift.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Water-Cooled HeNe Laser Head |
| Output Type | Dual-Frequency |
| Technology | Helium-Neon (HeNe) |
| Thermal Management | Water-Cooled Design |
| Supported Axes | Multiple Axes (High Power) |
| Compatible Boards | ZMI 240X, 4X04, 4104 Series |
| Frequency Stability | High (Thermally Regulated) |
| Application | Semiconductor / Optics / Aerospace |
| Reliability | Industrial Grade |
| Manufacturer | ZYGO (AMETEK) |
Quality Control Process
Water-cooled lasers demand rigorous validation. Every ZYGO undergoes a comprehensive optical and thermal bench test. We measure the dual-frequency output stability while circulating temperature-controlled water through the cooling jacket. We verify that optical power levels remain constant under full thermal load. We check the physical housing for alignment integrity and inspect the optical port for contamination. Finally, we perform an extended thermal burn-in to ensure the HeNe tube maintains frequency lock and doesn’t drift as it reaches peak operating temperature.
Replacement Pitfall Guide
❗ Cooling Loop Verification: The ZYGO requires active water cooling. Never power on this laser without verifying coolant flow. Running this unit dry will cause rapid thermal runaway, destroying the HeNe tube and compromising frequency stability.
❗ Optical Fiber Handling: The output from this high-power HeNe laser is coupled into a polarization-maintaining fiber. Never bend the fiber past its minimum bend radius. Micro-bends will cause signal attenuation that mimics a failing laser tube.
❗ Multi-Axis Power Budget: This high-power laser is designed to drive multiple axes. Before installation, calculate the total optical power budget required by all connected measurement boards. Ensure the 7714’s output exceeds the combined minimum threshold of all connected ZMI boards.
❗ High-Voltage Safety: HeNe lasers require high-voltage ignition and operating circuits. Always disconnect power and allow capacitors to discharge before handling the module. Never look directly into the optical port or fiber end.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor Model | Compatibility Level | Migration Notes |
|---|---|---|---|
| Direct | Exact match; verify optical power output | ||
| ZMI-7724 | Direct | 7724 is higher power; direct upgrade if cooling loop supports it | |
| ZMI-7705 | Needs Adaptation | 7705 is air-cooled/compact; verify if it meets multi-axis power needs | |
| ZMI-4104 | Companion | 4104 is the measurement board; verify optical fiber routing |
- Thermal Management: Active Water Cooling
- Axis Support: Multiple Axes (High Power)
Need help verifying your cooling loop specifications or checking the optical power budget for your multi-axis setup? I can walk you through the integration checklist.
