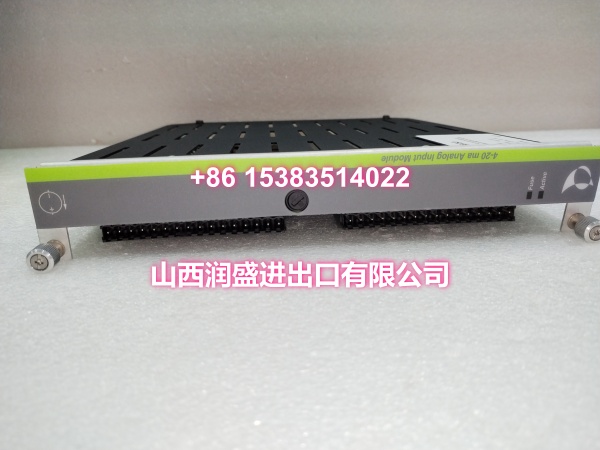

Product Core Brief

• Model: IOP301
• Brand: METSO (Valmet)
• Series: IOP Industrial Automation Line
• Core Function: Conditions and isolates analog field signals for accurate PLC processing in harsh environments.
• Product Type: Isolated Analog Input Module
• Key Specs: 2500Vrms Optical Isolation | 4-20mA / 0-10V Configurable | MIL-STD-810G Ruggedized
• Condition: New Surplus / Original Packaging

Key Technical Specifications

• Manufacturer: METSO Automation (Valmet)
• Country of Origin: Finland
• Model Number:
• Module Type: Isolated Analog Input
• Signal Compatibility: 4-20 mA, 0-10 VDC, RTD, Thermocouple (verify revision)
• Isolation Rating: 2500Vrms optical isolation
• Operating Temperature: -40°C to +85°C
• Backplane Compatibility: METSO IOP Chassis Series
• Certifications: ATEX II 3G, IECEx, UL Class I Div 2
• Response Time: < 300ms



Product Introduction (No Fluff)

Engineered for mission-critical automation, the METSO IOP301 provides reliable signal conditioning for process control applications. This isolated analog input module protects sensitive PLC backplanes from field transients while delivering precise measurement data in mining, cement, and power generation facilities.

Replacing a drifted or failed I/O card with a verified METSO IOP301 restores measurement accuracy without recalibrating the entire system. The 2500Vrms optical isolation eliminates ground loop noise that plagues older, non-isolated cards in electrically noisy environments.



QA & Testing SOP (Dynamic & Transparent)

Every METSO IOP301 undergoes comprehensive functional validation:

1. Full-Scale Signal Injection: We inject precision 4-20mA and 0-10VDC signals using a Fluke 754 documenting process calibrator; output must match within ±0.1% of span.
2. Isolation Hipot Test: 2500Vrms dielectric withstand test applied between input channels and backplane to verify optical barrier integrity.
3. Backplane Communication Check: Module seated in live METSO test chassis; verified register reads/writes and diagnostic flag reporting via controller software.
4. Anti-Counterfeit & Packaging: Serial/lot verification against factory records, sealed in anti-static shielding bag with desiccant and ESD-safe foam cradle.

Installation Pitfalls & Guide (Engineer to Engineer)

❗ Shield Grounding at One End Only: The #1 cause of noisy analog readings. Shield the field cable and ground it at the METSO IOP301 module terminal ONLY. Grounding at both ends creates a ground loop that injects 50/60Hz hum directly into your signal. If the field device is already grounded, use an insulated shield cable.

❗ DIP Switch / Jumper Mismatch: The IOP301 supports multiple signal types via hardware jumpers or DIP switches. Setting the module to voltage input while wiring a current loop will read full scale and potentially damage the input circuit. Always verify jumper configuration matches your field signal BEFORE applying power.

❗ Backplane Pin Damage: Inspect the backplane connector for bent or pushed-back pins before insertion. A single misaligned pin can short isolated inputs to the backplane bus, destroying both the module and adjacent cards. Use a flashlight and magnifying glass.

❗ ESD Sensitivity: The optical isolation barrier is robust, but the CMOS front-end is not. Always wear a grounded wrist strap when handling. Insert the module squarely—never rock it side-to-side.

Replacement SOP:

1. Pre-Install: Power down chassis, lockout/tagout, verify zero backplane voltage. Document existing DIP/jumper settings.
2. Removal: Release retaining clips, pull module straight out; inspect backplane connector.
3. Install: Configure METSO IOP301 jumpers to match old module, align with guides, press firmly until seated; engage clips.
4. Power-on Test: Apply power, verify status LED, inject test signal, confirm controller reads correct value.



Technical FAQ

Q: Is the METSO IOP301 compatible with Valmet DNA or MaxDNA systems?
A: Yes. METSO Automation transitioned to Valmet, and the IOP301 is fully supported in both legacy METSO and current Valmet DNA/MaxDNA platforms. However, always verify the revision code; later revisions may include updated firmware for enhanced diagnostics.

Q: Why is the price higher than generic analog input cards?
A: Generic cards lack true optical isolation and industrial-grade components. The METSO IOP301 provides 2500Vrms channel-to-backplane isolation, MIL-STD-810G ruggedization, and ATEX certification. In a cement kiln or power plant turbine application, that isolation prevents catastrophic backplane damage from field transients. The ROI is measured in avoided downtime.

Q: What is the warranty on new surplus stock?
A: Full 12-month functional warranty against manufacturing defects. We test every unit on a live METSO test rack with calibrated signal injectors before shipping. If it fails isolation or accuracy tests, we replace it immediately. No restocking fees on DOA units.

Q: Can I hot-swap this module?
A: No. The METSO IOP backplane architecture does not support hot-swapping analog input modules. Inserting or removing the METSO IOP301 while powered can cause voltage spikes that damage the module and adjacent cards. Always follow the full power-down SOP.

Q: Is this module still supported by Valmet/METSO?
A: The METSO IOP301 remains in active support for existing installations. Valmet maintains long-term availability for core I/O modules in the IOP series. However, always verify the full model number and revision; minor updates (e.g., IOP301B) may include improved filtering or expanded signal range. When in doubt, send us a photo of the module’s data plate for cross-reference.
