Product Core Brief

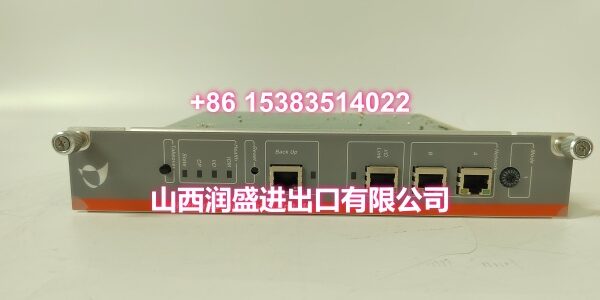

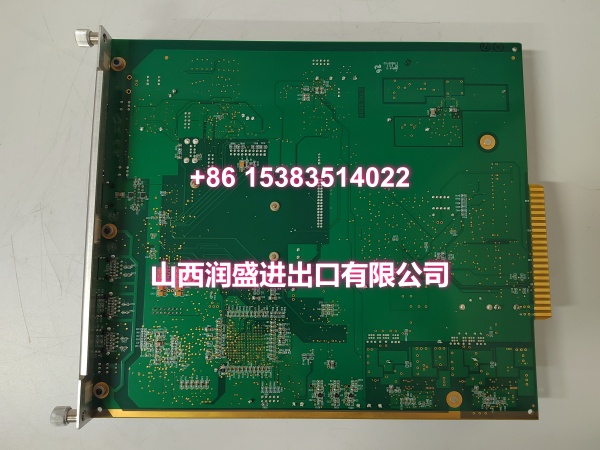

- Model: PDP601
- Brand: Metso
- Series: Distributed Processing Unit
- Core Function: Executes real-time control logic and manages I/O data for distributed automation systems.
- Product Type: Distributed Processing / Control Module
- Key Specs: 24VDC Power | Multi-Protocol Comm | -40°C to +70°C
- Condition: New Original / New Surplus
Key Technical Specifications
- Module Type: Distributed Processing Unit
- Product ID:
- Power Supply: 24V DC ±15%
- I/O Capacity: Supports 8 Analog In, 4 Analog Out, 16 Digital I/O
- Communication: Dual Ethernet (10/100M), RS-485, Profibus DP
- Processing Speed: Data handling typically <5ms
- Operating Temp: -40°C to +70°C
- Dimensions: 145 x 110 x 75 mm
- Weight: 0.62 kg
- Mounting: 35mm DIN rail (IEC 60715)
Product Introduction
Engineered for harsh industrial environments, this unit serves as the local brain for distributed control loops. It processes hundreds of I/O points simultaneously, ensuring flotation cells and conveyors maintain precise control even during ore grade shifts.
Operators benefit from hot-swappable design and native protocol support, eliminating gateway headaches and reducing downtime. The ability to replace failed communication cards without shutting down the entire system is a critical advantage in continuous process industries.
QA & Testing SOP (Dynamic & Transparent)
Every Metso PDP601 undergoes a rigorous validation process before shipment. We begin with a comprehensive anti-counterfeit inspection, verifying PCB markings, component date codes, and firmware integrity against OEM specifications. Next, we perform a cold-start stress test at -40°C to confirm reliable boot-up in extreme conditions, simulating Arctic mine environments.
Signal processing is validated by injecting simultaneous 4-20mA and digital signals across all channels, measuring response times to ensure sub-5ms latency. We also test hot-swap functionality by removing and reinserting communication cards while the unit is powered, verifying zero frame drops and seamless recovery. Units ship in anti-static packaging with full test reports.
Installation Pitfalls & Guide
❗ Power Supply Sag: The PDP601 can draw up to 2.5A during peak load. If your 24VDC supply is shared with other high-draw modules, voltage droop can cause random resets. Measure voltage at the module terminals under load; it must stay above 20.4V.
❗ DIN Rail Grounding: The mounting clip provides the primary ground path. Ensure the DIN rail is properly bonded to panel ground. A floating rail turns the module into an antenna for EMI, causing intermittent communication faults.
❗ Cable Strain Relief: The Ethernet and Profibus connectors are not designed to bear cable weight. Use proper strain relief clamps within 6 inches of the connector. Vibration-induced stress on the port is a common field failure.
Replacement SOP:
- Pre-Install: Backup configuration via Ethernet; verify firmware version matches system.
- Removal: Disconnect power; wait 30 seconds for capacitor discharge; release DIN clip.
- Install: Seat firmly on DIN rail; engage top clip first, then bottom; reconnect power.
- Power-On: Monitor status LEDs for 60 seconds; verify communication link before enabling I/O.
Technical FAQ
Q: Can I hot-swap the PDP601 while the backplane is live?
A: The module supports hot-swapping of communication cards, not the entire PDP601 unit itself. For full unit replacement, power down the slot or rack. The hot-swap feature is designed for individual interface cards, not the main processor.
Q: Is this unit compatible with older Metso DPU-MR systems?
A: Mechanically similar, but electrically different. The PDP601 uses a different backplane protocol and power distribution. You cannot directly substitute a PDP601 for a DPU-MR without rack modifications and configuration changes. Verify compatibility with your system integrator.
Q: Why does the operating temperature range start at -40°C?
A: This module is designed for unheated outdoor cabinets in northern climates. The -40°C cold-start capability ensures reliable operation during polar vortex conditions. Standard industrial modules typically only go to -20°C; this is a specialized cold-weather variant.
Q: What happens if I exceed the 2.5A power draw?
A: The module has internal overcurrent protection that will shut down to prevent damage. However, repeated overcurrent events can degrade the protection circuitry. Size your power supply with 20% headroom above calculated load to avoid nuisance trips.
Q: Do you provide firmware updates for this model?
A: Firmware updates are available through Metso’s support portal for registered systems. We can supply the latest stable version on USB if you lack portal access. Always backup configuration before updating; some firmware revisions require parameter migration.
