Product Core Brief

• Model: 3500/42M 135489-01
• Brand: Bently Nevada
• Series: 3500 Machinery Protection System
• Core Function: Interfaces displacement, velocity, and acceleration sensors with internal safety barriers.
• Product Type: 4-Channel Proximitor/Seismic Monitor I/O Module
• Key Specs: 4 Channels | Internal Isolation | 30 kHz Bandwidth
• Condition: New Original / New Surplus

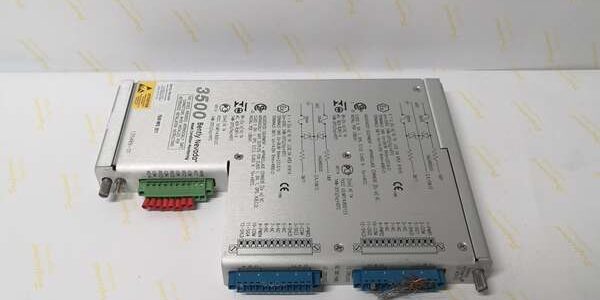

Bently 3500/42M 135489-01

Product Introduction

The Bently 3500/42M 135489-01 acts as a high-performance I/O module for critical rotating machinery. This industrial automation unit safely connects Proximitor and seismic sensors to the main 3500 monitor.

This replacement module features built-in internal safety barriers to eliminate external hardware. It operates reliably across a wide -40°C to +70°C temperature range.

Key Technical Specifications

Quality Control Process

Every replacement module undergoes strict signal injection testing. We simulate proximity and seismic inputs to verify conditioning circuits. Output linearity must stay within ±1% maximum tolerance. Next, we verify the internal safety barrier isolation. Dielectric breakdowns trigger immediate rejection. We then inspect the internal terminal blocks for secure seating. Oxidation or physical damage causes intermittent data loss. All units ship in anti-static shielding.

Replacement Pitfall Guide

❗ Do Not Use External Termination Blocks. This specific I/O module features internal terminations. Attempting to use external termination blocks with this part number will cause physical interference and installation failure.

❗ Verify Internal Barrier Compatibility. The built-in safety barrier eliminates the need for external safety barriers. Do not double up on isolation hardware, as this will degrade the signal integrity and alter the loop impedance.

❗ Check Sensor Configuration. Each of the four channels must be independently programmed. Ensure the software configuration matches your physical sensor type (e.g., Proximitor vs. Velomitor). Mismatched configurations yield completely false vibration readings.

❗ Mind the Bandwidth Limits. With a 30 kHz bandwidth for proximity and acceleration, this module captures high-frequency transients. Ensure your cabling and shielding can support this frequency without introducing noise into the buffered outputs.

Keep these in mind and you’ll cut 90% of rework time.

Bently 3500/42M 135489-01

Compatibility Matrix & Benchmarks

• Measurement Accuracy: Radial vibration/clearance ±0.33% full-scale typical.
• Data Integration: Seamless backplane communication with 3500 system.
