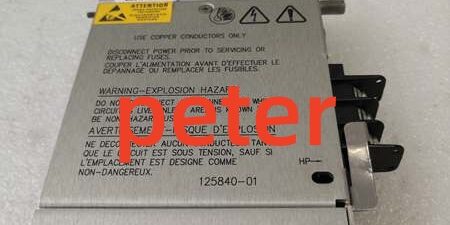

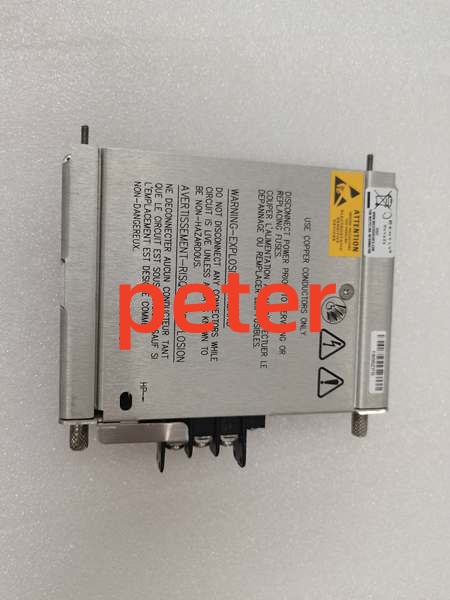

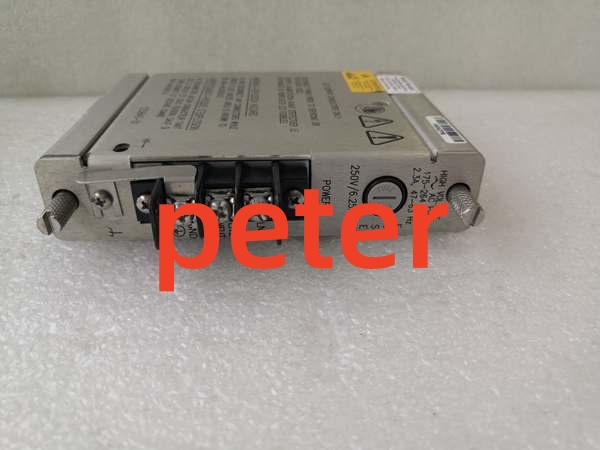

Product Core Brief

• Model: 125840-01
• Brand: Bently Nevada (Baker Hughes / GE)
• Series: 3500 Machinery Protection System
• Core Function: High-voltage AC power supply backplane module converting external mains to internal DC for 3500/15 power supply operation.
• Product Type: Power Supply Backplane / Base Module
• Key Specs: 100-240 VAC Input | 3500/15 Compatible | Half-Height Form Factor
• Condition: New Surplus / OEM Original

Key Technical Specifications

• Part Number: 125840-01
• Function: AC Power Input Backplane for 3500/15 Module
• Input Voltage Range: 100-240 VAC (Universal)
• Input Frequency: 47-63 Hz
• Output: Internal DC Bus for 3500 Rack
• Form Factor: Half-Height Module
• Mounting Position: Left-side designated slot in 3500/05 Frame
• Redundancy: Supports dual power supply configuration (Main/Backup)
• Hot-Swap Capability: Yes (when redundant power is installed)
• Operating Temperature: -30°C to +65°C
• Humidity: 95% Non-Condensing
• Status Indication: Front Panel LEDs (via 3500/15 faceplate)

Product Introduction

Serving as the foundational power interface for the 3500 rack, this Bently Nevada 125840-01 backplane accepts universal AC mains and conditions it for the 3500/15 power supply module. It is the critical mechanical and electrical base that enables high-voltage input without exposing the internal rack logic to line transients.

Installing this base correctly is mandatory for any 3500/15 AC power configuration. It features dedicated slot keying and internal bus routing that ensures the power supply module receives clean, isolated input while maintaining the hot-swap redundancy required for continuous turbine protection during maintenance windows.

QA & Testing SOP

Power backplanes are passive but failure-critical. We verify physical integrity and bus continuity before shipping.

1. Anti-Counterfeit & Visual Audit: We inspect the PCB for trace corrosion, verify the Bently Nevada silkscreen, and check the backplane connectors for bent pins or solder cracks from previous rack stress.
2. Bus Continuity Test: Using a Fluke multimeter, we verify continuity across the internal DC bus bars and AC input terminals to rule out open circuits or cold solder joints.
3. Insulation Resistance Check: We perform a Megger test between the AC input terminals and the chassis ground to ensure the isolation barrier hasn’t degraded from moisture or age.
4. Connector Seating Validation: We verify the backplane-to-module connector alignment pins are intact and not sheared, ensuring the 3500/15 module will seat fully without arcing.
5. ESD Safe Packaging: While passive, the backplane connects directly to sensitive power supply ICs. We pack it in anti-static shielding with rigid corner protection to prevent transit damage.

Installation Pitfalls & Guide

❗ Slot Position is Non-Negotiable: The 125840-01 backplane must be installed in the left-most designated power slot of the 3500/05 frame. Attempting to force it into a monitor slot will damage the backplane connectors and potentially short the AC input to the low-voltage logic bus.

❗ Redundancy Wiring: If installing dual power supplies for hot-swap capability, the lower slot acts as the primary and the upper as the backup. Swapping this configuration in software without verifying physical slot position will cause the system to failover unexpectedly during a primary power loss.

❗ AC Input Torque: The high-current AC input terminals on this backplane are prone to loosening from vibration. Always torque the terminal screws to the OEM spec (typically 1.4 Nm / 12 in-lbs). A loose connection here will cause localized heating and eventual arc flash, not just a nuisance trip.

Replacement SOP:

1. Pre-Install: Lock out/tag out the AC mains input; verify zero voltage with a CAT III multimeter; document the existing power supply slot positions.
2. Removal: Remove the 3500/15 power module first; then unbolt the 125840-01 backplane from the frame; inspect the frame mounting points for stripped threads.
3. Install: Seat the new 125840-01 firmly into the left power slot; torque mounting screws evenly; reinstall the 3500/15 module ensuring full backplane engagement.
4. Power-On Test: Re-energize AC mains; verify the 3500/15 status LEDs indicate healthy input; confirm redundant failover by simulating a primary power loss (if dual-supply).

Technical FAQ

Is 125840-01 the same as 127610-01?
No. 127610-01 is the front panel or the complete 3500/15 power supply assembly. 125840-01 is specifically the backplane base module that mounts to the rack. You typically replace the backplane only if it’s physically damaged or corroded; for power failures, you usually replace the entire 3500/15 module (which includes the backplane).

Can I use this backplane with a 3500/15 DC power supply?
No. The 125840-01 is designed for AC input. If you are running DC power to your 3500 rack, you need the low-voltage or high-voltage DC backplane variant. Mixing AC and DC backplanes with the wrong power supply module will result in immediate hardware failure.

Does this backplane support hot-swapping?
The backplane itself is passive; hot-swap capability depends on having two 3500/15 power modules installed. With dual power supplies seated in this backplane, you can remove or replace one module without interrupting rack operation. A single power supply configuration does not support hot-swap.

What happens if I lose AC power to this backplane?
If configured with redundant power supplies, the backup supply will take over within milliseconds. If you have a single supply, the entire 3500 rack will lose power and all protection relays will de-energize (fail-safe trip). Always verify your redundancy configuration before assuming hot-swap capability.

Why is this sold as new surplus?
This unit was pulled from sealed OEM overstock or an unfulfilled project before installation. We test it electrically to verify bus integrity, but we aren’t replacing connectors or reflowing solder. You’re getting unused factory hardware with original manufacturing tolerances at a fraction of the active OEM price.
