Product Core Brief
- Model: PCIe-6612
- Brand: National Instruments (NI)
- Series: NI 661x Counter/Timer Devices
- Core Function: Provides high-precision timing, counting, and digital I/O for PCI Express systems with hardware-timed synchronization.
- Product Type: 8-Channel Counter/Timer & Digital I/O Device
- Key Specs: 8x 32-bit Counters | 40 DIO Lines | 80 MHz Max Freq | PCIe Bus | TTL/CMOS Compatible
- Condition: New Original (New Surplus)
Product Introduction
The NI PCIe-6612 is a versatile PCI Express timing and digital I/O device designed for applications requiring precise event counting, frequency measurement, and pulse generation. It serves as the high-speed timing backbone for test systems, bridging the gap between software control and hardware-timed signal processing.
At its core, the PCIe-6612 features eight 32-bit counter/timers and 40 bidirectional digital I/O lines. It is engineered to handle complex timing tasks such as encoder position measurement, pulse-width analysis, and pulse-train generation with hardware-level precision. The device supports three simultaneous high-speed DMA transfers, ensuring that high-frequency data streams do not bottleneck the CPU, making it ideal for automated test equipment (ATE) and industrial motion control.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Counter/Timer & Digital I/O Device |
| Bus Interface | PCI Express |
| Counter/Timer Channels | 8 (32-bit) |
| Digital I/O Lines | 40 Bidirectional (TTL/CMOS) |
| Max Source Frequency | 80 MHz (External), 100 MHz (Internal) |
| DMA Transfers | 3 Simultaneous High-Speed Channels |
| Logic Levels | 5V TTL/CMOS Compatible (-3.0V to 8.0V Range) |
| Features | Digital Debounce Filters, Hardware-Timed Synchronization |
| Driver Support | NI-DAQmx |
| Part Number | 782351-01 |

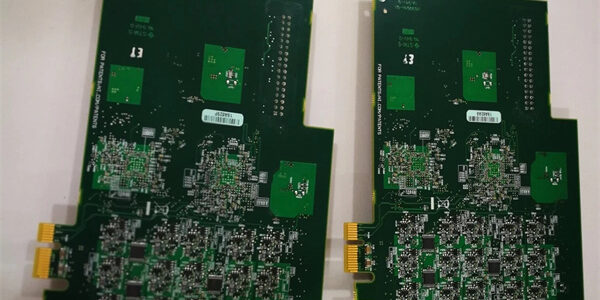

NI PCIE-6612
Quality Control Process (Engineer’s Perspective)
We don’t just box these and ship them. Here is our actual bench test workflow.
- Incoming Verification: We verify the serial number against NI traceability records. A visual inspection checks for bent pins on the PCIe edge connector and ensures the digital I/O headers are free of damage.
- Live Functional Test: We mount the unit in a live PCIe test system. We verify that NI MAX correctly enumerates the device and all 8 counters and 40 DIO lines are accessible.
- Timing Accuracy Test: We use a precision frequency counter to verify the internal timebase stability and confirm the 80 MHz external source frequency limit is met without jitter.
- DMA Stress Test: We configure simultaneous buffered pulse generation and event counting to verify that the 3-channel DMA engine transfers data without CPU intervention or buffer overruns.
- Final QC & Packaging: The module is sealed in an anti-static bag with silica gel. A QC sticker showing the test date and technician initials is applied to the exterior.
Replacement Pitfall Guide
Field replacements on timing systems are unforgiving. Watch out for these traps.
- Bus Mismatch: ❗ Critical. The PCIe-6612 is a PCI Express device. It will not fit in a legacy PCI slot. If you are replacing a PCI-6602, you must ensure your motherboard has an available PCIe x4 or larger slot (x1 slots may physically fit but check clearance).
- Digital I/O Voltage: ❗ Critical. The DIO lines are 5V TTL/CMOS compatible with a range of -3.0V to 8.0V. Connecting 12V or 24V signals directly without level shifting will permanently damage the I/O buffer. Verify your field signal conditioning.
- DMA Channel Conflicts: If you are using other NI devices in the same system, verify that the total DMA channel count does not exceed the PCIe bus controller’s limit. Exceeding this can cause silent data corruption or timing glitches.
- Debouncer Settings: The PCIe-6612 includes hardware debounce filters. If you are measuring noisy mechanical switches and see “ghost” counts, check your NI-DAQmx configuration to ensure the debounce filter is enabled and set to the correct time constant.
- ESD Damage: The high-speed timing ASICs are sensitive to electrostatic discharge. Always wear a grounded wrist strap when handling the bare PCB. I’ve seen counters fail frequency tests because they were handled on a dry winter day without protection.
Keep these in mind and you’ll cut 90% of rework time.
NI PCIE-6612
Compatibility Matrix & Benchmarks
Compatibility
- NI PCI-6602 → PCIe-6612 : Recommended Upgrade – PCIe-6612 offers 40 DIO (vs 32), PCIe bus, and improved DMA. Verify slot availability.
- NI PCIe-6612 → PCIe-6612 : Direct Replacement – Verify firmware/driver version compatibility if mixing revisions.
- NI PXIe-6612 → PCIe-6612 : Form Factor Change – Same core specs, different chassis. Requires PXI-to-PCIe migration.
Benchmarks
- Max Frequency: 80 MHz (External Source Verified)
- DMA Latency: < 5 µs (Hardware-timed transfer initiation)
- DIO Toggle Rate: Up to 10 MHz (Hardware-timed)
Need the NI-DAQmx configuration guide for the NI PCIe-6612? I can pull up the code snippets for setting up buffered pulse generation with DMA and the debounce filter configuration for noisy encoder signals.
