Product Core Brief
- Model: PCI-5421
- Brand: National Instruments (NI)
- Series: NI 5421 Series Arbitrary Waveform Generators
- Core Function: Generates high-resolution, user-defined arbitrary waveforms and standard functions with advanced synchronization capabilities.
- Product Type: Arbitrary Waveform Generator (AWG)
- Key Specs: 100 MS/s Base Rate | 16-Bit Resolution | Up to 256 MB Memory | 400 MS/s Interpolated
- Condition: New Original (New Surplus)
Product Introduction
NI is a high-performance, 100 MS/s arbitrary waveform generator designed for demanding test and measurement applications. Utilizing a 16-bit digital-to-analog converter (DAC) and Direct Digital Synthesis (DDS), this module delivers exceptional signal quality with a 91 dBc near-carrier Spurious-Free Dynamic Range (SFDR).
Unlike traditional AWGs, the features NI’s Synchronization and Memory Core (SMC) architecture. This allows the waveform data and sequencing instructions to share the same physical memory, enabling the generation of extremely long, non-repetitive waveforms or highly complex multi-segment sequences. It also features an optional 16-bit LVDS digital pattern output that is perfectly synchronized with the analog waveform, making it ideal for testing digital communication systems and mixed-signal devices.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Base Sample Rate | 100 MS/s |
| Max Interpolated Rate | 400 MS/s (via 2x, 4x, 8x interpolation) |
| DAC Resolution | 16-Bit |
| Analog Output Range | -6 V to +6 V |
| Onboard Memory | 8, 32, or 256 MB (Shared Data & Instructions) |
| Digital Output | Optional 16-bit LVDS (via VHDCI connector) |
| SFDR | 91 dBc (at 10 MHz) |
| Trigger Modes | Single, Continuous, Stepped, Burst |
| Bus Interface | PCI |
| Driver Software | NI-FGEN |

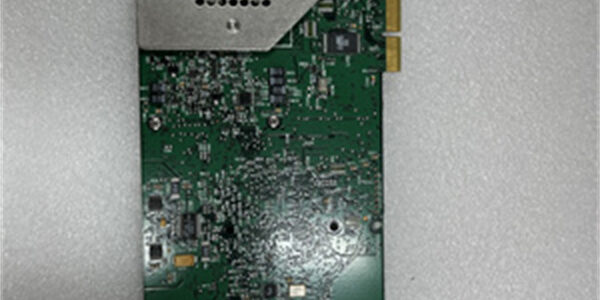

NI PCI-5421
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: We trace source serial numbers against factory records. Visual inspection checks for PCI gold finger wear and front-panel SMB/VHDCI connector integrity.
- Live Functional Test: Power-on self-check runs first. We verify NI-FGEN enumeration and run continuous arbitrary waveform generation tests >24 hrs with temp logging.
- Electrical Parameter Test: Insulation resistance gets tested at 500 V Megger (>10 MΩ required). Ground continuity and analog output impedance (50Ω/75Ω) are verified.
- Calibration Verification: Read and record self-calibration status and EEPROM constants. Verify DAC linearity and timing jitter against factory specs.
- Final QC & Packaging: Seal in anti-static bag. Apply QC Passed label with test date and engineer initials.
Replacement Pitfall Guide
❗ Memory Configuration Mismatch: The comes in 8, 32, and 256 MB variants. Crucially, the 16-bit LVDS digital pattern output is NOT available on the 8 MB version. Verify your exact memory requirement and digital I/O needs.
❗ Driver/API Confusion: This module requires the NI-FGEN driver. Do not attempt to use legacy NI-AWG or NI-Function Generator APIs.
❗ PCI Bus Limitations: While the PCI bus offers download speeds up to 280x faster than GPIB, ensure your motherboard has a dedicated 32-bit PCI slot and adequate 3.3V/5V power headroom for continuous high-speed streaming.
❗ Minimum Sample Restriction: When operating in burst trigger mode or using script-based waveform subsets, be aware that each waveform segment requires a minimum of 8 samples. Plan your sequence generation accordingly.
❗ ESD Damage: Use anti-static mat and wrist strap. Dry environments increase failure risk during handling.
Keep these in mind and you’ll cut 90% of rework time.
NI PCI-5421
Compatibility Matrix & Benchmarks
- → PXI-5421 : Direct — Same functionality, PXI form factor
- → PCI-5422 : Needs Adaptation — Verify memory and LVDS configuration differences
- → PXIe-5423 : Needs Adaptation — PXI Express upgrade, check software compatibility
Benchmarks:
- Waveform Download: 280x faster than GPIB-based AWGs
- Timing Jitter: < 1.0 ps rms (Analog Output)
