Product Core Brief
- Model: FPN1903A
- Brand: Motorola
- Series: RTU / Industrial Controller Expansion
- Core Function: Serves as an analog expansion module for RTU control systems, enabling communication and analog signal acquisition.
- Product Type: Analog Expansion / Communication Module
- Key Specs: RTU Compatible | Analog Signal Processing | Expansion Module
- Condition: New Original (New Surplus)
Product Introduction
The Motorola FPN1903A is a specialized analog expansion module designed for integration into Motorola RTU (Remote Terminal Unit) control systems. It acts as a critical interface for expanding the analog I/O capabilities of the base controller, allowing the system to monitor and control continuous process variables.
Engineered for reliable industrial automation, the facilitates seamless communication between the main RTU controller and field devices. This module is widely utilized in infrastructure and industrial applications requiring precise analog data acquisition and robust controller communication.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Analog Expansion / Communication Module |
| System Compatibility | Motorola RTU Control Systems |
| Primary Function | Analog Signal Acquisition & Controller Communication |
| Bus Interface | RTU Expansion Backplane |
| Mounting | Modular Rack Mount |
| Certifications | Industrial Automation Standards |
| Origin | United States |

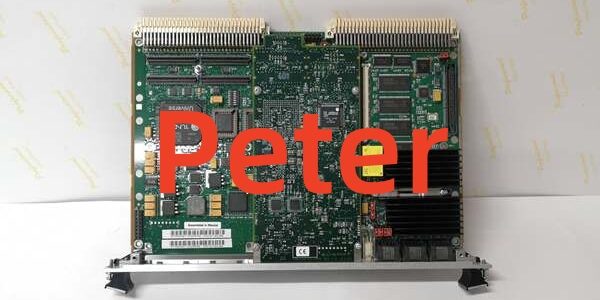

Motorola MVME5100
Quality Control Process (Engineer’s Perspective)
We don’t just box these and ship them. Here is our actual bench test workflow.
- Incoming Verification: We verify the serial number against Motorola traceability records. A visual inspection checks for bent pins on the expansion backplane connector and ensures the module housing is free of impact damage.
- Live Functional Test: We mount the unit in a live RTU test rack. We verify the module’s communication handshake with the base controller and confirm it is recognized without configuration errors.
- Electrical Parameter Test: We perform a 500 V Megger test between the analog field terminals and the backplane. Insulation resistance must exceed 10 MΩ. Ground continuity is verified.
- Signal Accuracy Test: We inject calibrated analog signals to verify the module’s acquisition accuracy and confirm the data is correctly passed to the RTU controller.
- Final QC & Packaging: The module is sealed in an anti-static bag with silica gel. A QC sticker showing the test date and technician initials is applied to the exterior.
Replacement Pitfall Guide
Field replacements on RTU systems are unforgiving. Watch out for these traps.
- Firmware/Configuration Mismatch: ❗ Critical. A brand-new might have a different internal configuration or firmware revision than your existing RTU system. The controller may block it or misread analog values. Always verify compatibility with the base RTU CPU.
- Analog Signal Type: ❗ Critical. Verify that the field devices connected to this module match the expected analog signal types (e.g., 4-20mA, 0-10V). Incorrect wiring can damage the module’s internal ADC circuits.
- Terminal / Cable Incompatibility: Inspect the shielded cabling before connecting. Analog signals are highly susceptible to electrical noise; a broken shield or ground loop will cause erratic readings that mimic module failures.
- Expansion Slot Compatibility: Ensure the is being installed in the correct expansion slot on the RTU backplane. Installing it in an incompatible slot can cause bus faults.
- ESD Damage: Analog modules are highly sensitive to electrostatic discharge. Always wear a grounded wrist strap when handling the bare PCB. I’ve seen modules fail bench testing because they were handled on a dry winter day without protection.
Keep these in mind and you’ll cut 90% of rework time.
Motorola MVME5100
Compatibility Matrix & Benchmarks
Compatibility
- Motorola → : Direct Replacement — Verify base RTU controller compatibility.
- Motorola → FLN3559A / FLN3572A : Companion Modules — These are related RTU expansion modules; verify cross-compatibility if mixing types.
Benchmarks
- Controller Handshake: < 100 ms (from power-up to RTU recognition)
- Signal Acquisition Latency: < 10 ms (from field signal change to controller update)
Need the wiring diagram for the analog inputs? I can pull up the termination schematic showing the correct signal wiring and shield grounding points for your RTU application.
