Product Core Brief

• Model: CC-PDOB01 (51405043-175)
• Brand: Honeywell
• Series: Experion PKS / C300 DCS System
• Core Function: Provides 32 channels of 24VDC digital safety outputs for driving field devices.
• Product Type: Digital Output (DO) Module
• Key Specs: 32 Channels | 24VDC Bussed Output | Fail-Safe Design | Redundancy Support
• Condition: New Original (New Surplus)

Product Introduction

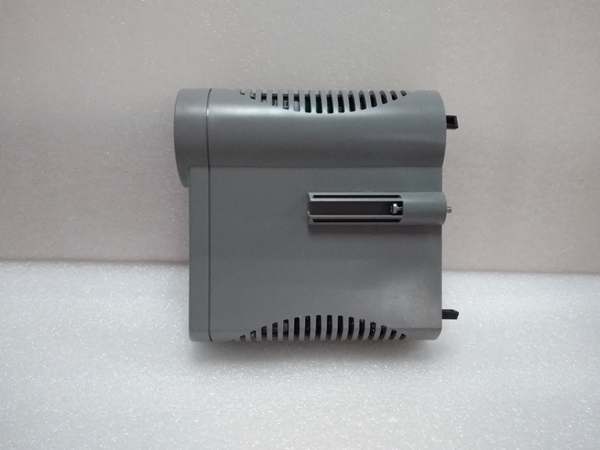

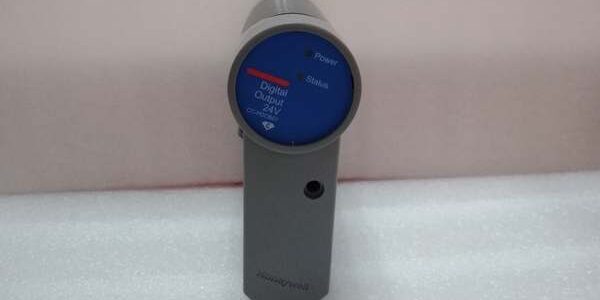

The is a high-reliability 32-channel digital output module designed for the Experion C300 DCS system. It serves as the critical execution unit for logic control, directly driving solenoids, relays, and indicator lights with a 24VDC bussed output architecture.

Engineered for harsh industrial environments, this module features advanced fail-safe diagnostics. If a communication interruption or power failure is detected, the automatically resets outputs to a pre-configured safe state (open or closed), preventing uncontrolled equipment operation and ensuring process safety.

Key Technical Specifications

Quality Control Process (Engineer’s Perspective)

We don’t just box these and ship them. Here is our actual bench test workflow.

1. Incoming Verification: We verify the serial number (51405043-175) against Honeywell’s traceability records. A visual inspection checks for bent pins on the C-Bus connector and ensures the DIN rail clip isn’t cracked.
2. Live Functional Test: We mount the unit in a live C300 test rack. We force all 32 channels ON/OFF and verify the 24VDC switching at the terminals using a Fluke 115 multimeter.
3. Electrical Parameter Test: We perform a 500 V Megger test between the field output terminals and the backplane. Insulation resistance must exceed 10 MΩ. Ground continuity is verified.
4. Fail-Safe Verification: We simulate a controller communication loss and confirm all channels execute the configured fail-safe action within the specified cycle time.
5. Final QC & Packaging: The module is sealed in an anti-static bag with silica gel. A QC sticker showing the test date and technician initials is applied to the exterior.

Replacement Pitfall Guide

Field replacements on safety systems are unforgiving. Watch out for these traps.

1. Firmware Mismatch: ❗ Critical. A brand-new might have a newer firmware revision than your existing C300 CPU. The Experion controller will block it with a configuration mismatch fault. Always check your system’s allowed firmware matrix before installing.
2. Fail-Safe State Configuration: This module supports programmable fail-safe states. If you pull the old card and the new one defaults to “Safe Value” while your logic expects “Hold Last,” you may cause an unintended process shutdown. Verify the fail-safe parameter in the controller configuration.
3. Terminal / Cable Incompatibility: Inspect the field wiring before plugging in the new card. A shorted solenoid or grounded cable will immediately trip the CC-‘s internal overcurrent protection, locking out the channel.
4. Power Supply Mismatch: Verify your external 24VDC field power supply has at least 20% headroom. Thirty-two channels driving inductive loads can draw significant current during simultaneous switching.
5. ESD Damage: Safety modules are highly sensitive to electrostatic discharge. Always wear a grounded wrist strap when handling the bare PCB. I’ve seen modules fail bench testing because they were handled on a dry winter day without protection.

Keep these in mind and you’ll cut 90% of rework time.

Compatibility Matrix & Benchmarks

Compatibility

• Honeywell CC- Rev A → CC- Rev B : Direct Replacement — Verify firmware compatibility with C300 CPU.
• Honeywell CC-TDOB01 → CC- : Direct Replacement — Verify backplane termination requirements (CC-TDOB01 is the termination base).

Benchmarks

• Switching Response: < 5 ms (from CPU command to terminal state change)
• Fail-Safe Transition: < 10 ms (upon communication loss detection)
