Product Core Brief

• Brand: GE (General Electric)
• Model: IS220UCSAH1A
• Series: Speedtronic Mark VIe / Mark VIeS
• Core Function: Fanless UCSA embedded processor executing turbine control logic, protection sequencing, and integrated acoustic monitoring via ControlST software
• Type: Real-time controller module (PAMC)
• Condition: New Original (New Surplus)
• Status: ⚠️ Discontinued OEM production; limited available inventory
• Key Spec Highlights: 667 MHz PowerPC CPU, QNX Neutrino RTOS, six RJ45 Ethernet ports, 18–36 VDC input, −40 °C to +70 °C operating range

Key Technical Specifications

• Central Processor: Freescale PowerPC 8349, 667 MHz
• Operating System: QNX Neutrino real-time OS
• Memory: 256 MB DDR SDRAM, 1 GB CompactFlash storage

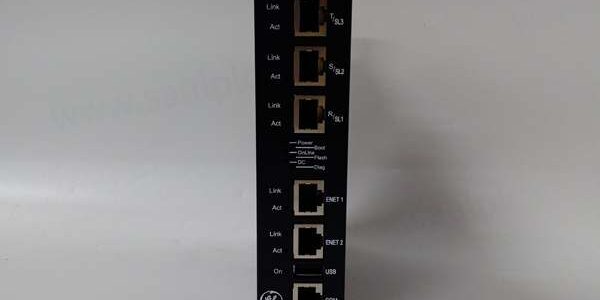

• Front Interfaces: 6 × RJ45 Ethernet ports, USB configuration port, diagnostic LED array
• Networking: IONet for distributed I/O, engineering and HMI communications; IEEE 1588 time synchronization
• Power Input: 18–36 VDC, nominal 24 VDC; typical power draw 12 W
• Operating Temperature: −40 °C to +70 °C
• Humidity Rating: 5%–95% non-condensing
• Mechanical Design: Fanless sealed chassis, cabinet-mounted form factor
• Compliance: Class I Division 2 hazardous location certification, UL, CE
• Supported Architectures: Single, dual redundant, triple modular redundant (TMR) Mark VIeS systems
• Minimum Control Scan: Configurable down to 2 ms for fast protection loops

Product Introduction

Unplanned turbine trips often trace back to controller hardware degradation, making validated spare processing hardware essential for power generation asset uptime. GE operates as the primary computing node for Mark VIe turbine systems, running closed-loop control, safety interlock algorithms, and continuous acoustic monitoring of rotating equipment.

This unit eliminates fan-related failure modes through passive cooling and delivers consistent deterministic timing required for turbine protection functions. The module natively communicates with Mark VIe I/O packs over IONet and supports TMR configurations where safety compliance under IEC 61508 SIL3 is required.

Key Selling Points & Differentiators

1. GE combines main control execution and acoustic monitoring on a single board, removing the need for separate monitoring hardware in turbine cabinets.
2. Fanless mechanical construction reduces routine maintenance and eliminates moving-part faults common in active-cooled controllers.
3. All units complete a full Mark VIe bench validation sequence prior to shipment; signed test documentation available upon formal request. Warranty coverage runs 12 months post delivery.
4. Supports triple modular redundant deployment for Mark VIeS SIL3 safety turbine control schemes.
5. Not recommended for generic PLC retrofits outside Mark VIe ecosystems. This unit cannot run third-party control software and relies on proprietary ControlST firmware.
6. Direct drop-in replacement for matching revision hardware; same connector pinout and mounting footprint to simplify outage changeouts.

Quality Transparency SOP

• Incoming Verification: Serial traceability validation, anti-counterfeit visual inspection, hardware accessory cross-check.
• Live Bench Test: Dedicated Mark VIe test rack, power-on self-test, IONet multi-node handshake, continuous 24-hour load cycling, acoustic monitoring channel verification.
• Electrical Tests: 500 V megger insulation resistance testing, ground continuity validation.
• Firmware Verification: Record installed ControlST firmware revision; no unauthorized firmware modifications performed.
• Final QC & Packaging: Anti-static wrapping, shock-dampened transit carton, signed QC Pass label. Test photos and logs available on request. No zero-failure performance guarantee.

Technical Risk Avoidance Section

Firmware Mismatch Risk Risk: Deploying with unaligned ControlST revisions triggers IONet handshake failures, intermittent I/O dropout, and protection alarm spurious trips. Prevention: Match firmware version to existing site controller revisions before scheduling hardware swap. Field note: Multiple combined-cycle sites have recorded nuisance vibration alarms after mixing mismatched processor firmware during scheduled outages.

Power Budget Miscalculation Risk Risk: Overloading shared 24 VDC cabinet power buses with multiple controllers creates voltage sag and spontaneous module resets. Prevention: Calculate aggregate DC load and allocate dedicated power feeds for safety-related control racks.

ESD Damage Risk Risk: Unprotected handling can damage onboard PHY circuits without immediate visible fault symptoms. Prevention: Maintain grounded wrist strap; keep the module sealed inside anti-static packaging until installation.

Backplane Termination & Cabling Risk Risk: Improperly seated cabling or loose RJ45 terminations introduce latency jitter on IONet links. Prevention: Inspect and torque all connections; run cable validation tests after replacement.

Critical Summary: Always cross-reference hardware revision against site system documentation. This component cannot be substituted with non-UCSA computing hardware on safety-related turbine control networks.

FAQ

1. Q: Can I use alongside older Mark VI controller hardware? A: No. This module is built exclusively for Mark VIe and Mark VIeS architectures; direct interoperability with legacy Mark VI hardware is not supported.
2. Q: Does this controller support hot-swap replacement while the turbine remains online? A: Hot swap works for redundant configurations. Single-controller systems require a controlled shutdown before removing the unit. Brief network interruption will occur during exchange in dual-redundant racks.
3. Q: What lead times apply for available inventory? A: In-stock units ship within 1–3 business days. Backordered allocations require 5–7 week lead times subject to global surplus availability.
4. Q: I operate a Mark VIeS SIL3 turbine safety system. Is this hardware suitable for safety loops? A: Yes, when deployed within validated TMR architectures matching the site OEM bill of materials. Confirm formal safety validation records with your site engineering documentation.
5. Q: What failure modes are excluded under the warranty? A: The 12-month limited warranty covers manufacturing defects. Damage from overvoltage, ESD, improper cabling, or unapproved firmware changes is not covered.
6. Q: Can the acoustic monitoring channels of this unit capture blade pass frequency data for gas turbines? A: Yes, when paired with approved vibration sensors and configured via ControlST. Verify sensor impedance and sampling settings in advance of commissioning.
7. Q: Are alternate UCSA processor variants available with different memory configurations? A: GE produced multiple part number variants. Confirm ordering part numbers against your existing cabinet labeling to avoid memory or interface mismatches.
