Product Core Brief

• Brand: GE (General Electric)
• Model: IS420ESWBH3A
• Series: Speedtronic Mark VIe / Mark VIeS
• Core Function: Unmanaged IONet Ethernet switch for real-time control communications between Mark VIe controllers, I/O packs and HMI nodes
• Type: Industrial unmanaged Layer 2 switch, copper-only variant
• Condition: New Original (New Surplus)
• Status: ⚠️ Discontinued OEM production; limited in-stock inventory
• Key Spec Highlights: 16×10/100Base-TX RJ45, redundant 24–28 VDC power, -40 °C to +70 °C operating range

Key Technical Specifications

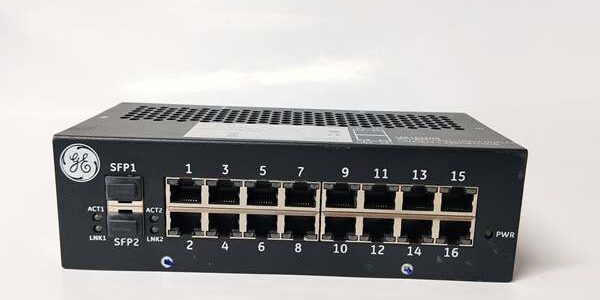

• Port Configuration: 16 × 10/100Base-TX RJ45 copper ports; no fiber uplink ports
• Ethernet Standards: IEEE 802.3, 802.3u, 802.3x
• Negotiation: Auto MDI/MDIX, auto full/half duplex
• Buffer Memory: Minimum 256 KB
• MAC Address Table: 4,000 address entries
• Power Input: Dual redundant 24–28 VDC terminal power
• Mounting: Standard DIN rail or panel mount
• Operating Temperature: −40 °C to +70 °C
• Humidity: 0%–95% non-condensing
• Enclosure: Fanless sealed metal chassis
• Certifications: UL, CE, FCC
• Compatibility: Mark VIe, Mark VIeS, EX2100e excitation control platforms

Product Introduction

Plant outages triggered by IONet communication loss create costly shutdown risk for turbine assets, making qualified replacement hardware critical. GE serves as the dedicated network backbone for Mark VIe distributed control systems, routing low-latency control telemetry across I/O modules, controllers and operator workstations.

This unit eliminates complex software setup as an unmanaged switch, so technicians can deploy without network configuration. It sustains consistent performance across extreme cabinet temperature swings common in power generation facilities and supports redundant power feeds to remove a single point of network failure.

Key Selling Points & Differentiators

1. Purpose-built for GE proprietary IONet; generic industrial switches cannot reliably replace GE on Mark VIe safety control networks.
2. Dual redundant 24–28 VDC power inputs maintain communications if one power feed experiences dropout.
3. Fanless mechanical design removes moving-part failure modes; suitable for continuous unattended plant operation.
4. All units complete standardized bench validation before shipment; test reports available upon request. Warranty coverage runs 12 months from delivery.
5. Not recommended for non-Mark VIe network deployments. This component lacks VLAN and advanced routing functions required for standard IT/OT plant networks.
6. Direct drop-in spare for existing Mark VIe panels; same mechanical footprint and pinout as original factory hardware.

Quality Transparency SOP

• Incoming Verification: Serial number validation, anti-counterfeit visual inspection, accessory and terminal hardware cross-check.
• Live Bench Test: Dedicated Mark VIe test rack, power-on self-test, IONet handshake simulation, continuous 24-hour load cycling.
• Electrical Tests: 500 V megger insulation resistance testing, ground continuity verification.
• Firmware Verification: Record factory baseline firmware revision; no unauthorized firmware modification performed.
• Final QC & Packaging: Anti-static wrapping, shock-dampened carton, signed QC Pass label. Test images and logs available on formal request. No zero-failure performance guarantee.

Technical Risk Avoidance Section

Firmware Mismatch Risk Risk: Deploying mismatched switch firmware can introduce IONet packet loss and intermittent controller timeouts. Prevention: Cross-reference firmware revision against your existing Mark VIe system revision before installation. Field note: Multiple sites have observed transient trip alarms after mixing unvalidated switch firmware versions during outage maintenance.

Power Budget Miscalculation Risk Risk: Overloading shared 24 VDC cabinet supplies with multiple modules causes voltage sag and spontaneous network resets. Prevention: Calculate total DC draw for all IONet hardware and allocate dedicated power feeds where possible.

ESD Damage Risk Risk: Unprotected handling damages internal PHY circuits without immediate visible failure. Prevention: Use grounded wrist straps; keep the module inside anti-static packaging until mounting.

Cabling Termination Errors Risk: Poor RJ45 crimps create high error rates on safety-related control links. Prevention: Test all copper runs with a cable analyzer before commissioning.

Critical Summary: Always validate compatibility against your site’s system documentation; this hardware is not interchangeable with third-party general-purpose switches on safety instrumented Mark VIeS networks.

FAQ

1. Q: Can I substitute a standard commercial Ethernet switch in place of GE on my Mark VIe turbine control network? A: Not for safety or regulatory compliance. Generic switches do not support IONet timing profiles and may introduce unacceptable latency that triggers turbine protection trips.
2. Q: What lead time should I expect for delivery? A: In-stock units ship within 1–3 business days. Backordered allocations require 4–6 week lead times depending on stock rotation.
3. Q: Does this hardware support hot-swap operation while the Mark VIe system remains online? A: The unit itself can be removed and replaced under power, but brief network interruption will occur to connected I/O nodes. Plan maintenance windows accordingly.
4. Q: I run Mark VIeS SIL 3 safety systems. Is this unit qualified for safety-related IONet links? A: Yes, it matches the original Bill of Materials for Mark VIeS deployments. Confirm with your OEM site documentation for formal safety validation records.
5. Q: What does the warranty cover? A: Twelve-month limited warranty covering manufacturing defects. Damage from ESD, incorrect power voltage or improper installation is excluded.
6. Q: How can I confirm the module passes full operational testing before purchase? A: We supply summarized bench test documentation upon request; full raw test data can be shared under non-disclosure terms.
7. Q: Are fiber port variants available if I need long-distance IONet runs? A: Yes, alternate ESWB part numbers include fiber uplinks. This specific model only supports 16 copper RJ45 connections.
