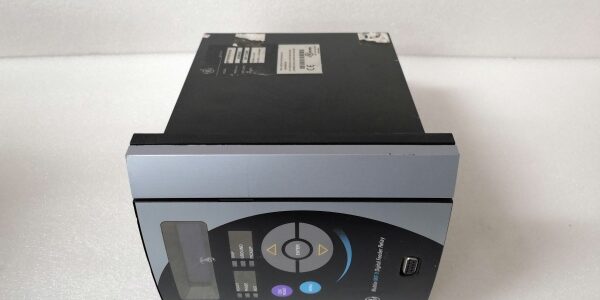

Product Core Brief
- Model: MIFIIPI55E10HI00 3HB002483R0001
- Brand: GE (Multilin / GE Vernova)
- Series: MIFIIPI Feeder Protection Processor Series for Substation Distribution Feeders
- Core Function: Digitize CT/VT measuring signals, execute feeder protection logic, and bridge SCADA communications for GE Multilin UR-series feeder relay racks
- Product Type: DIN rail mounted multifunction feeder protection processor I/O PCB
- Key Specs: 1500 V AC reinforced channel isolation | 16-bit ADC sampling | Dual Gigabit Ethernet + RS485 Modbus ⚠️ EOL — limited stock remaining
Product Introduction
GE 3HB002483R0001 isolates high-potential CT/VT measuring circuits, converts analog power system waveforms to digital data, and runs overcurrent, ground fault, and loss-of-voltage protection algorithms for distribution feeders. This unit differs from analog-only UR8LH by integrating onboard protection logic and dual network communication ports. It completes full channel sampling at 1.0 ms intervals across -40 °C to +70 °C cabinet operating bands and delivers 1000 Mbit/s copper Ethernet throughput for substation DCS data exchange.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Supported measuring inputs | 0–5 A CT secondary; 50–130 V AC VT secondary |
| Channel-to-backplane isolation rating | 1500 V AC reinforced galvanic separation |
| Analog conversion resolution | 16-bit high-precision ADC |
| Full channel scan cycle | 1.0 ms complete CT/VT read cycle |
| Auxiliary supply rating | 24 V DC ±10 % SELV redundant dual feed capable |
| Maximum continuous power consumption | 8 W peak full measuring load |
| Network communication ports | Dual 10/100/1000 Mbps copper Ethernet; 1 rear RS485 Modbus RTU |
| Supported industrial protocols | Modbus TCP, Modbus RTU, DNP3.0, IEC 60870-5-104 |
| Built-in protection elements | Overcurrent, ground fault, voltage loss, phase unbalance, breaker failure supervision |
| Hazardous area certification | ATEX IIC, IECEx; verify with OEM datasheet for zone classification |
| Operating cabinet temperature | -40 °C to +70 °C |
| Storage temperature range | -40 °C to +85 °C |
| Mechanical mounting standard | EN 50022 standard 35 mm DIN rail clip-in housing |
| Net unit weight | 0.45 kg |
| Compliance standards | IEC 61000-6-2, UL 1604, CE industrial certification |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross-reference serial numbers against GE Multilin feeder spare asset database to flag counterfeit hardware. Inspect CT/VT spring terminal blocks and front RJ45 Ethernet ports with a 10x magnifier for oxidation or cracked PCB traces; log serial numbers for distribution substation traceability.
- Live Functional Test: Mount the unit on a grounded DIN rail test bench paired with a UR9HH main relay CPU and variable AC CT/VT simulators. Inject full-range measuring signals, run continuous 26-hour load testing while logging cabinet temperature shifts and ADC measurement linearity drift.
- Electrical Parameter Test: Use a 500 V Megger to measure insulation resistance between high-potential CT/VT terminals and chassis ground; pass threshold set at >10 MΩ. Verify PE protective ground loop resistance below 0.5 Ω with a Fluke 115 multimeter.
- Firmware Verification: Extract and record onboard protection logic firmware revision printed on PCB silkscreen. Photograph Ethernet bus termination jumper positions for field commissioning reference.
- Final QC & Packaging: Wipe plastic unit housing with anti-static microfiber cloth, cap all signal terminal blocks with plastic dust covers. Seal inside a shielding ESD bag, attach a QC Passed label stamped with full test completion date.
Replacement Pitfall Guide
❗ Firmware Mismatch: firmware v1.9 drops backward compatibility with UR9HH CPUs running v7.0 or older build code. Match exact firmware revisions before rack power-up, or all feeder protection elements will fail to pickup fault conditions indefinitely. ❗ DIP Switch / Jumper Misconfiguration: Factory default Ethernet bus termination jumper is disabled. Most multi-feeder substation racks require the resistor enabled on the last processor module in the rail chain; missed settings create cyclic Modbus TCP packet loss under peak feeder load. ❗ Terminal / Cable Incompatibility: This unit uses 2.5 mm high-potential CT/VT spring terminals, unlike low-signal UR8LH 1.5 mm transducer blocks. Undersized wire strands create loose measuring wiring and intermittent voltage/current dropout; always short CT secondary terminals before disconnecting field wiring per GE service manual. Shield drain wires must land on dedicated protective ground bars only. ❗ Power Supply Mismatch: Full CT/VT measuring load draws 8 W peak 24 V DC power. Calculate rack power budget with 20 % overhead; undersized URRHH DC power supplies trigger low-voltage lockout and missing feeder metering readings. ❗ ESD Damage: Dry cabinet environments above 40 % relative static risk degrade internal ADC and Ethernet PHY chips on the unit. Always use an anti-static mat and grounded wrist strap when handling exposed PCB edge connectors and signal terminal pins. Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- UR8LH Analog Input Module → 3HB002483R0001 : Needs Adaptation — UR8LH only processes 4–20 mA low signals, terminal pinout differs for CT/VT wiring
- UR9HH Multilin Protection CPU → 3HB002483R0001 : Direct — full rack communication compatibility, minor protection element scaling adjustment required
- URRHH DIN Rail Power Supply → 3HB002483R0001 : Direct — shares standard 24 V DC rack power rails, no mechanical modification needed
- V7768-312000 VME SBC → 3HB002483R0001 : Incompatible — separate VME64 backplane architecture, no shared feeder protection mapping
