Product Core Brief

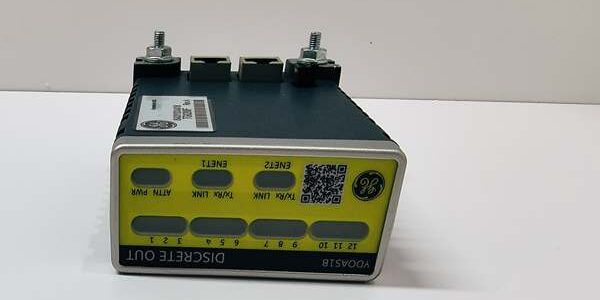

- Model: IS420YDOAS1B
- Brand: GE (Mark VIe / GE Vernova)
- Series: IS420 I/O Pack Series for Mark VIe Medium Gas/Steam Turbine Control Systems
- Core Function: Execute digital output commands from Mark VIe main processors to drive 12 isolated Form-C relay loads, with channel feedback diagnostics for burner, valve, and shutdown interlock circuits
- Product Type: Compact DIN-mount discrete relay output I/O pack
- Key Specs: 12 independent SPDT Form-C relay outputs | Dual redundant IONet Ethernet | S-style conformal PCB coating | TMR triple modular redundancy support ⚠️ EOL — limited stock remaining
Product Introduction
GE receives real-time discrete control frames over dual redundant IONet Ethernet links, switching isolated relay contacts to operate turbine fuel valves, trip interlocks, and auxiliary plant equipment. Each channel includes return feedback monitoring to detect open field wiring or failed relay coils. This unit differs from solid-state IS420YDOBS1B FET output packs by integrating mechanical Form-C relays capable of switching higher AC auxiliary loads. It delivers a fixed 6 ms full channel response delay and maintains stable operation across -40 °C to +70 °C cabinet temperature bands, fully compatible with ControlST V06.01 and newer runtime software.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Discrete output allocation | 12 independent SPDT Form-C relay changeover channels |
| Relay contact rating | 2 A at 250 V AC / 300 V DC resistive auxiliary loads |
| Field-to-logic isolation rating | 2500 V AC reinforced galvanic separation |
| Fixed full-channel response latency | 6 ms command to contact actuation |
| IONet communication ports | Dual front-panel 10/100 Mbps RJ45 copper Ethernet links |
| Rear field wiring connector | DC37 pin connector for direct terminal board routing |
| Auxiliary supply rating | 24 V DC ±10 % SELV three-pin terminal power input |
| Maximum continuous power draw | 12 W peak full 12-relay energized load |
| Redundancy operating modes | Simplex single-path or TMR triple modular fault-tolerant rack configuration |
| PCB environmental protection | S-type industrial conformal coating (verify with OEM datasheet for corrosive atmospheres) |
| Built-in channel diagnostics | Relay coil open, contact fault, wire break, network link loss front LED indication |
| Safety certification | IEC 61508 SIL2 / SIL3 capable with TMR rack setup |
| Operating cabinet temperature | -40 °C to +70 °C forced airflow required |
| Storage temperature range | -40 °C to +85 °C |
| Mechanical dimensions | H 3.25 in × W 1.65 in × D 4.78 in compact enclosure |
| Net unit weight | 0.60 kg |
| Supported ControlST software builds | V06.01 and newer Mark VIe turbine control runtime |
| Compliance standards | IEC 61000-6-2, UL 508, ATEX Zone 2, CE industrial certification |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross-reference serial numbers against GE Mark VIe turbine spare asset database to flag counterfeit hardware. Inspect front RJ45 Ethernet ports, DC37 rear edge connector, and front tri-color status LED array with a 10x magnifier for pin oxidation or cracked PCB traces; log serial numbers for gas turbine power plant traceability.
- Live Functional Test: Mount the unit on a grounded Mark VIe test rack paired with a BPPC main CPU and resistive relay load banks. Cycle all 12 Form-C output channels continuously for 26 hours while logging cabinet temperature shifts and measuring contact resistance drift and Ethernet communication consistency.
- Electrical Parameter Test: Use a 500 V Megger to measure insulation resistance between relay field terminals and chassis ground; pass threshold set at >10 MΩ. Verify PE protective ground loop resistance below 0.5 Ω with a Fluke 115 multimeter.
- Firmware Verification: Extract and record onboard I/O processing firmware revision printed on PCB silkscreen. Photograph dual Ethernet termination jumper positions for field commissioning reference.
- Final QC & Packaging: Wipe metal unit housing with anti-static microfiber cloth, cap all RJ45 and DC37 terminal ports with plastic dust covers. Seal inside a shielding ESD bag, attach a QC Passed label stamped with full test completion date.
Replacement Pitfall Guide
❗ Firmware Mismatch: firmware v05.00 drops backward compatibility with Mark VIe ControlST V06.00 or older runtime software. Match exact I/O pack firmware and ControlST versions before rack power-up, or all relay output commands fail to actuate indefinitely. ❗ DIP Switch / Jumper Misconfiguration: Factory default IONet bus termination jumper is disabled. Most multi-pack turbine control racks require the resistor enabled on the last I/O pack in the DIN rail chain; missed settings create cyclic Ethernet packet loss under full 12-channel relay load. ❗ Terminal / Cable Incompatibility: This unit uses DC37 rear field wiring connectors, unlike low-signal UR8LH spring terminal I/O modules. Unshielded CAT5 cabling routed alongside high-current turbine power wiring generates periodic network communication chatter; shield drain wires must land on dedicated rack ground bars only. ❗ Power Supply Mismatch: Full 12-relay energized load draws 12 W peak 24 V DC auxiliary power. Calculate rack power budget with 20 % overhead; undersized station DC power supplies trigger low-voltage lockout and blank front panel status LEDs. ❗ ESD Damage: Dry cabinet environments above 40 % relative static risk degrade onboard Ethernet PHY and relay driver chips on the unit. Always use an anti-static mat and grounded wrist strap when handling exposed PCB edge connectors and front RJ45 ports. Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- IS420YDOBS1B → : Needs Adaptation — BS1B uses solid-state FET outputs, no mechanical Form-C relay hardware
- BPPC Mark VIe Main CPU → : Direct — identical IONet communication protocol, minor TMR mode parameter adjustment required
- URRHH UR Series Power Supply → : Incompatible — separate UR relay chassis power architecture, no shared 24 V rail pin mapping
- V7768-312000 VME SBC → : Incompatible — legacy VME64 backplane architecture, no IONet Ethernet interface support
