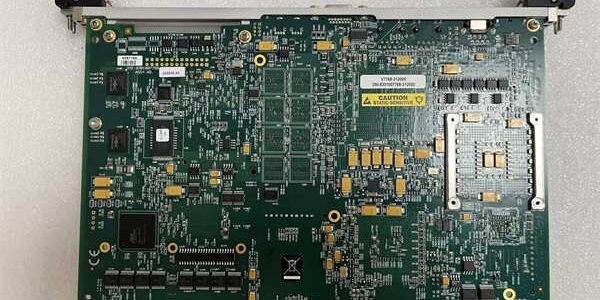

Product Core Brief
- Model: V7768-312000
- Brand: GE
- Series: VME64 Single Board Computer Platform (Former GE Fanuc VMIC)
- Core Function: 6U single-slot embedded CPU executing deterministic real-time control logic for Mark VIe turbine VME racks
- Product Type: Air-cooled VMEbus single board computer (SBC)
- Key Specs: 2.16 GHz Intel Core 2 Duo | Max 2 GB DDR2 SDRAM | Dual Gigabit Ethernet | Single PCI-X PMC slot ⚠️ EOL — limited stock remaining
Product Introduction
GE hosts real-time operating systems on VME64 backplanes, processing turbine analog I/O and managing redundant plant SCADA network traffic. It uses the Intel 945GME chipset to deliver consistent closed-loop scan timing under full rack load. This unit differs from the dual-slot V7769 variant by fitting one standard VME slot while retaining identical PMC expansion and rear transition module compatibility. It supports VxWorks 653 safety-certified runtime and holds watchdog timer resolution adjustable in 100 ms increments across 0 °C to +60 °C cabinet bands.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Central processing unit | Intel Core 2 Duo 2.16 GHz, 4 MB shared L2 cache |
| Chipset architecture | Intel 945GME Express + ICH7-M southbridge |
| Maximum system memory | 2 GB total DDR2 667 MHz SDRAM (two SODIMM sockets) |
| Local storage interfaces | 2 SATA rear P2 routed ports; front CompactFlash boot slot |
| Network controllers | Dual independent 10/100/1000 Mbps Gigabit Ethernet PHYs |
| USB 2.0 allocation | 2 front panel ports, 2 rear P2 routed ports |
| Serial communication ports | 2x 16550 UART (1 front DB-9, 1 rear P2 routed) |
| Expansion site | Single 133 MHz PCI-X PMC mezzanine slot (VITA 35 compliant) |
| VMEbus compliance | VME64, A16/A24/A32 addressing, 2eVME high-speed transfers |
| Watchdog timer range | 100 ms to 60 second programmable timeout |
| Operating cabinet temperature | 0 °C to +60 °C forced airflow; verify extended temp with OEM datasheet |
| Storage temperature range | -40 °C to +85 °C |
| Mechanical form factor | Single-width 6U Eurocard VME slot |
| Net unit weight | 0.81 kg |
| Supported OS builds | VxWorks, VxWorks 653, QNX, Linux, Windows XP Embedded |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross-reference serial numbers against GE Mark VIe spare asset database to flag counterfeit hardware. Inspect front RJ45, serial, and USB ports with a 10x magnifier for bent pins or cracked PCB traces; log serial numbers for gas turbine plant traceability.
- Live Functional Test: Install the unit on a VME64 test backplane paired with analog turbine signal I/O boards. Run continuous 26-hour load testing while logging cabinet temperature swings and verifying dual Ethernet packet transmission at 100 % throughput.
- Electrical Parameter Test: Use a 500 V Megger to measure insulation resistance between signal traces and chassis ground; pass threshold set at >10 MΩ. Verify PE ground loop resistance below 0.5 Ω with a Fluke 115 multimeter.
- Firmware Verification: Extract and record BIOS boot revision printed on PCB silkscreen. Photograph VME system controller DIP switch and watchdog jumper positions for field commissioning reference.
- Final QC & Packaging: Wipe front panel connectors with anti-static microfiber cloth, cap all Ethernet and serial ports with plastic dust covers. Seal inside a shielding ESD bag, attach a QC Passed label stamped with full test completion date.
Replacement Pitfall Guide
❗ Firmware Mismatch: BIOS v2.2 drops backward compatibility with Mark VIe racks running VxWorks v6.2 runtime builds. Match exact BIOS and OS firmware versions before rack power-up, or all turbine control logic will fail POST and lock at boot screen indefinitely. ❗ DIP Switch / Jumper Misconfiguration: Factory default VME system controller switch is disabled. Most multi-CPU turbine racks require the controller enabled on the leftmost slot; missed settings create cyclic VME bus timeouts and missing analog process values. ❗ Terminal / Cable Incompatibility: This unit uses standard RJ45 Ethernet pinout, unlike older VMIVME-7600 series D-Sub bus connectors. Unshielded CAT5 cabling routed alongside power wiring generates periodic Ethernet packet retries; shield drain wires must land on dedicated rack ground bars only. ❗ Power Supply Mismatch: Full CPU + dual Ethernet peak draw hits 34 W. Calculate rack power budget with 20 % overhead; undersized 5 V / 3.3 V backplane supplies trigger under-voltage shutdown and corrupted CompactFlash boot images. ❗ ESD Damage: Dry cabinet environments above 40 % relative static risk degrade onboard Ethernet PHY and memory controller chips on the unit. Always use an anti-static mat and grounded wrist strap when accessing exposed PCB edge connectors and memory sockets. Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- 7769 → : Needs Adaptation — dual-slot mezzanine expansion removed, identical VME pinout
- VM7807 → : Incompatible — Pentium M architecture, different VME memory mapping
- Mark VIe VME64 lane → : Direct — full backplane communication compatibility, minor boot device parameter reconfiguration required
