Product Core Brief

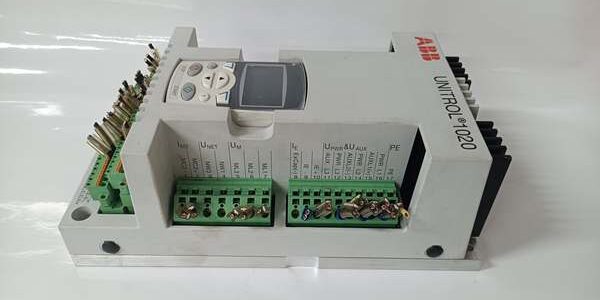

- Model: UNITROL 1020 (Order Code: 3BHE030579R0003)
- Brand: ABB
- Series: UNITROL 1000 Compact Static Excitation AVR Platform
- Core Function: Digital automatic voltage regulator that stabilizes generator terminal voltage and manages field excitation current
- Product Type: Panel-mount digital excitation control unit
- Key Specs: 20 A continuous field output | Dual independent control/comm processors | Modbus TCP/RS485 comms | Condition: New Original (New Surplus)
Product Introduction
ABB UNITROL 1020 delivers closed-loop excitation control for synchronous machines up to 80 MVA, using IGBT power stages to adjust rotor field current in real timeeero. It samples PT voltage and CT current signals to maintain tight voltage stability across variable grid loads. This unit outperforms the smaller UNITROL 1010 by doubling maximum continuous field current and adding rotating diode monitoring (RDM). It holds ±0.5% steady-state voltage error across -20 °C to +70 °C cabinet operating ranges and stores 10,000 timestamped fault events in onboard flash memory.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Continuous field output current | 20 A at 55 °C; 10 A at 70 °C |
| Short-term overload field current | 38 A for maximum 10 seconds |
| Auxiliary supply input | 9–250 V AC single/3-phase; 18–300 V DC |
| Max unit power consumption | 40 W |
| Voltage regulation steady-state accuracy | ±0.5 % FS |
| Control response time | ≤100 ms full load step |
| Communication ports | 10/100 Ethernet (Modbus TCP), RS485 (Modbus RTU), USB local service |
| Configurable I/O | 4 analog inputs (4–20 mA), 6 digital inputs, 4 relay outputs |
| Storage capacity | 10,000 timestamped fault & event logs |
| Operating ambient temperature | -20 °C to +70 °C sealed cabinet |
| Humidity rating | 5–95 % RH non-condensing |
| Mechanical mounting | Standard 2U 19-inch rack or direct panel cutout |
| Net weight | 3.5 kg |
| Compliance standards | IEC 60034-1, IEEE 421.5, CE, UL certified |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross-reference serial numbers against ABB power control spare database to flag counterfeit hardware. Inspect terminal blocks, Ethernet ports and front HMI with a 10x magnifier for pin corrosion or cracked housing; log serial numbers for power plant traceability.
- Live Functional Test: Mount the unit on a 19-inch test rack paired with PT/CT signal simulators and resistive field load banks. Run continuous 26-hour load testing while logging cabinet temperature swings and recording voltage regulation deviation under full load steps.
- Electrical Parameter Test: Use a 500 V Megger to measure insulation resistance between field power terminals and chassis ground; pass threshold set at >10 MΩ. Verify PE ground loop resistance below 0.5 Ω with a Fluke 115 multimeter.
- Firmware Verification: Extract and record internal DSP firmware revision from onboard PCB silkscreen. Photograph Ethernet IP DIP switch positions and I/O jumper layouts for field commissioning reference.
- Final QC & Packaging: Wipe front HMI and terminal housing with anti-static microfiber cloth, cap all communication ports with plastic dust covers. Seal inside a shielding ESD bag, attach a QC Passed label stamped with full test completion date.
Replacement Pitfall Guide
❗ Firmware Mismatch: UNITROL 1020 firmware v6.3xx drops backward compatibility with legacy UNITROL 1000-7 rack logic. Match exact firmware builds before rack power-up, or synchrocheck interlocks will lock breaker close commands indefinitely. ❗ DIP Switch / Jumper Misconfiguration: Factory default Ethernet termination resistors are disabled. Most plant SCADA trunk layouts require the resistor enabled on the last controller in the chain; missed settings create cyclic Modbus TCP packet loss under peak generator load. ❗ Terminal / Cable Incompatibility: This unit uses 4 mm spring power terminals, unlike older UNITROL 1000-15 blocks sized for 2.5 mm wire. Oversized cable strands cause loose field wiring and intermittent excitation dropout; shield drain wires must land on dedicated protective ground terminals only. ❗ Power Supply Mismatch: Full 20 A field output draws 40 W peak auxiliary power. Calculate rack power budget with 20 % overhead; undersized AC/DC auxiliary supplies trigger low-voltage lockout and zero field current delivery. ❗ ESD Damage: Dry cabinet environments above 40 % relative static risk degrade internal DSP and IGBT gate driver chips on the unit. Always use an anti-static mat and grounded wrist strap when accessing exposed terminal and PCB wiring. Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- UNITROL 1000-7 → UNITROL 1020 : Direct — electrical I/O pinout fully backward compatible, minor software parameter re-tuning required
- UNITROL 1010 → UNITROL 1020 : Needs Adaptation — maximum field current capacity increases, cabinet rack mounting depth differs
- UFC760BE143 → UNITROL 1020 : Incompatible — separate Masterbus300 rack bus architecture, no direct signal mapping
