Product Core Brief

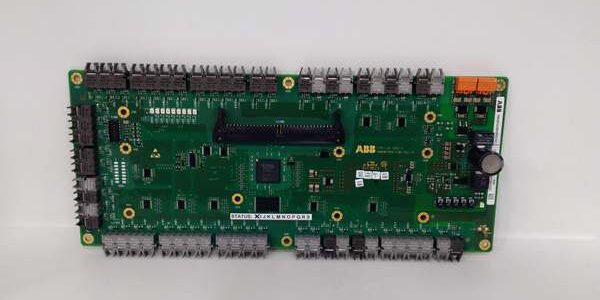

• Model: UFC921A101 3BHE024855R0101
• Brand: ABB
• Series: S800 I/O for UNITROL Static Excitation & AC800PEC Control Systems
• Core Function: Process eight isolated 4–20 mA transducer signals for generator condition monitoring
• Product Type: DIN rail mounted analog input signal conditioning unit
• Key Specs: 8 galvanically isolated channels | 1500 V AC isolation | ModuleBus native communication ⚠️ EOL — limited stock remaining

Product Introduction

ABB accepts raw 4–20 mA field signals from temperature, rotor current, and stator load transducers. It converts analog values to digital frames for transmission over S800 ModuleBus. This unit differs from the UFC911 series by doubling channel count while holding 0.1 % full-scale accuracy across 0 °C to 60 °C cabinet ranges. It cuts required DIN rail space by 40 % for multi-transducer excitation panels.

Key Technical Specifications

Quality Control Process (Engineer’s Perspective)

1. Incoming Verification: Cross-reference serial numbers against ABB S800 spare database to flag counterfeit hardware. Inspect terminal blocks and D-Sub connectors with a 10x magnifier for pin corrosion or bent contacts; log serial numbers for plant traceability.
2. Live Functional Test: Mount the unit on a DIN rail test bench paired with a CI840 communication module. Inject calibrated 4–20 mA signals to all eight channels, run continuous 26-hour load testing while logging cabinet temperature fluctuations.
3. Electrical Parameter Test: Use a 500 V Megger to measure insulation resistance between each channel and chassis ground; pass threshold set at >10 MΩ. Verify PE ground loop resistance below 0.5 Ω with a Fluke 115 multimeter.
4. Firmware Verification: Extract and record internal firmware revision printed on PCB silkscreen. Photograph ModuleBus DIP switch positions for field commissioning reference.
5. Final QC & Packaging: Wipe the unit housing with anti-static microfiber cloth, cap all ports with plastic dust covers. Seal inside a shielding ESD bag, attach a QC Passed label stamped with test completion date.

Replacement Pitfall Guide

❗ Firmware Mismatch: Newer firmware revisions drop backward compatibility with CI810 communication modules running v1.0 code. Match exact firmware builds before rack power-up, or bus scan faults persist indefinitely. ❗ DIP Switch / Jumper Misconfiguration: Factory default ModuleBus termination resistor is disabled. Most field clusters require the resistor enabled on the last I/O unit in the trunk; missed settings create cyclic packet loss under full transducer load. ❗ Terminal / Cable Incompatibility: This unit uses 2.5 mm spring terminals, unlike older UFC911 blocks sized for 1.5 mm wire. Oversized cable strands cause loose connections and intermittent channel dropout; shield drain wires must land on dedicated ground terminals only. ❗ Power Supply Mismatch: Eight active transducers draw 120 mA peak. Calculate rack power budget with 20 % overhead; undersized 24 V supplies trigger low-voltage lockout and zero channel readings. ❗ ESD Damage: Dry cabinet environments above 40 % static risk degrade internal ADC chips on the unit. Always use an anti-static mat and grounded wrist strap when handling exposed PCB pins. Keep these in mind and you’ll cut 90% of rework time.

Compatibility Matrix & Benchmarks

Compatibility Matrix

• UFC911B101 → : Needs Adaptation — wiring terminal pinout differs, rack power draw increases
• UFC765AE102 → : Incompatible — different fast/slow bus domain architecture
• TU847 → : Direct — shares identical ModuleBus D-Sub25 cabling standard
