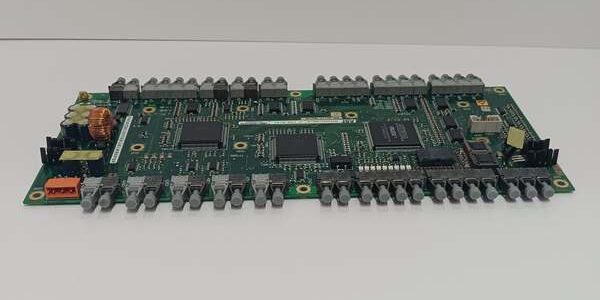

Product Core Brief

• Model: UFC760BE142, OEM article number 3BHE004573R0142
• Brand: ABB
• Series: UNITROL static excitation & Advant OCS power protection rack hardware
• Core Function: Samples generator/grid PT analog signals, executes closed-loop PID excitation trimming and cross-channel synchrocheck interlock logic for generator grid paralleling
• Product Type: Horizontal rack-slotted multi-channel measuring & communication control PCB
• Key Specs: Galvanically isolated PT analog inputs | Dual 10/100 Ethernet + Masterbus300 | 32-bit real-time RISC processor
• Note: Full platform end-of-life; factory sealed new assemblies and fully cyclic load-tested surplus available for thermal, hydro and combined-cycle power plant cabinet maintenance

Key Technical Specifications

• PT secondary measuring input range: 50–130 VAC single-phase, 1500VAC channel-to-backplane galvanic isolation
• Analog conversion resolution: 16-bit ADC sampling, ±0.1% full scale accuracy at 25°C ambient
• Communication interfaces: Dual redundant RJ45 Ethernet (Modbus TCP/SynView), RS485 Modbus RTU, proprietary Masterbus300 rack backplane
• Auxiliary operating supply: 24 VDC ±10% SELV, max 18W continuous power draw
• Non-volatile storage: Flash memory stores excitation tuning parameters, fault event logs and out-of-phase waveform records
• Safety compliance: IEC 61508 SIL 2, IEC 60255-127 synchrocheck standard, EU RoHS, CE certified
• Local diagnostic indicators: Multi-color front LEDs for RUN power, COM bus traffic, CH1/CH2 measuring fault states
• PCB surface treatment: ISA G3 conformal coating standard for coastal high-humidity substation environments
• Mechanical mounting: Standard horizontal UNITROL rack clip-in slot design
• Operating ambient temperature: -20°C to +60°C sealed cabinet interior; storage -40°C to +85°C
• Humidity tolerance: ≤75% RH non-condensing below 55°C
• Net unit weight: 0.74 kg
• Overall dimensions: 178 mm H × 47 mm W × 233 mm D

Product Introduction

This rack-mounted board continuously compares generator terminal PT signals against grid reference voltage, outputting analog trim commands to excitation and turbine governor hardware to maintain voltage, frequency and phase angle within safe paralleling window limits. Dual redundant Ethernet ports eliminate single-point communication failure for remote parameter adjustment and fault waveform retrieval, and independent channel isolation suppresses ground loop transients induced by nearby variable frequency drives and MCC motor starters.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference serial number against ABB UNITROL power protection spare asset database to filter counterfeit assemblies; inspect dual Ethernet RJ45 ports, rear backplane gold edge pins and front LED array with a 10x magnifier for thermal discoloration or pin corrosion; log serial numbers for full generator protection traceability records.
2. Live Testing: Seat the unit on a standard Advant test rack paired with a SYN5202 dual-channel synchronizer and four calibrated AC signal simulators for generator/grid PT loops; supply rated 24VDC rack power; run a continuous 24-hour cycle test including slip deviation sweeps, wire break fault injection and primary Ethernet cable pull failover validation.
3. Electrical Testing: Use a Fluke 115 insulation tester to verify ≥10MΩ isolation between each PT measuring channel and cabinet chassis ground; measure PE continuity resistance below 0.5Ω.
4. Firmware/Config Backup: Photograph front LED fault mapping and Ethernet IP DIP switch positions; record factory firmware version printed on internal PCB silkscreen to match site existing excitation control logic revisions.
5. Final QC & Packaging: Wipe front panel surfaces with static-dissipative microfiber cloth; cap Ethernet and PT terminal blocks with insulating dust covers; seal the assembly inside a moisture-barrier ESD bag, attach a printed QC tag with full 24-hour dual-channel paralleling cycle test timestamp, then pack into foam lined transit cartons.

Installation Pitfalls & Guide (Engineer to Engineer)

❗ Firmware revision mismatch disables dual-loop cross-check fault suppression: Older firmware builds use outdated slip detection algorithms; matching the exact firmware version of the original hardware before power-on prevents constant false synchrocheck fault interlocks. ❗ Reversed PT secondary wiring creates permanent 180° phase offset: Swapped measuring wires lock the affected loop out of all paralleling window calculations until polarity correction and full rack power cycle completion. ❗ Unshielded Ethernet cabling corrupts fault waveform records: Cable runs longer than 12m near VFD motor drives generate periodic signal noise that triggers incomplete Modbus TCP packet reception and missing fault history data. ❗ ESD discharge destroys internal ADC sampling ICs: Bare finger contact with PCB measuring traces disables one or multiple PT input loops, requiring full unit replacement and multi-day generator outage windows. ❗ Hot-swap energized PT secondary circuits generates lethal open-circuit voltage: Removing the unit under live rack power creates high secondary surge voltage spikes that damage adjacent synchronizer and protection relay hardware in the cabinet.

4-step replacement guide

1. Pre-install: Lock out and tag cabinet 24VDC auxiliary power supply breaker; short all PT secondary test switches via test switch hardware; wait 10 minutes for internal logic capacitors to fully discharge; don ESD wrist strap; capture photos of dual PT measuring wiring, dual Ethernet cabling and Ethernet IP DIP switch layout.
2. Removal: Disconnect all PT measuring wires and dual Ethernet communication cables channel by channel following captured photos; release four front panel mounting fasteners, pull the old unit straight out of the rack slot without twisting rear wiring harness edge connector pins.
3. Install: Set DIP switches on the new hardware to match photographed IP address values; seat the unit flush against the rack frame to maintain IP20 internal enclosure rating; re-terminate all dual PT and Ethernet wiring matching captured polarity sequence, double-check torque fastener tightness to OEM specifications.
4. Power-on Test: Restore cabinet 24VDC auxiliary power; confirm steady green RUN LED and active front traffic indicators for both measuring channels; inject calibrated generator/grid PT signals to validate automatic voltage/frequency trimming response; simulate primary Ethernet cable pull to confirm seamless secondary port communication failover without paralleling command interruptions.

FAQ

Q: Can this unit operate with only one PT input channel connected? A: It will execute synchronization logic on the single active loop, but dual-channel cross-wiring fault detection is fully disabled. This removes a critical SIL2 safety monitoring layer and violates plant SIS operational compliance documentation for dual-busbar power station layouts. Q: Is hot-swapping supported while cabinet 24VDC auxiliary power and PT circuits remain energized? A: It is not supported. Live extraction creates lethal open-circuit PT secondary voltage transients and disrupts the rack’s shared Masterbus300 differential clock signals, leaving generator operation unmonitored during the replacement window. Full power lockout and PT shorting via test switches are mandatory before disassembly. Q: What warranty coverage applies to stocked units? A: Factory-new original excitation interface boards carry a 12-month OEM warranty covering dual PT analog sampling circuits, redundant Ethernet transceivers, breaker close relay outputs and front diagnostic LED arrays. Cyclic load-tested surplus units come with a 6-month functional warranty. Damage from reversed PT wiring, ungrounded ESD handling or energized hot-swap removal voids all SIL2 certification and warranty validity. Q: What hardware replaces this unit for new power station builds? A: New UNITROL SYNCHROTACT deployments use UFC760BE143 with expanded fault waveform recording and enhanced out-of-phase detection algorithms. This variant remains approved only for one-to-one maintenance replacement of pre-2021 installed dual-channel excitation control racks. Q: Will stored synchronization threshold parameters be lost after full cabinet power outage? A: All voltage deviation, slip and phase angle window setpoints save to on-board non-volatile Flash memory, so power loss does not erase site-specific commissioning tuning values. Only physical DIP switch Ethernet IP address configurations require manual matching after hardware swap. Q: What are the most common failure modes for a faulty unit? A: Persistent red FAULT LED on one or both channels with correct PT wiring sequence, failure to output trim adjustment signals to turbine/excitation control hardware, loss of automatic redundant Ethernet port failover, severe measurement drift between the two isolated PT loops, blank front LED display with normal 24VDC auxiliary supply, and inability to log dual-channel paralleling fault events to remote SCADA servers.
