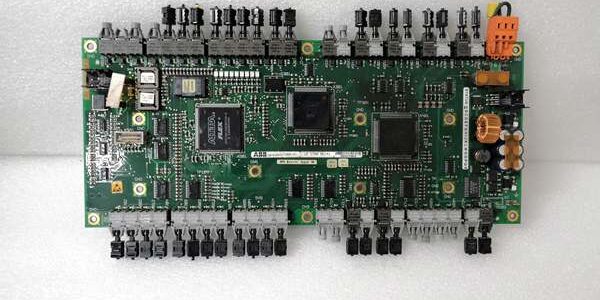

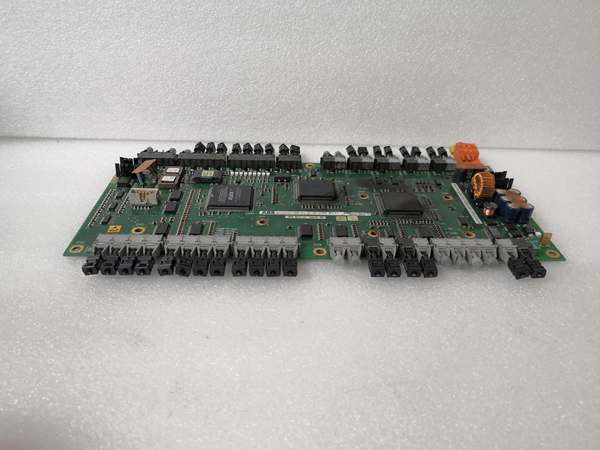

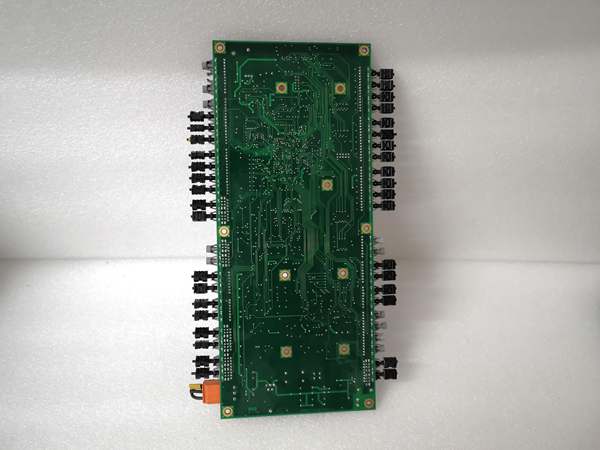

Product Core Brief

• Model: UFC760BE141, OEM article number 3BHE004573R0141
• Brand: ABB
• Series: UFC760 series interface board for UNITROL static generator excitation & Advant power control systems
• Core Function: Collects analog PT voltage, stator current and breaker status signals, delivers real-time trim signals to excitation power stages via multi-protocol communication
• Product Type: Horizontal rack-slotted multi-channel measuring & communication interface PCB
• Key Specs: 32-bit RISC processor | Masterbus300 + Modbus RTU | 24VDC SELV auxiliary supply
• Note: Full platform end-of-life; factory sealed new assemblies and fully cyclic load-tested surplus available for thermal, hydro and cogeneration power plant cabinet maintenance

Key Technical Specifications

• Processing unit: 32-bit industrial RISC processor, 128MB RAM, 64MB non-volatile Flash memory
• Analog measuring inputs: Multi-channel galvanically isolated PT secondary loops 50–130 VAC, 4–20mA transducer inputs
• Communication ports: ABB Masterbus300 rack backplane, RS485 Modbus RTU, dual RJ45 10/100 Ethernet
• Auxiliary operating supply: 24 VDC ±10% SELV, max 18W continuous power draw
• Isolation rating: 1500VAC between high-potential PT measuring circuits and backplane logic
• Diagnostic indicators: Front array of multi-color LEDs for power, bus communication, channel fault states
• PCB protection: ISA G3 conformal coating standard for coastal high-humidity substation environments
• Mechanical mounting: Standard horizontal Advant / UNITROL rack clip-in slot design
• Operating ambient temperature: -20°C to +60°C sealed cabinet interior; storage -40°C to +85°C
• Humidity tolerance: ≤95% RH non-condensing below 55°C
• Net unit weight: 0.74 kg
• Compliance standards: IEC 60255, EU RoHS 2011/65/EU, CE certified

Product Introduction

This rack-mounted board continuously samples generator and grid analog measuring signals to execute closed-loop excitation voltage and speed trim logic for safe generator grid paralleling. Its dual Ethernet ports enable redundant remote configuration and fault waveform storage via ABB dedicated PC software, and galvanic channel isolation eliminates measurement drift caused by ground loop transients near variable frequency drives and motor control centers.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference serial number against ABB UNITROL excitation spare asset database to filter counterfeit assemblies; inspect RJ45 Ethernet ports, front LED array and rear backplane gold edge pins with a 10x magnifier for bent pins or thermal discoloration; log serial numbers for full generator protection traceability records.
2. Live Testing: Seat the unit on an Advant test rack paired with a SYN5202 dual-channel synchronizer and calibrated AC signal simulators; supply rated 24VDC rack power; run a continuous 24-hour cycle test including slip deviation sweeps, PT wire break fault injection and Ethernet event log upload validation.
3. Electrical Testing: Use a Fluke 115 insulation tester to verify ≥10MΩ isolation between each PT measuring channel and cabinet chassis ground; measure PE continuity resistance below 0.5Ω.
4. Firmware/Config Backup: Photograph Ethernet IP DIP switch positions and front LED status mapping; record factory firmware revision printed on internal PCB silkscreen to match site existing excitation control logic versions.
5. Final QC & Packaging: Wipe PCB surface with static-dissipative microfiber cloth; cap Ethernet and analog terminal blocks with insulating dust covers; seal the assembly inside a shielding ESD bag, attach a printed QC tag with full 24-hour excitation cycle test timestamp, then pack into foam lined transit cartons.

Installation Pitfalls & Guide (Engineer to Engineer)

❗ Firmware revision mismatch disables dual-loop cross-check logic: Older firmware builds contain inaccurate slip detection algorithms; match the exact firmware version of the original hardware before power-on to avoid constant synchrocheck fault interlocks. ❗ Reversed PT secondary wiring creates permanent 180° phase offset: Swapped voltage measuring leads lock the affected loop out of all paralleling window calculations until polarity correction and full rack power cycle. ❗ Unshielded Ethernet cabling generates constant Modbus TCP retries: Cable runs longer than 12m near VFD motor drives induce periodic signal noise that corrupts fault waveform data storage. ❗ ESD discharge destroys internal analog sampling ADC ICs: Bare finger contact with PCB measuring traces disables one or multiple PT input loops, requiring full unit replacement and multi-day generator outage windows. ❗ Hot-swap energized PT secondary circuits creates lethal open-circuit voltage: Removing the unit under live rack power disrupts Masterbus300 clock signals and forces the paired synchronizer to cold restart, opening an unprotected generator operation window.

4-step replacement guide

1. Pre-install: Lock out and tag cabinet 24VDC auxiliary power supply breaker; short all PT secondary test switches via test switch hardware; wait 10 minutes for internal logic capacitors to fully discharge; don ESD wrist strap; capture photos of dual PT measuring wiring, Ethernet cabling and Ethernet IP DIP switch layout.
2. Removal: Disconnect all PT measuring wires and Ethernet communication cables channel by channel; release four front panel mounting fasteners, pull the old unit straight out of the rack slot without twisting rear wiring harness edge pins.
3. Install: Set DIP switches on the new hardware to match photographed IP address values; align the board with rack slot rails and seat fully inward until the latch clicks locked; re-terminate all dual PT and Ethernet wiring matching captured photos, double-check each PT loop polarity sequence.
4. Power-on Test: Restore cabinet 24VDC auxiliary power; confirm steady green RUN LED and active bus communication indicator; inject calibrated generator/grid PT signals to validate automatic voltage/frequency trimming logic; simulate primary Ethernet cable pull to confirm automatic secondary port communication failover without paralleling interruptions.

FAQ

Q: Can this unit operate without paired turbine governor and excitation power stage hardware? A: It will sample PT voltage signals and display local measurements, but all active trim commands for generator voltage and slip adjustment are disabled. Without matched governor/excitation hardware, the system cannot achieve valid paralleling window parameters and blocks breaker close commands. Q: Is hot-swapping supported while cabinet 24VDC auxiliary power and PT circuits stay energized? A: It is not supported. Live extraction creates lethal open-circuit PT secondary voltage transients and disrupts the rack’s shared Masterbus300 clock signals, leaving generator operation unmonitored during the replacement window. Full power lockout and PT shorting via test switches are mandatory before disassembly. Q: What warranty coverage applies to stocked units? A: Factory-new original excitation interface boards carry a 12-month OEM warranty covering PT analog sampling circuits, Ethernet transceivers, backplane communication hardware and front diagnostic LED arrays. Cyclic load-tested surplus units come with a 6-month functional warranty. Damage from reversed PT wiring, ungrounded ESD handling or energized hot-swap removal voids all coverage. Q: What hardware replaces this unit for new power station builds? A: New UNITROL deployments use UFC760BE143 with expanded fault waveform recording and enhanced slip detection algorithms. This variant remains approved only for one-to-one maintenance replacement of pre-2021 installed excitation interface boards. Q: Will stored synchronization threshold settings be lost after full cabinet power outage? A: All voltage, slip and phase angle window parameters save to on-board non-volatile Flash memory, so power loss does not erase site-specific commissioning values. Only physical DIP switch Ethernet IP address configurations require manual matching after hardware swap. Q: What are the most common failure modes for a faulty unit? A: Persistent red FAULT LED with correct PT wiring sequence, failure to output trim adjustment signals to turbine/excitation control hardware, loss of automatic redundant Ethernet port failover, severe measurement drift between isolated PT loops, blank front status LED array with normal 24VDC auxiliary supply, and inability to log paralleling fault events to remote SCADA servers.
