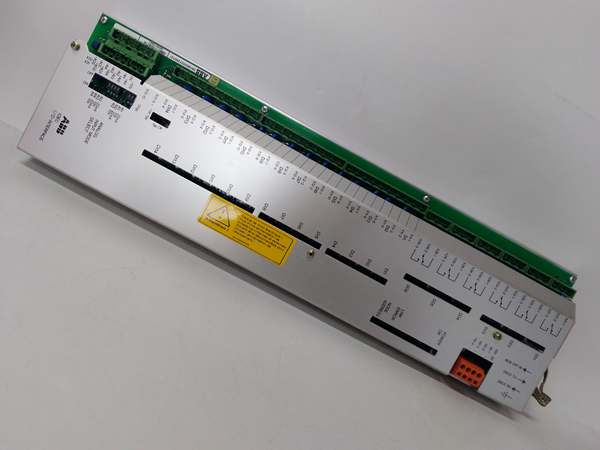

Product Core Brief

• Model: UFC719AE01
• Brand: ABB
• Series: AC800PEC power electronic control platform for UNITROL excitation, SVC, wind converter systems
• Core Function: Executes high-speed closed-loop control of generator excitation, static var compensation and variable frequency converter power stages
• Product Type: Rack-slotted high-performance FPGA + CPU control module
• Key Specs: Dual redundant communication interfaces | 24VDC SELV auxiliary supply | FPGA real-time processing
• Note: Active OEM spare lifecycle; factory sealed new assemblies and fully cyclic load-tested surplus available for hydro, thermal and wind power plant cabinet maintenance

Key Technical Specifications

• Processing architecture: Combined industrial CPU + high-speed FPGA for microsecond control loop execution
• Auxiliary operating supply: 24 VDC ±10% SELV, max 35 W continuous power draw
• Communication interfaces: Front RJ45 Ethernet (IEC 61850, Modbus TCP), rear multi-mode fiber port, RS232 local service port
• Field signal compatibility: ±10V analog measuring inputs for PT voltage, stator current and winding temperature signals
• Non-volatile storage: Flash memory stores control logic, disturbance waveforms and fault event logs, no backup battery required
• PCB protection: ISA G3 conformal coating standard for coastal, offshore and chemical corrosive cabinet environments
• Mechanical mounting: Standard horizontal 19-inch rack slot clip-in design
• Cooling system: Fanless natural convection heat sink, no forced air cooling
• Operating ambient temperature: -10°C to +60°C sealed cabinet; storage -40°C to +85°C
• Humidity tolerance: ≤75% RH non-condensing below 55°C
• Safety compliance: IEC 61508 SIL2 capable, IEC 60255, CE, UL 508 certified
• Front diagnostic indicators: RUN, COM, FAULT, fiber link status LEDs
• Net unit weight: 1.2 kg

Product Introduction

This rack-mounted control board runs real-time power electronic regulation algorithms for generator excitation systems, static var compensators and wind turbine full power converters. The integrated FPGA delivers fast response to voltage transients that protect generator stator windings and grid stability. Dual redundant communication paths eliminate single-point telemetry failure, and local service port access lets technicians upload updated control logic without full cabinet shutdown windows.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference serial number against ABB power converter spare asset database to filter counterfeit assemblies; inspect Ethernet RJ45 port, rear fiber ferrule and analog terminal block array with a 10x magnifier for thermal discoloration or pin corrosion; log serial numbers for full generator and SVC traceability records.
2. Live Testing: Seat the unit on a standard 19-inch rack test bench paired with a UNITROL excitation simulator and calibrated AC signal load banks; supply rated 24VDC auxiliary power; run a continuous 24-hour cycle test including voltage transient sweeps, fiber communication cable fault injection and control logic download validation.
3. Electrical Testing: Use a Fluke 115 insulation tester to verify ≥10MΩ isolation between analog measuring terminals and rack chassis ground; measure cabinet PE continuity resistance below 0.5Ω.
4. Firmware/Config Backup: Photograph front LED fault mapping and Ethernet IP DIP switch positions; record exact factory firmware revision printed on internal PCB silkscreen to match site existing control logic versions.
5. Final QC & Packaging: Wipe front panel surfaces with static-dissipative microfiber cloth; cap Ethernet port, fiber port and analog terminal blocks with insulating dust covers; seal the assembly inside a moisture-resistant ESD bag, attach a printed QC tag with full 24-hour power control cycle test timestamp, then pack into foam lined transit cartons.

Installation Pitfalls & Guide (Engineer to Engineer)

❗ Firmware revision mismatch disables fast transient compensation algorithms: Older firmware builds lack grid code compliant voltage trim logic; match the exact firmware revision of the site’s existing unit before power-on to avoid grid compliance violations. ❗ Unshielded Ethernet cabling corrupts waveform fault records: Cable runs longer than 12m near variable frequency drives generate constant Modbus TCP retries and incomplete disturbance log storage. ❗ Reversed analog PT wiring triggers permanent FAULT LED lockout: Swapped measuring wires block all control loop actuation until polarity correction and full rack power cycle. ❗ ESD discharge destroys internal FPGA signal processing ICs: Bare finger contact with PCB logic traces disables real-time control response, requiring full plant SVC/excitation shutdown and multi-day production downtime. ❗ Hot-swap energized 24VDC auxiliary power creates bus transients: Live extraction erases stored fault waveform data and removes active voltage regulation, opening an unprotected grid stability window for the power station.

4-step replacement guide

1. Pre-install: Lock out and tag cabinet 24VDC auxiliary power supply breaker; wait 10 minutes for internal logic capacitors to fully discharge; don ESD wrist strap; capture photos of analog PT field wiring, Ethernet cabling and Ethernet address DIP switch layout.
2. Removal: Disconnect all analog measuring wires, Ethernet and fiber communication cables one by one; release four front panel mounting fasteners, slide the old unit straight out of the rack slot without twisting rear wiring harness pins.
3. Install: Set DIP switches on the new hardware to match photographed IP address values; align the board with rack slot rails and seat fully inward until the latch clicks locked; re-terminate all analog PT wiring following captured photos, double-check polarity sequence to OEM torque specs.
4. Power-on Test: Restore 24VDC auxiliary power; confirm steady green RUN LED and active Ethernet traffic indicator; inject calibrated generator PT signals to validate fast voltage/current trimming response; simulate fiber trunk cable pull to confirm red FAULT LED activates and logs disturbance records to the plant SCADA HMI.

FAQ

Q: Can this unit operate without paired excitation / SVC power stage hardware connected? A: It will sample analog PT signals and display measurement values on the local interface, but all active power regulation and fault recording functions remain offline. Matched converter/excitation hardware is required to execute grid-compliant control sequences. Q: Is hot-swapping supported while cabinet 24VDC auxiliary power remains energized? A: It is not supported. Live extraction creates voltage transients that erase stored fault waveform logs and remove real-time grid voltage monitoring, creating an unprotected operational window that violates power station grid operational rules. Full power lockout and capacitor discharge wait time are mandatory before removal. Q: What warranty coverage applies to stocked units? A: Factory-new original power electronic control boards carry a 12-month OEM warranty covering FPGA processing circuits, Ethernet/fiber communication transceivers, analog sampling assemblies and front diagnostic LED arrays. Load-tested surplus units come with a 6-month functional warranty. Damage from reversed PT wiring, ungrounded ESD handling or energized hot-swap removal voids all coverage. Q: What hardware replaces this unit for new power station converter projects? A: New AC800PEC deployments use the upgraded UFC719AE02 variant with dual redundant fiber ports and extended fault waveform storage capacity. This unit remains approved only for one-to-one maintenance replacement of pre-2022 installed excitation and SVC control racks. Q: Will stored control loop threshold settings be lost after full cabinet power outage? A: All voltage, slip and safety trip parameter sets save to on-board non-volatile Flash memory, so power loss does not erase site-specific tuning values. Only physical DIP switch Ethernet IP address configurations require manual matching after hardware swap. Q: What are the most common failure modes for a faulty unit? A: Persistent red FAULT LED with correct PT measuring wiring, inability to output trim signals to excitation/SVC power stages, control loop response delay exceeding 100μs violating grid code requirements, intermittent Ethernet Modbus TCP communication packet loss under cabinet temperature fluctuation, blank front status display with normal 24VDC auxiliary supply, and incomplete fault waveform recording during grid transient events.
