Product Core Brief

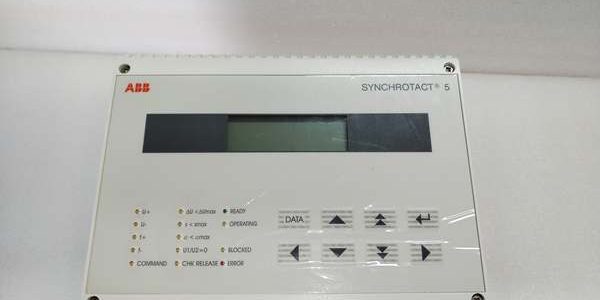

• Model: SYN5202-0271
• Brand: ABB
• Series: SYNCHROTACT 5 dual-channel generator synchronizing and synchrocheck device
• Core Function: Simultaneously monitors two independent generator/grid PT loops to automate safe breaker paralleling for dual-bus power station layouts
• Product Type: Panel cutout dual-channel synchronizing protection relay
• Key Specs: Dual isolated PT measurement inputs | SIL2 certified | Dual 10/100 Ethernet communication ports
• Note: Active OEM spare lifecycle; factory sealed new assemblies and fully cyclic load-tested surplus available for thermal, hydro and combined-cycle power plant cabinet retrofits

Key Technical Specifications

• PT input range per channel: 50–130 VAC single-phase, dual galvanically isolated loops
• Adjustable synchronization thresholds: Voltage difference 0.1–40%, slip frequency 0.01–6%, phase angle 1–99°
• Breaker close command latency: 10ms fixed core response, pulse width configurable 50–990ms
• Communication hardware: Dual redundant 10/100BASE-T Ethernet, RS485 Modbus RTU secondary port
• Auxiliary supply: 24 VDC ±10% SELV, 20 W maximum power draw
• Safety compliance: IEC 61508 SIL 2, IEC 60255-127 synchrocheck standard, CE certified
• Local HMI: Backlit monochrome LCD + dedicated LED status indicators per channel
• Enclosure front rating: IP20 for interior control cabinet mounting
• Panel cutout: Standard SYNCHROTACT 5 horizontal mounting footprint
• Operating ambient temperature: -10°C to +70°C inside sealed switchgear
• Storage temperature range: -40°C to +85°C
• Humidity rating: ≤75% RH non-condensing below 55°C
• PCB protection: ISA G3 conformal coating for coastal and industrial corrosive environments
• Net weight: 0.78 kg

Product Introduction

This panel-mounted relay compares two separate sets of generator and grid voltage signals to enable synchronized breaker closing on dual busbar layouts. Each channel operates fully independent, so a fault on one measurement loop does not block paralleling functionality on the second circuit. Redundant dual Ethernet ports eliminate single-point communication failure for remote SynView configuration and fault event logging, and isolated PT input barriers prevent cross-channel surge interference during transformer switching events.

QA & Testing SOP

1. Incoming Inspection: Cross-reference serial number against ABB power protection spare asset database to filter counterfeit hardware; inspect dual Ethernet RJ45 ports, dual PT terminal blocks and LCD front panel with a 10x magnifier for burn traces or pin oxidation; log serial numbers for full power station protection traceability records.
2. Live Testing: Mount the unit to a standard panel test bench with four independent variable AC signal sources simulating two generator and two grid PT feeds; supply rated 24VDC auxiliary power; run a continuous 24-hour cycle test including slip threshold sweeps, phase angle window validation and redundant Ethernet automatic failover simulation.
3. Electrical Testing: Use a Fluke 115 insulation tester to verify ≥10MΩ isolation between each PT channel and chassis ground; measure cabinet PE continuity resistance below 0.5Ω.
4. Firmware/Config Backup: Photograph Ethernet IP DIP switch positions and per-channel threshold jumper definitions; record factory firmware revision printed on internal PCB silkscreen to match existing site protection hardware revisions.
5. Final QC & Packaging: Wipe LCD panel surface with static-dissipative microfiber cloth; cap all Ethernet and PT terminal connectors with insulating dust covers; seal the assembly inside a shielding ESD bag, attach a printed QC tag with full 24-hour dual-channel synchronization test timestamp, then pack into foam lined transit cartons.

Installation Pitfalls & Guide

❗ Firmware mismatch disables dual-channel cross-check logic: Older firmware builds lack redundant channel fault suppression; match the exact firmware revision of the existing unit before power-on to avoid constant false synchrocheck alarms. ❗ PT polarity reversal creates permanent 180° phase offset on individual channels: Swapped secondary PT wiring locks the affected channel out of all paralleling operations until polarity is corrected and power cycled. ❗ Single shared ground for dual PT loops creates measurement drift: Each PT circuit requires dedicated isolated grounding to prevent cross-channel voltage offset under unbalanced grid load conditions. ❗ ESD discharge destroys dual-channel ADC sampling hardware: Bare finger contact with PCB measuring traces can disable one or both PT input loops, requiring full unit replacement and extended generator outage windows. ❗ Hot-swap energized PT secondary circuits generates lethal surge voltage: Removing the unit while PT test links remain open creates high open-circuit voltage spikes that damage adjacent protection relays in the cabinet.

4-step replacement guide

1. Pre-install: Lock out and tag cabinet 24VDC auxiliary control power breaker; short all PT secondary test switches for both measurement channels; wait 10 minutes for internal logic capacitors to fully discharge; don ESD wrist strap; capture photos of dual PT wiring, dual Ethernet cabling and DIP switch IP address layout.
2. Removal: Disconnect all PT measuring wires and Ethernet communication cables channel by channel; release four panel mounting fasteners, pull the old unit straight out of the cabinet cutout without twisting rear wiring harnesses.
3. Install: Set DIP switches on the new hardware to match photographed IP address values; seat the unit flush against the cabinet panel to maintain IP20 internal rating; re-terminate all dual PT and Ethernet wiring following captured photos, double-check each PT loop polarity sequence.
4. Power-on Test: Restore cabinet 24VDC auxiliary power; confirm steady green RUN LED and active LCD readout for both channels; inject calibrated generator/grid PT signals to validate independent voltage/frequency trimming logic; simulate primary Ethernet cable pull to confirm automatic secondary port communication failover without paralleling interruptions.

FAQ

Q: Can this unit operate using only one PT input channel? A: It will execute synchronization on the single active loop, but dual-channel cross-check fault detection is disabled. This removes a critical SIL2 safety layer and violates plant protection compliance documentation for dual-bus station designs. Q: Is hot-swapping supported while cabinet auxiliary power and PT circuits stay energized? A: It is not supported. Live extraction creates high open-circuit PT secondary voltage transients and disrupts the cabinet’s shared protection bus, risking unmonitored generator operation during the replacement window. Full power lockout and PT shorting via test switches are mandatory. Q: What warranty coverage applies to stocked units? A: Factory-new original dual-channel synchronizers carry a 12-month OEM warranty covering dual PT measurement circuits, redundant Ethernet transceivers, breaker close relay outputs and LCD diagnostic displays. Load-tested surplus units come with a 6-month functional warranty. Damage from reversed PT wiring, ungrounded ESD handling or energized hot-swap removal voids all SIL2 certification and warranty coverage. Q: What hardware replaces this unit for new power station builds? A: New SYNCHROTACT 5 deployments use SYN5202-0273 with expanded waveform fault recording and improved slip detection algorithms. The SYN5202-0271 variant is only approved for one-to-one maintenance replacement of pre-2024 installed dual-channel synchronizing relays. Q: Will stored synchronization threshold settings be erased after full cabinet power loss? A: All voltage, slip and phase angle window parameters store to on-board non-volatile Flash memory, so power loss does not erase site-specific setpoints. Only physical DIP switch Ethernet IP configurations require manual matching after hardware swap. Q: What are the most common failure modes for a faulty unit? A: Persistent red FAULT LED on one or both channels with correct PT wiring, failure to send breaker close trim signals to turbine/excitation hardware, loss of redundant Ethernet automatic failover, severe measurement drift between the two isolated PT loops, blank LCD backlight with normal 24VDC supply, and inability to log dual-channel paralleling fault events to remote SCADA servers.
