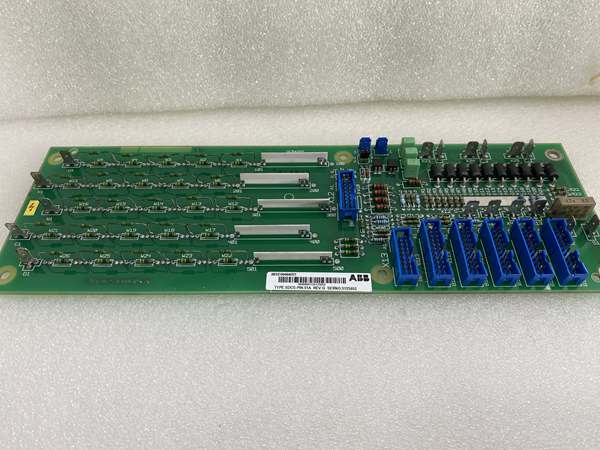

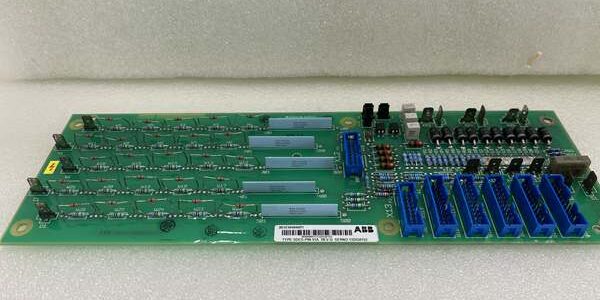

Product Core Brief
- Model: SDCS-PIN-51, Primary OEM PN: 3BSE004940R1; Coated variant PN: 3ADT220090R0006
- Brand: ABB Hitachi Energy
- Series: ABB DCS800 thyristor DC converter core secondary measurement & pulse distribution board
- Core Function: Multi-purpose interface PCB installed between the main control board SDCS-CON-4 and pulse transformer boards (SDCS-PIN-46 / SDCS-PIN-48-SD). It integrates 6 core functions for DCS800 D5/D6/D7 large power drawers:
- AC mains & DC armature voltage measurement with factory preset jumper scaling (W1–W26 cuttable resistors)
- Armature CT secondary current acquisition & burden resistor scaling (1A/5A CT compatible)
- Firing pulse sorting & routing for 2-quadrant / 4-quadrant converter bridges
- PTC thermistor heat sink temperature monitoring for thyristor overheat protection
- Isolated signal conditioning to eliminate CT/VT secondary circuit burden distortion
- Intermediate signal transfer between pulse transformer boards and SDCS-CON-4 CPU logicThis board is mandatory for every single DCS800 power drawer, regardless of frame size; one unit per drive bay. The coated version (3ADT220090R0006) adds anti-corrosion conformal coating for coastal, high-humidity and metallurgical corrosive workshops, while the standard 3BSE004940R1 is for dry indoor control rooms onlyeero.
- Product Type: Rack plug-in multi-channel measuring & pulse distribution PCB for DCS800 DC drive systems
- Key Specs: AC/DC wide-range voltage input measurement; CT 1A/5A software scaling; built-in PTC temperature signal input; jumper-selectable voltage/current scaling; full galvanic isolation between power stage signals and control logic; low CT/VT secondary burden; compatible with SDCS-PIN-48-SD harmonic-filtered pulse trigger boards; DIN rail drawer mounting inside DCS800 power unit; 24VDC logic power fed from SDCS-CON-4 backplane
- Note: platform is legacy end-of-life; only remaining factory-new units and fully load-tested surplus PCBs are supplied for thermal power generator excitation bays, steel rolling mill multi-drive lines, paper calender DC drive cabinets and offshore industrial MV panel retrofits. Cannot operate standalone; must pair with SDCS-CON-4 main control board and SDCS-PIN-48 pulse transformer boards.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Main OEM Article Code | SDCS-PIN-51: 3BSE004940R1; Coated variant: 3ADT220090R0006 |
| Measurement Inputs | Multi-channel AC line voltage, DC armature voltage, multi-path CT secondary current, PTC temperature sensor |
| CT Secondary Compatibility | Factory jumper-scaled for 1 A / 5 A nominal CT secondary |
| Voltage Scaling Method | Precision high-ohm resistors configured via cuttable jumpers W1–W26 (pre-set at factory per drive rating) |
| Temperature Input Interface | 2-wire PTC thermistor for thyristor heat sink overheat monitoring |
| Pulse Distribution Function | Sort and distribute I>/I>> firing pulses to D5/D6/D7 dual/4-quadrant bridge pulse transformers |
| Circuit Burden | Ultra-low CT/VT burden to avoid secondary saturation and signal attenuation |
| Galvanic Isolation | ≥ 2000 VAC isolation between power stage measuring circuits and low-voltage control logic |
| Auxiliary Logic Power | 24 VDC supplied via SDCS-CON-4 backplane, no separate external power feed |
| Mechanical Mounting | Standard internal plug-in slot inside power drawer |
| Operating Ambient Temp | -10 °C ~ +55 °C sealed cabinet; storage: -40 °C ~ +70 °C |
| Humidity Class | ≤75% RH non-condensing; coated variant tolerates mild salt fog |
| Overall Dimensions | 182.5 mm L × 168.5 mm W × 22 mm D |
| Net Weight | Approx. 400 g |
| Compliance Standards | IEC 60255 industrial protection equipment, IEC 61869 CT/VT measurement standard, CE certified |
Product Introduction
The SDCS-PIN-51 is the central signal conditioning hub of all DC converter power drawers, acting as the critical middle layer between high-power thyristor secondary circuits and the microprocessor control board.
Four Core Defined Functional Modules
- Dual AC/DC Voltage Precision Measuring CircuitHigh-resistance voltage divider networks process both incoming mains AC voltage and armature DC voltage. All scaling resistors are pre-configured at the factory by cutting jumpers W1–W26 to match the drive’s nominal voltage rating, eliminating on-site resistor modification during commissioning. Low burden design prevents voltage signal droop across VT secondary loopseero.
- Multi-Channel CT Current Summation & ScalingMultiple independent CT input terminals collect armature and residual neutral CT currents. Built-in burden resistors convert raw 1A/5A CT signals into standardized low-level analog voltages readable by the CPU. It balances multi-winding current vectors for transformer and generator bay backup protection coordination.
- Firing Pulse Sorting & Distribution LogicThe board receives raw firing pulse commands from , sorts and distributes matched pulse signals to the SDCS-PIN-48-SD pulse transformer boards. It automatically adapts pulse routing for either 2-quadrant single-bridge or 4-quadrant dual-bridge converter frames (D5/D6/D7), ensuring phase-angle synchronization for rectifier operationABB.
- Thyristor Heat Sink Temperature SupervisionDedicated PTC input terminals connect to heat sink thermistors. The board converts resistance variation into temperature analog signals, which the main control board uses to trigger staged overheat alarm and slow-down/trip protection to avoid thyristor thermal breakdown. This function is disabled in simplified -R rebuild kits via factory resistor bypassABB.
The conformal coated variant (3ADT220090R0006) adds a protective PCB coating layer to resist salt fog, chemical vapor and high humidity, mandatory for coastal power plants and metallurgical workshops. Without a funct, the drive loses all voltage/current measuring capacity and cannot generate synchronized firing pulses, resulting in complete drive shutdown.
QA & Testing SOP (Transparency Building)
- Incoming Visual Inspection: Verify full and part number against ABB spare parts database to reject uncoated mismatched PCBs for corrosive environments; inspect front jumper resistor array, PTC measurement circuit, pulse distribution trace, terminal blocks and conformal coating for burn marks, discoloration or pin deformation; record serial numbers and production batches for full traceability.
- Full Integrated Bench Test: into standard drawer test rack, connect matched and SDCS-PIN-48-SD boards; supply rated 24VDC logic power, inject variable AC/DC voltage and 1A/5A CT current signals; run 24-hour cyclic testing covering voltage/current scaling accuracy, pulse sorting routing, PTC temperature trigger, cross-channel isolation and zero crosstalk between measuring branches. Simulate transformer magnetizing inrush to confirm signal stability with harmonic interference.
- Electrical Insulation Test: Insulation resistance tester confirms ≥10 MΩ isolation between high-potential measuring circuits and low-voltage control logic; chassis protective earth continuity resistance <0.5 Ω.
- Setting Record Backup: Photograph jumper W1–W26 scaling layout, PTC terminal pin assignment and drawer plug connector wiring sequence for field commissioning reference.
- Final QC Packaging: Wipe module housing with anti-static microfiber cloth, cover all terminal blocks and drawer edge connectors with insulating dust caps, place unit into ESD shielding bag, attach unified QC test tag with 24-hour full cyclic test runtime, then pack into foam shockproof carton for power plant transportation.
Installation Pitfalls & 4-Step Replacement Guide
Common Installation Hazards
❗ CT Open-Circuit Lethal Risk: Before extra, fully activate CT shorting contacts via RXDS4 test switch to avoid high-voltage CT secondary surge during disconnection.❗ Coated Variant Matching Rule: Only 3ADT220090R0006 coated model is suitable for coastal/humid corrosive cabinets; direct replacement with standard 3BSE004940R1 will lead to rapid PCB oxidation and signal drift.❗ Jumper Scaling Mismatch: Never alter factory-cut voltage/current jumpers without recalculating drive CT/VT ratings; misconfigured scaling breaks protection coordination and causes measurement deviation.❗ Auxiliary Power Polarity Reversal: Reversed DC control power wiring instantly damages internal measuring and pulse distribution circuits.❗ ESD Damage Prevention: Mandatory anti-static wrist strap for all handling; bare finger contact with PCB signal chips causes permanent measuring accuracy degradation.
4-Step Drawer Board Replacement Guide
- Pre-install Preparation: Lock out and tag all cabinet auxiliary DC control power, engage CT shorting links via RXDS4 test switch, wear ESD wrist strap, photograph drawer plug wiring for AC/DC voltage, CT measuring, PTC temperature and pulse distribution output terminals.
- Removal Operation: Unlatch drawer lock handle, pul fully out of the internal backplane socket (base wiring remains fixed in cabinet rack).
- Installation & Wiring: Inser into original drawer backplane slot and lock handle; cross-check factory jumper scaling matches on-site CT/VT specifications; re-terminate all voltage, current, temperature and pulse wiring following photographed terminal sequence, tighten terminals to ABB standard torque values.
- Power-on Commissioning Test: Restore cabinet auxiliary DC power, confirm green RUN LED steady on; inject nominal CT/voltage signals to verify balanced measuring values without residual offset; simulate over-temperature PTC resistance change to trigger heat sink alarm, test pulse distribution to SDCS-PIN-48-SD and confirm stable drive DC output without measurement fault alarms on DCS/SCADA.
FAQ
Q: What is the difference be and ?
- : Multi-channel measurement & pulse sorting board, collects CT/VT/PTC signals and distributes pulse commands; no gate-drive transformer hardware.
- : Pulse transformer trigger board only, receives pre-sorted pulses from and generates isolated thyristor gate firing signals with built-in 2nd harmonic filter for transformer inrush suppression.The two boards operate in series and cannot substitute each other.
Q: What is the difference between standard 3BSE004940R1 and coated 3ADT220090?
- 3BSE004940R1: Standard uncoated PCB, for dry indoor substation control rooms only.
- 3ADT220090R0006: Conformal coated variant with anti-salt/moisture coating, mandatory for coastal, metallurgical and offshore high-corrosion environments. Internal circuit functions are identical, only surface protection differs.
Q be hot-swapped with cabinet auxiliary power energized?Strictly forbidden. The board connects to live CT/VT secondary measuring circuits and 24VDC logic power; energized extraction creates CT open-circuit high voltage and permanent damage to measuring PCB chips. Full auxiliary power lockout and CT shorting via RXDS4 are required before replacement.
Q: What warranty applies to st boards?Factory-new original measurement PCBs carry a 12-month ABB official warranty covering multi-channel signal measuring circuits, pulse distribution logic and terminal insulation. Bench-tested surplus units carry a 6-month functional warranty; damage from CT open-circuit surges, mis-cut scaling jumpers, power polarity reversal or ungrounded ESD handling voids warranty coverage.
Q: Has ABB discont production?No formal EOL notice is remains standard spare supply for legacy cabinet renovation. New digital DC drive projects adopt DCS880 series with integrated on-board measurement circuits without separate auxiliary boards.
Q: What typical faults indicate a defe board?Common failure symptoms: Persistent unbalanced CT current measurement alarms with balanced load, unstable fluctuating DC armature voltage readings, failure to distribute firing pulses leading to zero motor torque, no heat sink overheat alarm when PTC temperature rises, severe cross-channel signal crosstalk under normal drive operation, permanent measurement offset exceeding factory tolerance range.
