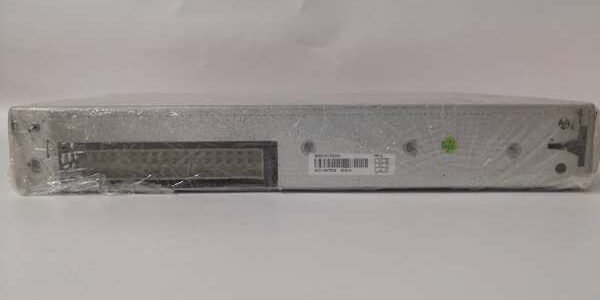

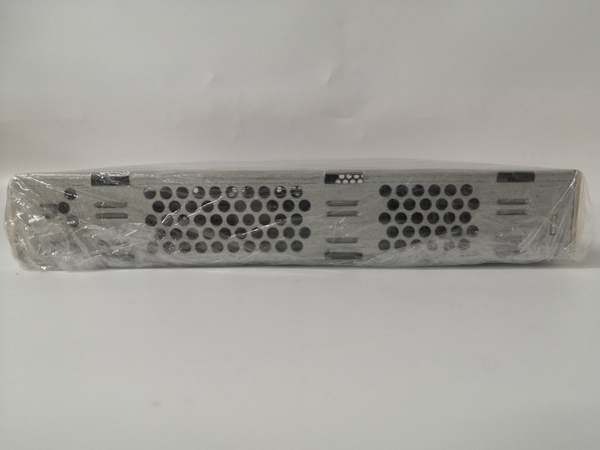

Product Core Brief
- Model: SC610, Official OEM part code: 3BSE001552R1
- Brand: ABB Hitachi Energy
- Series: ABB Advant OCS / MasterPiece AC100 legacy distributed control system submodule carrier platform
- Core Function: Passive physical and electrical carrier base designed to host up to two CI532 RCOM serial communication submodules. It provides stable mechanical mounting, internal backplane signal routing and galvanic isolation between the main controller rack and remote serial field communication loops. It converts single controller RCOM bus channels into dual independent RS232 serial links to realize long-distance peer-to-peer data exchange between distributed DCS control cabinets, enabling remote I/O, third-party device and auxiliary system interconnection via the RCOM proprietary protocol.
- Product Type: DIN rail mounted passive communication submodule carrier base
- Key Specs: Supports maximum 2 pieces of CI532 communication cards; built-in functional isolation between rack backplane and external serial circuits; compatible with 9.6 kbps ~ 19.2 kbps RCOM baud rates; no independent auxiliary power consumption (power supplied via controller rack backplane); standard 35 mm DIN rail installation; front mechanical latch for fast card insertion/removal
- Note: The Advant AC100 DCS platform including is fully end-of-production. Only surplus tested and remaining factory-original carriers are supplied as maintenance spares for thermal power plants, chemical factories and old industrial control room retrofits. It cannot operate standalone and must be used paired with CI532 communication modules.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full OEM Article Code | 3BSE001552R1 |
| Supported Submodule Quantity | 2 slots for CI532 series RCOM communication cards |
| Supported RCOM Baud Rates | 9.6 kbps, 19.2 kbps |
| Isolation Rating | Functional isolation 500 V AC between rack backplane and external RS232 serial lines |
| Power Supply | Passive design, draws logic power directly from Advant controller rack backplane, no separate 24 VDC input required |
| Mechanical Mounting | Standard 35 mm DIN rail mounting inside DCS control cabinet |
| Ambient Operating Temperature | -20 °C ~ +60 °C continuous cabinet operation; storage temperature -40 °C ~ +70 °C |
| Humidity Class | ≤75% RH non-condensing, indoor control room rated |
| Overall Dimensions | 134 mm W × 119 mm H × 135 mm D |
| Net Weight | Approx. 360 g |
| Compliance Standards | IEC 61158 fieldbus standard, IEC 60255 process control equipment standard, CE certified |
Product Introduction
The 3BSE001552R1 is a dedicated submodule carrier exclusively built for ABB Advant OCS and MasterPiece AC100 DCS racks, solving the limitation that original Advant controllers only carry limited native serial communication ports.
Core Functional Mechanisms
- Dual Slot Expansion StructureEach carrier provides two independent hardware slots for CI532 RCOM submodules. Every card outputs one isolated RS232 serial channel, so one unit extends the controller with two separate remote communication links to connect distant auxiliary control cabinets, local panel HMIs and third-party monitoring devices.
- Galvanic Isolation Anti-Interference DesignThe internal backplane circuit adds functional isolation between the low-noise controller logic bus and external long-distance RS232 cables. It blocks surge voltage and EMI noise generated by field switching equipment, avoiding controller communication crash or false data sampling drift caused by ground loop interference.
- Transparent RCOM Protocol TransmissionThe carrier itself does not process or modify RCOM protocol data; it only acts as a passive signal routing bridge. All communication logic, baud rate configuration and fault diagnosis are executed by the inserted submodules and the main Advant controller CPU, requiring no extra program modification after carrier replacement.
The carrier adopts robust metal DIN rail clamping structure to resist mechanical vibration in industrial workshops and power plant control rooms. All internal signal terminals are gold-plated to prevent long-term oxidation and poor contact. Typical application scenarios include thermal power unit auxiliary boiler control cabinet interconnection, chemical plant multi-section distributed control communication, and industrial self-generation plant remote monitoring signal transmission.
QA & Testing SOP (Transparency Building)
- Incoming Visual Inspection: Cross-check full part number 3BSE001552R1 and serial number against ABB legacy DCS spare parts database to reject counterfeit mismatched carriers; inspect backplane gold-plated connectors, DIN rail clip and internal wiring traces for scratch damage, discoloration or corrosion; record serial numbers and production batches for full traceability.
- Dual Card Linkage Bench Test: Mount on standard Advant rack DIN rail test bench, insert two modules, connect Advant AC100 controller and simulated RCOM slave devices; run 24-hour cyclic communication testing, verify dual serial channel simultaneous data transmission without crosstalk, simulate cable short/open circuit to confirm isolated fault handling without main controller impact.
- Insulation Resistance Test: Use insulation resistance tester to confirm isolation resistance ≥ 10 MΩ between rack backplane signal circuits and external RS232 serial terminals; test chassis ground continuity resistance below 0.5 Ω.
- Hardware Record Backup: Photograph slot connector pin definitions and DIN rail mounting dimensions for field wiring reference.
- Final QC Packaging: Wipe carrier housing with anti-static microfiber cloth, cover all submodule slots with insulating dust caps, place the unit into independent ESD shielding bag, attach unified printed QC test tag with technician ID and full 24-hour dual-channel communication test runtime timestamp, then pack into foam shockproof carton for long-distance transportation.
Installation Pitfalls & 4-Step Replacement Guide
Common Installation Hazards
❗ Live Backplane Signal Risk: Before removing the carrier, lock out the entire Advant controller rack 24 VDC auxiliary power supply; live disassembly of rack backplane connectors will generate signal surge and damage CPU logic chips.❗ Card Mismatch Risk: Only series RCOM submodules are compatible; inserting other communication cards will break backplane signal routing and cause total DCS communication loss.❗ ESD PCB Damage Risk: Wear certified anti-static wrist strap during all disassembly and installation work; bare hand contact with internal backplane traces will permanently damage signal isolation circuits.❗ Serial Cable Termination Error: Each serial segment must be equipped with matching terminal resistors at both ends; missing resistors lead to signal reflection and frequent data loss.❗ Over-Slot Load Prohibition: Do not insert more than two modules into one carrier; exceeding the designed slot quantity will create bus signal unbalance and communication failure.
4-Step Carrier Replacement Guide
- Pre-install Preparation: Lock out and tag out the Advant controller rack 24 VDC auxiliary power supply, wear ESD wrist strap, photograph submodule insertion sequence, serial cable terminal wiring and DIN rail fixed position of the carrier.
- Removal Operation: Pull out two communication cards from the old carrier first, release the DIN rail mounting clip, detach the carrier from the cabinet rail.
- Installation & Wiring: Clip the new carrier onto the original DIN rail, insert submodules into Slot 1 and Slot 2 strictly following photographed records, re-terminate all external serial communication cables one by one, confirm all connectors are fully locked without loose pins.
- Power-on Commissioning Test: Restore rack auxiliary control power, upload matched RCOM communication parameter groups via Advant engineering tool; run continuous data transmission test on both serial channels, simulate cable fault signals to verify isolated channel operation without cross-interference, confirm stable process data upload to DCS/SCADA system.
FAQ
Q: What is the difference between and single-slot carrier variants?Standard single-slot carriers only support one communication module for simple single serial link control. provides two independent slots, which can expand two isolated remote communication channels at the same time, meeting multi-branch distributed control interconnection requirements of most power plant and chemical plant DCS bays.
Q: Can work without submodules?No. is a passive carrier base without any communication processing hardware. It cannot generate, receive or decode RCOM serial signals independently; cards are mandatory to realize remote serial communication functions.
Q: Can be hot-swapped under energized rack power?Strictly prohibited. The carrier directly mates with the live Advant rack backplane low-voltage logic bus; disassembly with power on will cause communication bus surge and permanent damage to controller CPU and backplane circuits. Full auxiliary power lockout is mandatory before replacement.
Q: What warranty applies to stocked 3BSE001552R1 carriers?Factory-new original legacy DCS carriers carry a 12-month ABB manufacturer warranty covering backplane signal routing circuits, isolation hardware and connector pins. Bench-tested surplus units provide a 6-month functional warranty; damage caused by live wiring disconnection, serial cable surge voltage or ungrounded ESD handling voids all warranty terms.
Q: Has ABB discontinued production?Yes, the entire Advant AC100 DCS platform including carrier is fully end-of-production. New process control and power plant DCS projects adopt ABB 800xA systems with built-in Ethernet communication modules without separate serial carrier hardware. is only supplied as maintenance spare parts for legacy Advant OCS control room renovation.
Q: What typical faults indicate a defective carrier?Common failure symptoms: Permanent serial communication dropout of one or both channels, severe data distortion on lines without field cable damage, poor contact causing random intermittent slave signal loss, failure of isolation circuit leading to cross-channel communication interference, mechanical slot jamming unable to plug/unplug submodules smoothly.
