Product Core Brief
- Model: RMIO-11C, OEM part code: 68789010, material code: 3ALA0000035408
- Brand: ABB Hitachi Energy
- Series: ACS800 series industrial variable speed drive core I/O control board
- Core Function: The central logic and signal interface board built into the RDCU drive control unit of ACS800 converters. It executes core motor control algorithms, collects all field digital/analog feedback signals, processes encoder speed feedback, communicates with the power stage via DDCS fiber optics, and outputs control signals to contactors, indicators and external PLC systems. RMIO-11C is the upgraded high-function variant compared to standard RMIO-01C, supporting expanded high-speed encoder pulse processing and more flexible fieldbus matching for complex closed-loop drive applications.
- Product Type: Motor Control & Multi-Function I/O Printed Circuit Board
- Key Specs: 24V DC internal logic supply; 10 galvanically isolated digital inputs, 6 relay digital outputs; 4 multi-range analog inputs, 2 analog outputs; integrated HTL/TTL incremental encoder interface; native DDCS fiber communication port; conformal anti-corrosion PCB coating
- Note: ABB officially end-of-produced the ACS800 platform including RMIO-11C; only limited factory-sealed original boards and fully bench-tested surplus units are supplied for legacy wind farm, metallurgy, water treatment and mining drive cabinet emergency maintenance.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full OEM Part Number | RMIO-11C, 68789010, 3ALA0000035408 |
| Internal Logic Supply | 24 VDC derived from drive auxiliary power board |
| Digital Inputs (DI) | 10 channels, optically isolated 24VDC bidirectional, response time ≤1ms |
| Digital Outputs (DO) | 6 relay outputs, max 2A continuous per channel, 4kV AC isolation test voltageManualsLib |
| Analog Inputs (AI) | 4 channels, software selectable 0–10V voltage / 4–20mA current, 12-bit ADC precision |
| Analog Outputs (AO) | 2 channels, 0–10V / 4–20mA configurable for speed/torque signal transmission |
| Encoder Interface | 1 HTL/TTL incremental encoder port, max input frequency 100kHz for closed-loop speed control |
| Communication Interface | DDCS fiber optical port for high-speed data exchange with RINT power interface boards |
| PCB Protection Coating | ISA 71.04 G3 anti-salt, anti-moisture conformal coating for harsh industrial environments |
| Operating Ambient Temp | -20 °C ~ +50 °C inside drive cabinet; storage temperature -40 °C ~ +70 °C |
| Mechanical Dimensions | 240 mm L × 100 mm W × 20 mm D |
| Net Weight | Approx. 180g |
| Compliance Standards | IEC 61800-3 EMC for variable speed drives, CE certified, RoHS compliant |

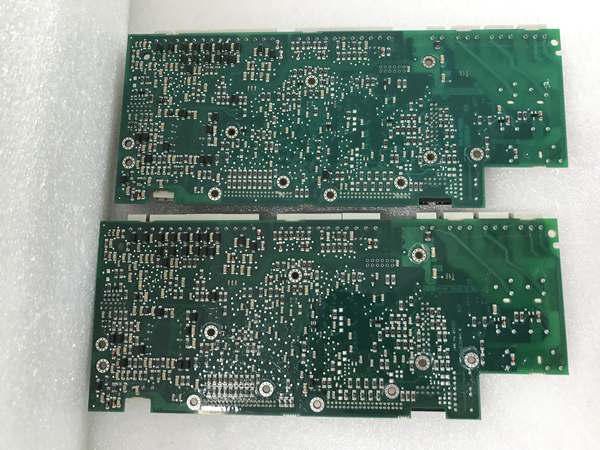

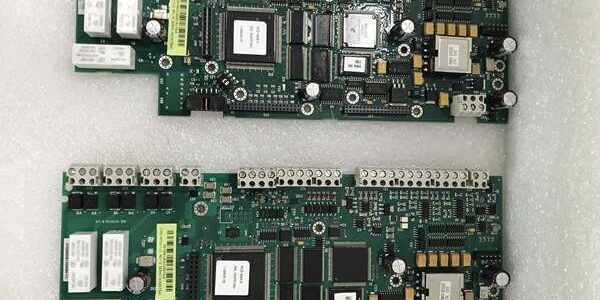

Product Introduction
The RMIO-11C is the core signal processing motherboard embedded inside the RDCU control unit of all medium and high-power ABB ACS800 converters, serving as the data bridge between the drive’s power stage, external field devices and upper-layer automation systems.Its core functional modules cover four critical drive control segments:
- Field I/O Signal Acquisition & Output: It receives digital signals from emergency stop, limit switches and interlock relays via DI channels, and outputs relay control signals to motor contactors, fault warning lamps and auxiliary valves through DO terminals. Analog AI channels collect process signals from pressure, flow and temperature sensors, while AO ports transmit real-time motor speed and torque values to PLC or chart recorders.
- Closed-Loop Encoder Speed Feedback: The dedicated high-frequency encoder interface captures motor rotor position pulses to realize high-precision vector torque control, eliminating speed drift under heavy load conditions—this enhanced encoder processing capability is the main upgrade of RMIO-11C over basic RMIO-01C models.
- DDCS Fiber Communication Link: It transmits motor control pulse commands to RINT series power interface boards via fiber optics, and receives real-time current, temperature and fault feedback signals from the IGBT power stack; optical transmission completely isolates high-voltage EMI interference from the main circuit.
- Built-in Drive Protection Logic: The board integrates hardware overcurrent, overspeed and undervoltage pre-judgment circuits. Once abnormal signals are detected, it immediately locks IGBT drive pulses and stores fault codes for maintenance diagnosis.
The entire PCB is covered with anti-corrosion conformal coating, making it suitable for offshore wind turbines, metallurgical smelting workshops and other high-humidity, corrosive industrial environments. It is widely matched with ACS800 single-motor drives, wind turbine full-power converters and multi-drive common DC bus systems.
QA & Testing SOP (Transparency Building)
- Incoming Visual Inspection: Cross-check full part number 68789010 and serial number against ABB spare parts database to reject counterfeit mismatched boards; inspect PCB traces, terminal connectors, encoder ports and conformal coating for burn marks, salt corrosion or scratch damage; record serial numbers and production batches for full traceability.
- Full Bench Linkage Test: Install the board into a standard RDCU control unit, mount on ACS800 power unit test rack, supply stabilized 24VDC internal logic power, connect simulated DI/AI field signals and encoder pulse generators; run 24-hour cyclic testing including I/O signal transmission, closed-loop speed regulation, DDCS fiber communication linkage and fault protection trigger verification.
- Electrical Insulation Test: Use insulation resistance tester to confirm isolation resistance ≥10 MΩ between low-voltage logic circuits and signal relay output circuits; test chassis ground continuity resistance below 0.5 Ω.
- Firmware & Parameter Backup: Record hardware revision of , photograph all terminal pin definitions and connector wiring sequences, back up the complete drive control parameter group via DriveWindow PC tool for offline storage.
- Final QC Packaging: Wipe PCB surface with anti-static microfiber cloth, cover all gold-plated terminal connectors with insulating dust caps, place the board into independent ESD shielding bag, attach unified printed QC test tag with technician ID and full 24-hour test runtime timestamp, then pack into foam shockproof carton for long-distance transportation.
Installation Risks & 4-Step Replacement Guide
Common Installation Hazards
❗ High-Voltage Residual Charge Danger: The DC bus capacitor inside the drive stores lethal residual high voltage after shutdown; wait a minimum of 15 minutes for full capacitor discharge before disassembling the RDCU unit and board to avoid electric shock.❗ ESD PCB Damage Risk: Must wear certified anti-static wrist strap during all disassembly and installation operations; bare hand contact with internal PCB chips will permanently damage encoder processing and DDCS communication circuits.❗ Firmware Version Mismatch: Outdated drive firmware cannot match the enhanced encoder algorithm of , leading to closed-loop speed oscillation and false overspeed faults; upgrade DriveWindow and converter firmware to matched versions before commissioning.❗ Fiber DDCS Connector Misalignment: Reversed or loose fiber plugs will cause complete loss of communication between the control board and power stack, triggering drive immediate trip; take clear photos of fiber wiring before removal for reference.❗ External 24V Power Polarity Reversal: Reverse positive/negative wiring of external auxiliary power on X23/X34 terminals will burn the internal power supply circuit instantlyManualsLib.
4-Step Board Replacement Guide
- Pre-install Preparation: Perform full lockout/tagout on the main AC input power, wait 15+ minutes for DC bus capacitor complete discharge, wear ESD wrist strap, photograph DDCS fiber jumpers, DI/AI/DO terminal wiring and encoder cable sequences connected to the board inside the RDCU unit.
- Removal Operation: Unplug all fiber, encoder and terminal signal connectors one by one according to photographed records, unscrew the fixed mounting bolts of the bracket, take out the old board from the RDCU control unit housing.
- Installation & Wiring: Fix the new board onto the original bracket inside the RDCU, align the board position and fasten fixing bolts with standard torque; re-plug all fiber, encoder and I/O terminal connectors strictly following the photographed wiring sequence, ensure all connectors are fully locked without loose pins.
- Power-on Commissioning Test: Restore drive auxiliary control power first, upload matched firmware and motor control parameter sets, perform static analog/digital I/O calibration without main power input; then close main AC power, run no-load closed-loop motor test, verify stable encoder speed feedback, normal DDCS fiber communication and no persistent fault alarms.
FAQ
Q: What is the key difference between and standard RMIO-01C?A: RMIO-01C is the basic I/O board for simple open-loop speed control without high-speed encoder support. features upgraded encoder pulse processing hardware, supports higher-frequency encoder signals for precise closed-loop vector control, and expands compatibility with complex multi-sensor field automation systems.
Q: Can be hot-swapped with the drive energized?A: Strictly prohibited. The board connects to live DDCS fiber communication circuits and internal 24V logic power loops; disassembly under energized conditions will cause drive instant fault trip and permanent damage to PCB chips. Full power lockout and capacitor discharge are mandatory before replacement.
Q: What warranty applies to stocked boards?A: Factory-new original PCBs carry 12-month official ABB manufacturer warranty covering encoder processing circuits, DDCS transceivers, I/O signal channels and PCB substrate. Bench-tested surplus boards provide 6-month functional warranty; damage caused by residual high voltage shock, power polarity reversal or ungrounded ESD handling voids all warranty terms.
Q: Has ABB discontinued production?A: Yes, the entire drive platform including I/O board is fully end-of-production. New industrial and renewable energy projects adopt updated ACS880 series converters with redesigned control boards; is only supplied as spare parts for legacy drive fleets.
Q: Will motor speed control parameters be lost after replacing the board?A: All motor vector control curves, speed loop gains and protection thresholds are stored in the flash memory of the RDCU control unit, not the board. Parameter backup is still recommended before replacement to avoid recalibration work caused by firmware version mismatch.
Q: What typical faults indicate a failed board?A: Common failure symptoms: Loss of encoder speed feedback leading to motor speed runaway, random DI/DO signal dropout, persistent DDCS fiber communication fault alarms, analog signal reading drift without sensor damage, drive unable to execute closed-loop torque control, and frequent unprovoked overspeed trips.
