Product Core Brief
- Model: (Complete withdrawable assembly with matched dedicated draw-out baseplate)
- Brand: ABB
- Series: Relion® 615 Dedicated Asynchronous Motor Protection & Control IED, Standard Configuration C
- Core Function: Full-featured plug-in intelligent motor protection device for medium/large LV & MV asynchronous motors (pumps, fans, conveyors, crushers, compressors). Integrates dynamic thermal motor model, startup/stall supervision, directional earth fault, 3-channel arc flash detection, multi-channel RTD winding/bearing temperature monitoring, breaker bay control, high-density binary I/O, disturbance recording and dual PRP redundant IEC 61850 substation communication.
- Product Type: Premium Draw-out Motor Protection IED Full Assembly (Plug-in Unit + Hardwired Draw-out Baseplate)
- Key Specs: H = 100–240V AC/DC universal auxiliary supply | M = 1A/5A software switchable CT | C = Standard Config C full motor protection suite | Dual PRP 10/100Mbps Ethernet IEC 61850 GOOSE | Multi-RTD temperature input | 16DI/12DO expanded I/O
- Note: Active OEM mass production; factory sealed new full assemblies and fully bench load-tested surplus stocked for industrial MCC, MV motor switchgear, oil & gas, water treatment plant maintenance & new builds.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full Long Order Code | |
| Auxiliary Power Variant (H) | 100–240 VAC / 48–250 VDC wide-range universal supply; peak 22W power draw |
| CT Input Hardware (M) | Phase & residual CT software selectable 1A / 5A secondary current rating |
| Analog Measurement Channels | 4 galvanic CT current inputs + 3-phase VT voltage inputs + multi-RTD temperature channels |
| Binary I/O Layout (AE expansion) | 16 galvanically isolated digital status inputs; 12 programmable power relay outputs (fast master trip, breaker close/trip, alarm, trip circuit supervision) |
| Core ANSI Motor Protection Function Suite | 49 dynamic thermal overload model, 50/51 multi-stage phase overcurrent, 50 instantaneous short circuit, 46 phase unbalance/phase reversal, 37 undercurrent loss-of-load dry-run protection, 51N/67N directional sensitive earth fault, 51LR locked rotor stall, 62BF breaker failure, cumulative start counter & restart inhibit, 3-channel arc flash detection, RTD winding/bearing over-temperature trip, frequency/voltage supervision (27/59/81) |
| Onboard Communication Interfaces | Dual 10/100M PRP redundant RJ45 Ethernet (IEC 61850 Ed2.0, GOOSE, MMS, SNTP/IRIG-B time sync); rear RS485 serial port (Modbus RTU / DNP3.0); front optical SPA service port; embedded WebHMI |
| Data Recording Capacity | 500 timestamped SOE event logs; 10 COMTRADE fault disturbance waveform records (motor startup, stall, short-circuit, arc flash); permanent motor runtime & startup counter storage |

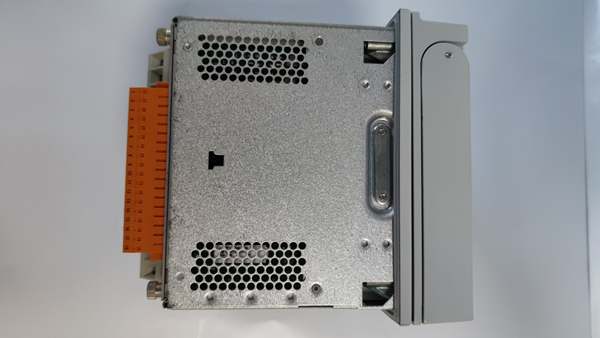

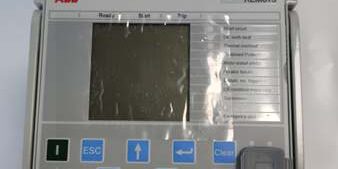

| Draw-out Mechanical Design | Hot-pluggable plug-in unit; baseplate integrated mechanical CT shorting links to eliminate lethal CT open-circuit hazards during unit swap |
| HMI Interface | Full graphical multi-language LCD, local motor Start/Stop pushbuttons, configurable LED fault status indicators, customizable single-line bay diagram display |
| Front Panel Enclosure Rating | IP54 flush cabinet mount; rear baseplate terminal compartment IP20 |
| Operating Ambient Temp | -10 °C to +55 °C continuous rack operation; short-term storage -40 °C ~ +70 °C |
| Humidity Resistance | <95% RH non-condensing, ISA 71.04 G3 corrosion resistant conformal PCB coating |
| Mechanical Form Factor | 4U half-width 19-inch draw-out assembly |
| Full Assembly Dimensions | 177 mm W × 177 mm H × 155 mm D |
| Net Assembly Weight (IED + Baseplate) | 3.5 kg |
| Compliance Standards | IEC 60255, IEC 61850, UL508, KEMA type-tested, RoHS, SIL2 capable for motor safety interlocks |
Product Introduction
This is high-spec Configuration C motor protection assembly, distinguished by dual PRP redundant Ethernet, full directional earth fault protection, 3-channel arc flash detection and factory RTD temperature measurement support—ideal for critical high-value motors requiring zero downtime redundant communication and full thermal condition monitoring unavailable on base REM610 and entry single-Ethernet variants.
The withdrawable baseplate integrates dedicated mechanical CT shorting links, removing dangerous CT open-circuit risks during unit replacement—only the plug-in IED is extracted while cabinet CT/VT, RTD and control wiring remain permanently terminated on the fixed baseplate. Dual PRP Ethernet ports deliver bumpless zero-switchover-time redundant substation communication, supporting high-speed cross-bay GOOSE interlocking without external redundant network switches.
Proprietary dynamic thermal model accurately simulates motor heating during heavy startup, repeated jogging and continuous variable load, drastically reducing false overload trips compared to traditional bi-metal thermal relays. Embedded programmable signal matrix logic replaces external auxiliary relay racks for custom motor interlocks, emergency start inhibit, dry-run pump protection and breaker failure trip sequences. Disturbance recorders capture pre-fault and post-fault analog waveforms to accelerate post-outage root-cause analysis for motor stall, short-circuit and arc flash incidents. The front SPA optical port enables offline parameterization without opening live cabinet low-voltage wiring terminals.
QA & Testing SOP (Transparency Building)
- Incoming Inspection: Cross-reference full long order code and matching IED/baseplate serial numbers against OEM spare registry to reject mismatched assemblies; inspect graphical LCD, dual Ethernet RJ45 ports, RTD terminal block, baseplate CT shorting links and conformal PCB coating for scratches, salt corrosion or moisture residue; log serial batches for full traceability records. Special verification of RTD analog input continuity and arc flash sensor channel function.
- Live Full Assembly Testing: Mount IED + baseplate to standard 4U test rack, supply stabilized 220V AC/DC auxiliary power, inject 1A/5A switchable CT/VT simulated motor startup/stall/earth/arc flash fault signals, run continuous 24-hour protection element cycling, PRP Ethernet redundant failover stress testing and multi-point RTD temperature simulation validation with full event/disturbance log recording.
- Electrical Testing: Use Fluke 115 multimeter and insulation resistance tester to verify chassis ground resistance below 0.5Ω and isolation resistance above 10MΩ separating auxiliary power, analog CT/VT/RTD and binary control circuit groups; validate mechanical CT shorting link continuity.
- Firmware/Config Backup: Record exact embedded firmware revision via PCM600 configuration tool, photograph baseplate Ethernet DIP address jumpers and RS485 bus switches, export complete motor thermal curves, startup limits, RTD temperature thresholds and custom interlock logic to encrypted offline storage.
- Final QC & Packaging: Clean front LCD surface with anti-static microfiber cloth, cap SPA optical port and dual Ethernet RJ45 ports with dust protective plugs, separate plug-in IED and baseplate into individual ESD shielding bags, attach unified printed QC test tag with technician ID and full 24-hour runtime timestamp before foam-lined shock-resistant transit carton packaging.
Installation Pitfalls & 4-Step Replacement Guide
Common Installation Risks
❗ Firmware Version Mismatch: Newer firmware builds block directional earth fault calculation, RTD temperature monitoring and PRP redundant Ethernet communication; cross-check OEM PCM600 software compatibility matrix before downloading motor parameter sets.❗ CT Open-Circuit Safety Hazard: Always engage baseplate built-in CT shorting links before pulling the plug-in IED out; unshorted CT terminals generate lethal high secondary voltage and arc flash hazards during disassembly.❗ PRP Ethernet Port Cross-Wiring: Swapping Port A / Port B redundant RJ45 cables breaks zero-latency network failover; label cable ends during disassembly to match silkscreen port markings on the IED rear panel.❗ RTD Wiring Polarity Error: Reversed RTD sensor leads cause permanent temperature measurement drift and over-temperature false trips; cross-reference Config C dedicated RTD terminal wiring diagram.❗ RS485 Bus Address Conflicts: Duplicate bay node addressing floods substation Modbus/DNP3 serial bus with broadcast traffic; capture high-resolution photos of baseplate communication DIP jumpers prior to unit removal.❗ Auxiliary Supply Underrating: The full assembly draws peak 22W during simultaneous trip output actuation; shared cabinet DC power supplies with multiple IEDs trigger voltage sag and incomplete relay boot sequences.❗ ESD Dangers: Unwristed technician contact with rear exposed PCB traces corrupts flash-based motor thermal settings and real-time clock backup circuits; field service logs show ungrounded handling destroyed this assembly with over $3,700 in hardware and production downtime labor costs.
4-step draw-out assembly replacement guide
- Pre-install: Lock out and tag out substation auxiliary supply, engage baseplate CT shorting links, fit certified anti-static wrist strap, photograph CT/VT/RTD wiring, binary DI/DO terminals, dual Ethernet PRP cabling and RS485 communication jumper positions.
- Removal: Unlatch draw-out unit locking handle, pull the plug-in IED fully out of the fixed wired baseplate (baseplate remains permanently terminated to cabinet wiring). Retain baseplate if undamaged; replace full assembly only if baseplate terminals show corrosion or burn damage.
- Install: If reusing original baseplate: slide new plug-in IED fully into baseplate rail and lock mechanical handle, replicate original Ethernet/RS485 DIP bus address jumpers. If replacing full kit: mount new baseplate to cabinet panel frame, reterminate all CT/VT/RTD, control and communication wiring per Config C pinout specs, replicate bus address jumpers, then insert and lock the new IED unit.
- Power-on Test: Restore auxiliary supply power, disengage CT shorting links, upload matching firmware and full motor protection setting groups, inject simulated stall/directional earth/arc flash/RTD over-temperature fault signals to validate trip output operation, test manual PRP Ethernet cable disconnection to confirm bumpless redundant communication, verify event logging and stable SCADA GOOSE data exchange.
FAQ
Q: What does each segment of the order code represent?
- H: Universal 100–240V AC/DC wide-range auxiliary power supply
- M: 1A / 5A software switchable CT secondary input hardware
- C: Standard Configuration C, full directional earth fault + voltage measurement + RTD temperature support
- AE: Max expanded 16DI / 12DO binary I/O layout
- AG: Dual PRP redundant Ethernet IEC 61850 communication hardware
- ANB6: Factory licensed 3-channel arc flash detection + full motor protection function stack
- ANN1XG: Standard front graphical LCD, no fiber expansion, standard time sync & web HMI enabled
Q: What core differences separate from base REM610 and single-Ethernet variants?A: This Config C model features dual PRP redundant Ethernet, directional sensitive earth fault, 3-channel arc flash protection and native multi-RTD winding/bearing temperature monitoring. Base REM610 lacks Ethernet and RTD; single-Ethernet models have no PRP redundancy and limited arc flash/RTD licensing, suitable only for simple single-bus motor bays without critical thermal monitoring requirements.
Q: Can the plug-in IED be hot-swapped while baseplate auxiliary power remains energized?A: Mechanical draw-out design permits unit extraction with auxiliary power live only after fully engaging CT shorting links. Never pull the IED without shorting CT circuits—this creates lethal arc flash hazards and permanent CT winding damage. Full cabinet lockout/tagout is recommended for complete baseplate replacement.
Q: What warranty coverage applies to stocked full draw-out assemblies with baseplate?A: Factory-new OEM IED kits carry a 12-month manufacturer warranty covering plug-in processing unit, baseplate terminal assembly, Ethernet transceivers, RTD measurement circuits and all protection logic functions. Bench-tested surplus full assemblies ship with a 6-month functional warranty; physical damage from CT open-circuit transients, miswiring, arc flash or ungrounded ESD handling voids all coverage terms.
Q: Has ABB issued formal EOL documentation for the platform?A: No formal end-of-production notice exists; OEM maintains active mass production for critical motor drive bays requiring redundant Ethernet and thermal monitoring. Older REM610 series is fully EOL and commonly upgraded to series.
Q: Will motor thermal curves, RTD temperature thresholds and startup limit parameters persist after swapping the plug-in IED onto the existing baseplate?A: All motor protection tuning data, thermal model coefficients and RTD alarm setpoints reside in the plug-in IED’s internal flash memory. Back up the full project database from the old unit before removal and re-download to the new IED post-install; firmware mismatches corrupt parameter upload sequences and disable directional earth fault/RTD monitoring algorithms.
Q: What communication accessories are compatible with the rear RS485 and dual Ethernet ports?A: Ethernet supports IEC 61850 Ed2.0, Modbus TCP, DNP3 TCP/IP with PRP redundancy; terminal supports Modbus RTU and DNP3.0 serial protocols. Optional media converters support fiber optic Ethernet for long-distance substation bus runs; cross-reference the hardware manual for maximum cable distance and baud rate limits.
Q: Can this IED be deployed for distribution feeder or transformer primary protection?A: Native firmware and analog measurement architecture are optimized exclusively for asynchronous motor startup, thermal stress and rotating machine fault protection. Feeder/transformer primary protection requires REF615/REF630 feeder IED series; this model can only be used as backup overload protection for small distribution transformers.
