Product Core Brief
- Model: REF615E_E HBFEAEAGABCCANC11E (complete withdrawable assembly including matched dedicated draw-out baseplate)
- Brand: ABB
- Series: Relion® 615 REF615 Medium Voltage Feeder Protection & Control IED, E_E hardware generation, Standard Configuration Eeero
- Core Function: Full-featured draw-out intelligent feeder IED for radial, looped, meshed 3–36kV distribution networks with distributed generation. Standard Config E provides directional earth fault + full 5-channel VT voltage measurement, dual PRP redundant Ethernet, 3-channel arc flash detection, admittance-based sensitive earth fault and multi-shot auto-reclosing for complex double-busbar substation bayseero.
- Product Type: Premium Draw-out Feeder Protection IED Full Assembly (Plug-in Unit + Hardwired Draw-out Baseplate)
- Key Specs: H-type 100–240V AC/DC universal auxiliary supply | 16 Digital Inputs /10 Configurable Power Output Relays | Dual PRP 10/100Mbps Ethernet IEC 61850 GOOSE | 1A/5A software-selectable CT inputs, full 5 VT voltage channelseero
- Note: Active OEM mass production; factory sealed new full assemblies and fully bench load-tested surplus stocked for utility distribution substation new construction and emergency maintenance retrofits. Standard Configuration E is optimized for compensated Petersen coil neutral networks via admittance earth fault algorithmeero.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full Long Order Code | REF615E_E |
| Auxiliary Power Variant (H suffix) | 100–240 VAC / 48–250 VDC wide-range universal supply; peak 22W power draw |
| CT Input Hardware (F) | Phase & residual CT software selectable 1A / 5A secondary rating |
| Analog Measurement Channels (Config E) | 4 CT current channels + 5 VT voltage channels (3 phase VT, residual VT, auxiliary sync VT)eero |
| Binary I/O Layout (AB full expansion) | 16 galvanically isolated digital status inputs; 10 programmable power relay outputs (fast trip, breaker control, alarm, trip circuit supervision)eero |
| Core ANSI Protection Function Suite | 50/51 multi-stage phase overcurrent, 67 directional phase OC, 51N/67N sensitive directional earth fault, admittance-based earth fault protection (21YN), 46 negative sequence unbalance, 49 cable thermal overload, 50BF breaker failure, 79 multi-shot auto-reclose, 27/59 under/overvoltage, HIZ high impedance ground fault, 3-channel arc flash detection |
| Onboard Communication Interfaces | Dual 10/100M PRP redundant RJ45 Ethernet (IEC 61850 Ed2.0, GOOSE, MMS, SNTP IRIG-B time sync); rear RS485 serial port (Modbus RTU / DNP3.0); front optical SPA service port |
| Data Recording Capacity | 500 SOE timestamped event logs; 10 full-cycle COMTRADE fault disturbance waveform records; continuous non-volatile load profile trending storage |

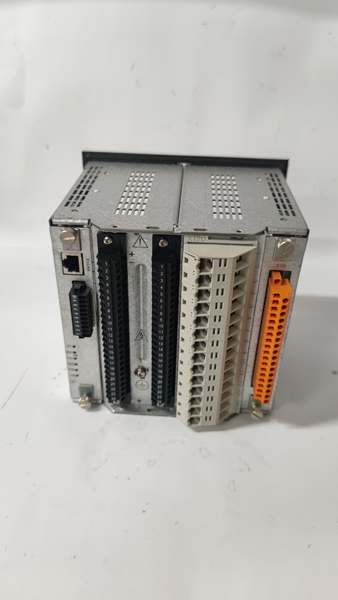

| Draw-out Mechanical Design | Hot-pluggable plug-in unit; baseplate integrated built-in CT shorting links to eliminate lethal CT open-circuit hazards during unit swap |

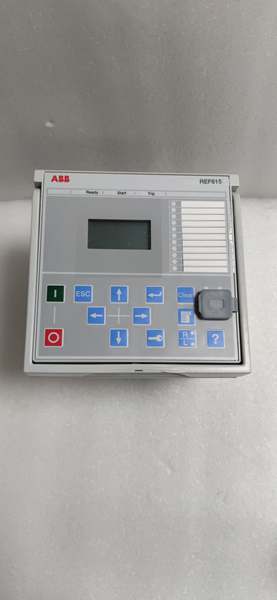

| HMI Interface | Full graphical multi-language LCD, 11 configurable LED status indicators, local breaker open/close pushbuttons + embedded WebHMI remote access |
| Front Panel Enclosure Rating | IP54 flush cabinet mount; rear baseplate terminal compartment IP20 |
| Operating Ambient Temp | -10 °C to +55 °C continuous rack operation; short-term storage -40 °C ~ +70 °C |
| Humidity Resistance | <95% RH non-condensing, ISA 71.04 G3 corrosion resistant conformal PCB coating |
| Mechanical Form Factor | 4U half-width 19-inch draw-out assembly |
| Full Assembly Dimensions | 177 mm W × 177 mm H × 155 mm D |
| Net Assembly Weight (IED + Baseplate) | 3.5 kg |
| Compliance Standards | IEC 60255, IEC 61850, UL508, KEMA type-tested, RoHS, SIL2 capable with certified protection logic |
Product Introduction
This REF615E_E variant adopts Standard Configuration E hardware & firmware stack, distinguished by full 5-channel VT voltage measurement and native admittance-based earth fault protection tailored for resonant/compensated Petersen coil earthed grids—an exclusive feature of Config E unavailable on A/C/D base configurationseero. Equipped with dual PRP redundant Ethernet, factory licensed three-channel arc flash detection and maximum 16DI/10DO binary I/O, it targets complex double-busbar, ring-meshed distribution and distributed generation substation bays requiring redundant substation communication and high-sensitivity earth fault selectivity.
The withdrawable baseplate integrates dedicated mechanical CT shorting links, removing dangerous CT open-circuit risks during unit replacement—only the plug-in IED is extracted while cabinet CT/VT and control wiring remain permanently terminated on the fixed baseplate. Dual PRP Ethernet ports deliver zero-switchover-time redundant substation communication, supporting high-speed cross-bay GOOSE interlocking without external network switches.
Embedded signal matrix programmable logic replaces external auxiliary relay racks for custom bay interlocks, overhead line multi-shot auto-reclosing and load shedding schemes. Disturbance recorders capture pre-fault and post-fault analog waveforms to accelerate post-outage root-cause analysis for overhead and underground distribution feeders. The front SPA optical port enables laptop parameterization without opening live cabinet low-voltage wiring terminals.
QA & Testing SOP (Transparency Building)
- Incoming Inspection: Cross-reference full long order code and matching IED/baseplate serial numbers against OEM spare registry to reject mismatched assemblies; inspect graphical LCD, dual Ethernet RJ45 ports, baseplate CT shorting links and conformal PCB coating for scratches, salt corrosion or moisture residue; log serial batches for full traceability records. Special verification of Config E 5-channel VT analog input continuity.
- Live Full Assembly Testing: Mount IED + baseplate to standard 4U test rack, supply stabilized 220V AC/DC auxiliary power, inject 1A/5A switchable CT/VT simulated fault signals, run continuous 24-hour protection element cycling, PRP Ethernet redundant failover stress testing and arc flash sensor input validation with full event/disturbance log recording.
- Electrical Testing: Use Fluke 115 multimeter and insulation resistance tester to verify chassis ground resistance below 0.5Ω and isolation resistance above 10MΩ separating auxiliary power, analog CT/VT and binary control circuit groups; validate mechanical CT shorting link continuity.
- Firmware/Config Backup: Record exact embedded firmware revision via PCM600 configuration tool, photograph baseplate Ethernet DIP address jumpers and RS485 bus switches, export complete protection setting groups, auto-reclose sequences and custom signal matrix logic to encrypted offline storage.
- Final QC & Packaging: Clean front LCD surface with anti-static microfiber cloth, cap SPA optical port and dual Ethernet RJ45 ports with dust protective plugs, separate plug-in IED and baseplate into individual ESD shielding bags, attach unified printed QC test tag with technician ID and full 24-hour runtime timestamp before foam-lined shock-resistant transit carton packaging.
Installation Pitfalls & Guide (Engineer to Engineer)
❗ Firmware Version Mismatch: Firmware builds newer than site PCM600 software block admittance earth fault calculation and disable PRP redundant Ethernet communication; cross-check OEM software compatibility matrix before downloading parameter sets.❗ CT Open-Circuit Safety Hazard: Always engage baseplate built-in CT shorting links before pulling the plug-in IED out; unshorted CT terminals generate lethal high secondary voltage and arc flash hazards during disassembly.❗ PRP Ethernet Port Cross-Wiring: Swapping Port A / Port B redundant RJ45 cables breaks zero-latency network failover; label cable ends during disassembly to match silkscreen port markings on the IED rear panel.❗ VT Wiring Mismatch For Config E: This unit has 5 dedicated VT channels; misconnecting residual voltage VT to CT terminals causes permanent measurement drift and earth fault misoperation; cross-reference Config E terminal wiring diagram.❗ RS485 Bus Address Conflicts: Duplicate bay node addressing floods substation Modbus/DNP3 serial bus with broadcast traffic; capture high-resolution photos of baseplate communication DIP jumpers prior to unit removal.❗ Auxiliary Supply Underrating: The full assembly draws peak 22W during simultaneous trip output actuation; shared cabinet DC power supplies with multiple IEDs trigger voltage sag and incomplete relay boot sequences.❗ ESD Dangers: Unwristed technician contact with rear exposed PCB traces corrupts flash-based protection settings and real-time clock backup circuits; field service logs show ungrounded handling destroyed this assembly with over $3,800 in hardware and substation outage labor costs.
4-step draw-out assembly replacement guide
- Pre-install: Lock out and tag out substation auxiliary supply, engage baseplate CT shorting links, fit certified anti-static wrist strap, photograph CT/VT wiring, binary DI/DO terminals, dual Ethernet PRP cabling and RS485 communication jumper positions.
- Removal: Unlatch draw-out unit locking handle, pull the plug-in IED fully out of the fixed wired baseplate (baseplate remains permanently terminated to cabinet wiring). Retain baseplate if undamaged; replace full assembly only if baseplate terminals show corrosion or burn damage.
- Install: If reusing original baseplate: slide new plug-in IED fully into baseplate rail and lock mechanical handle, replicate original Ethernet/RS485 DIP bus address jumpers. If replacing full kit: mount new baseplate to cabinet panel frame, reterminate all CT/VT, control and communication wiring per Config E 5-VT pinout specs, replicate bus address jumpers, then insert and lock the new IED unit.
- Power-on Test: Restore auxiliary supply power, disengage CT shorting links, upload matching firmware and full protection setting groups, inject simulated phase/earth/admittance/arc flash fault signals to validate trip output operation, test manual PRP Ethernet cable disconnection to confirm bumpless redundant communication, verify event logging and stable SCADA GOOSE data exchange.
FAQ (Frequently Asked Questions)
Q: What core differences separate REF615E_E from A/C/D standard configuration REF615 variants?A: This is Standard Configuration E, featuring 5 VT voltage measurement channels and native admittance-based earth fault protection optimized for Petersen coil compensated networks; A/C/D models have fewer VT inputs and lack admittance EF algorithms. It carries dual PRP Ethernet, 16DI/10DO I/O and factory arc flash detection, matching premium F variant communication hardware but with dedicated compensated grid protection logiceero.Q: Can the plug-in IED be hot-swapped while baseplate auxiliary power remains energized?A: Mechanical draw-out design permits unit extraction with auxiliary power live only after fully engaging CT shorting links. Never pull the IED without shorting CT circuits—this creates lethal arc flash hazards and permanent CT winding damage. Full cabinet lockout/tagout is recommended for complete baseplate replacement.Q: What warranty coverage applies to stocked full draw-out assemblies with baseplate?A: Factory-new OEM IED kits carry a 12-month manufacturer warranty covering plug-in processing unit, baseplate terminal assembly, Ethernet transceivers and all protection logic functions. Bench-tested surplus full assemblies ship with a 6-month functional warranty; physical damage from CT open-circuit transients, miswiring, arc flash or ungrounded ESD handling voids all coverage terms.Q: Has ABB issued formal EOL documentation for the REF615E_E hardware platform?A: No formal end-of-production notice exists; OEM maintains active mass production for compensated neutral substation projects and legacy plant retrofit spare demand. Older REF610 series is fully EOL and commonly replaced with REF615 series.Q: Will protection setting groups, auto-reclose logic and admittance earth fault tuning parameters persist after swapping the plug-in IED onto the existing baseplate?A: All trip curves, fault thresholds and admittance grid compensation logic reside in the plug-in IED’s internal flash memory. Back up the full project database from the old unit before removal and re-download to the new IED post-install; firmware mismatches corrupt parameter upload sequences and disable admittance EF calculation.Q: What communication accessories are compatible with the rear RS485 and dual Ethernet ports?A: Ethernet supports IEC 61850, Modbus TCP, DNP3 TCP/IP with PRP redundancy; terminal supports Modbus RTU and DNP3.0 serial protocols. Optional media converters support fiber optic Ethernet for long-distance substation bus runs; cross-reference the REF615 hardware manual for maximum cable distance and baud rate limits.Q: Can this IED be deployed for transformer differential or high-voltage transmission line primary protection?A: Native protection suite is optimized for medium voltage distribution feeder applications only. Transformer differential and high-resolution distance line protection require ABB REF630 series IEDs; this REF615E_E model is suitable for feeder primary protection and backup protection for distribution transformers.
