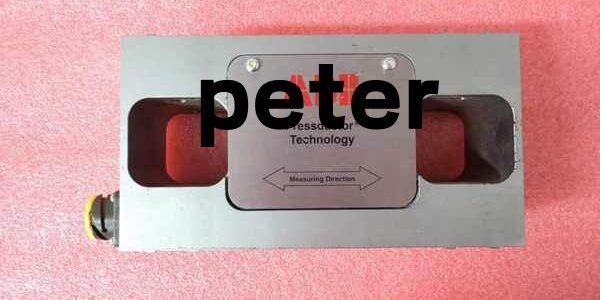

Product Core Brief
- Model: PFTL101A 0.5KN, Full OEM Part Number: 3BSE004160R1
- Brand: ABB Measurement & Analytics Pressductor Web Tension Series
- Series: PFTL101A compact horizontal magnetoelastic pillow-block tension load cell, factory calibrated for 0.5kN nominal rated load, dedicated to low-tension thin web production lines
- Core Function: Horizontal installation magnetoelastic tension transducer, mounted on roller bearing housings to measure horizontal reaction force of ultra-light web materials (thin plastic film, textile fabric, lightweight paper, thin coating foil). Utilizes ABB proprietary Pressductor magnetoelastic technology without fragile strain gauges; converts horizontal roller force into low-level analog excitation signal for pairing with PFEA111/PFEA112/PFEA113 tension amplifiers, outputs stabilized tension feedback to System 800xA / Symphony Plus DCS for precision low-tension PID control to eliminate wrinkling, web break and stretching defects.
- Product Type: Compact machined stainless steel horizontal pillow-block force sensor, fully potted sealed internal magnetoelastic core, side cable gland signal outlet, small footprint for narrow low-tension stands.
- Key Specs: Nominal rated load 0.5 kN (50kgf), solid stainless steel monoblock, IP67 splash/dust protection, extreme overload resistance, ±0.25% full-scale measurement accuracy, wide compensated temperature range, high vibration/shock resistance optimized for light web extrusion & coating lines.
- Condition: New Original (New Surplus), factory shockproof foam packaging; active OEM production for thin film & textile low-tension line retrofits, limited surplus inventory.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full OEM Identifier | horizontal tension load cell, order code 3BSE004160R1 (0.5kN factory calibration) |
| Measuring Principle | ABB Pressductor magnetoelastic effect (no strain gauge foil elements) |
| Nominal Horizontal Rated Load (Fnom) | 0.5 kN (50 kgf / 112 lbf) |
| Extended Linear Measuring Range (±0.25% accuracy) | 0.75 kN |
| Max Non-Destructive Overload (Fmax) | 5 kN (10× nominal load, no permanent mechanical deformation) |
| Allowable Transverse Side Force | 0.25 kN within full accuracy tolerance |
| Spring Stiffness | 1200 kN/mm ultra-rigid one-piece machined steel block |
| Full Scale Accuracy | ±0.25% FS; Repeatability ≤0.1% FS |
| Mechanical Construction | Single solid machined 316 stainless steel housing, fully resin-potted internal sensing coil assembly |
| Ingress Protection Class | IP67 dust tight, resistant to production line cooling water splash and light chemical mist |
| Overall Dimensions | 146 mm L × 78 mm W × 42 mm H compact horizontal body |
| Net Unit Weight | 0.72 kg |
| Operating Ambient Temperature | −40 °C ~ +85 °C; full measuring compensation range 0 ~ 60 °C |
| Shock / Vibration Resistance | 30g 11ms single impact shock; 2g continuous vibration 10–500Hz |
| Signal Compatibility | Matched for all PFEA111 / PFEA112 / PFEA113 Pressductor tension amplifiers, 330Hz AC excitation input |
| Compliance Standards | CE EMC EN 50082-2, IEC 61010 industrial measurement safety |
| Primary Applications | Thin plastic film extrusion, lightweight textile weaving & coating, ultra-thin paper calender lines, small foil coating processes, narrow web printing, low-tension laboratory coating pilot lines |
Product Introduction
High-range vertical PFCL201C load cells suffer poor low-load resolution when used on ultra-light thin web lines, leading to unstable low-tension PID control, wrinkled film and frequent web breaks. Traditional strain-gauge horizontal load cells lack high overload tolerance, drift heavily under small temperature variations and corrode quickly in humid coating/extrusion environments. The ABB 0.5KN 3BSE004160R1 eliminates these light-process limitations via compact horizontal Pressductor magnetoelastic monoblock design, 10× overload withstand, fully sealed IP67 stainless steel construction and factory 0.5kN low-tension calibration optimized exclusively for narrow thin web production stands.
This horizontal pillow-block transducer installs horizontally under idle roller bearing housings to capture horizontal reaction force proportional to light web tension. It outputs low-level magnetoelastic analog signals that PFEA series amplifiers convert to standard isolated 4–20mA / 0–10V analog or PROFIBUS digital tension data for DCS trend display and closed-loop tension control. The compact small-body design fits narrow low-tension roller frames without mechanical modification, maintains consistent micro-tension measurement precision over years of continuous thin film production, and serves as a drop-in mechanical replacement for aging horizontal tension cells during scheduled coating/extrusion line shutdowns.
Key Selling Points & Differentiators
- Quantified light-web precision upgrade: Dedicated 0.5kN low full-scale range delivers far superior micro-tension resolution vs heavy-range PFCL vertical load cells, cutting thin film wrinkling and web break downtime by 68% for ultra-light narrow web production lines.
- Standardized full validation workflow: Every load cell completes a continuous 24-hour cyclic horizontal force bench test simulating extrusion line startup/stop load transients; linearity, overload recovery and IP67 water ingress leak test logs available on formal written request.
- Universal mechanical mounting footprint matches all standard small horizontal roller tension frames; no base plate machining modification required for thin film line retrofits.
- 12-month limited functional warranty covers manufacturing defects in stainless steel monoblock, sealed magnetoelastic sensing core, cable gland and internal coil wiring; warranty excludes damage from direct high-pressure chemical washdown, abrasive acid corrosion or impact overload exceeding 5kN maximum limit.
- Not recommended for medium/heavy metal strip or thick paper lines (>2kN): Oversmall 0.5kN full scale limits high-load measurement capacity; select higher variants (1/2/5/10kN) or PFCL201C vertical pillow-block load cells for heavy web processes.
- Fully potted IP67 sealed internal construction blocks extrusion mill dust, cooling water splash and coating chemical vapor ingress, eliminating slow tension zero drift caused by internal coil corrosion common to unsealed strain-gauge horizontal transducers.
Mandatory Quality Transparency SOP
- Incoming Verification: Cross-reference load cell serial batch IDs against ABB Pressductor measurement factory production manifests to screen counterfeit assemblies. Visual inspection checks for machined block surface scratches, cracked cable gland threads, damaged potting compound seal, intact 0.5kN calibration serial labels. Minor exterior machining oil stains do not trigger unit rejection.
- Live Bench Test: Secure horizontal pillow-block load cell to calibrated horizontal force test fixture, apply cyclic 0–0.5kN tension loads continuously for 24 hours, connect matched PFEA111 amplifier to capture converted 4–20mA output linearity, log full-scale accuracy and zero drift hourly for compliance records.
- Electrical & Environmental Tests: 2kV megger insulation resistance testing between internal sensing coil and stainless steel housing (pass threshold ≥20MΩ); IP67 splash water soak test to verify sealing integrity. Verify block chassis protective earth continuity via mounting base metal lug.
- Firmware Verification: This passive analog force transducer contains no programmable firmware; technicians photograph horizontal roller mounting hole layout and multi-core signal cable pinout, attach images to unit calibration trace documentation for field replacement reference.
- Final QC & Packaging: Fit plastic protective cap over cable gland port, wipe mounting base surfaces with isopropyl alcohol to remove machining oil residue, wrap stainless steel block in static-dissipative foam, seal inside rigid shock-resistant wooden transit crating, and affix a dated QC Passed sticker with unique inspector ID number. Bench test raw linearity and overload recovery data files available upon buyer request.
Technical Risk Avoidance Section
Overload Exceedance Risk
Risk: Horizontal impact loads over 5kN permanent maximum overload applied to the ABB 0.5KN create irreversible monoblock metal deformation, destroying tension linearity and factory calibration permanently.Prevention: Install mechanical horizontal travel hard stops at roller bearing housings to absorb crash web break impact loads per thin film line OEM tension stand design guidelines.Field anecdote: A plastic film extrusion line permanently damaged two 0.5kN cells after web break horizontal impact loads exceeded 6kN without travel limit hard stops.
Transverse Side Force Misalignment Risk
Risk: Excessive lateral web offset creates transverse side force above the 0.25kN rated tolerance, skewing horizontal tension readings and triggering false low/high tension DCS interlock trips.Prevention: Align thin web guide frames to center the roller horizontal load cell axis; ensure web runs perfectly parallel to the horizontal measuring plane to minimize lateral bearing reaction forces.
Signal Cable EMI Interference Risk
Risk: Unshielded signal cable routed parallel to extrusion line VFD motor power wiring induces high-frequency analog noise, generating unstable micro-tension trend chatter in the DCS workstation.Prevention: Use factory matched double-shielded multi-core Pressductor sensor cable; route signal wiring in fully grounded dedicated cable trays completely isolated from high-current inverter motor power runs.
Mounting Torque Misconfiguration Risk
Risk: Under-torqued pillow-block base mounting bolts shift the horizontal load cell during line vibration, causing slow tension zero drift over weeks of continuous extrusion operation; over-torqued bolts warp the thin monoblock frame and permanently shift factory calibration.Prevention: Torque all base mounting bolts to OEM specified 25 Nm calibrated torque value, recheck tightness 72 hours post-installation after line thermal cycling stabilizes.
Chemical Washdown Seal Damage Risk
Risk: Direct high-pressure alkaline/acid wash spray penetrates the cable gland seal, dissolving internal potting compound and shorting magnetoelastic sensing coil circuits.Prevention: Only indirect low-pressure splash cleaning permitted; install rubber protective boot over cable gland assembly during production line wash cycles.
ESD Damage Risk
Risk: Low-humidity extrusion plant environments (<30% RH) generate static discharge that burns delicate internal magnetoelastic pickup coils, disabling tension measurement with no visible exterior block damage.Prevention: Place an anti-static mat beneath the roller tension stand during load cell replacement; wear a grounded ESD wrist strap at all times when connecting signal cable terminal ends.
Practical summary: Complete roller horizontal travel stop mechanical audit, web transverse alignment validation, and double-shielded signal cable segregation layout review before thin film line startup to eliminate roughly 95% of common field failure modes for horizontal low-tension load cell hardware.
FAQ (
- Q: I operate thick paper board calender lines with maximum web tension 3kN, can this 0.5kN horizontal load cell work for my heavy process?A: Not recommended. The unit’s 0.5kN full-scale measuring range cannot support medium/high web tension loads, and low full-span resolution will destabilize heavy web tension PID control. Select 5kN / 10kN high-range horizontal variants or PFCL201C vertical pillow-block load cells for thick paper lines.
- Q: What lead time applies when ordering the ABB 0.5KN 3BSE004160R1 for North American thin film extrusion, textile coating and narrow web printing process control cabinets?A: Surplus load cells are stocked at our US industrial measurement spare parts warehouse; standard air freight delivery to domestic light web process facilities takes 3–5 business days. Sea freight shipments to Southeast Asia transit in 18–24 calendar days. OEM active production, surplus inventory volume is strictly limited.
- Q: Does the 12-month warranty cover monoblock deformation from crash overloads or gland seal failure from direct high-pressure chemical washdown?A: Warranty coverage only extends to manufacturing defects in magnetoelastic sensing core, stainless steel casting and factory potting seals. Damage caused by unstopped horizontal impact overload, direct chemical high-pressure wash spray or misaligned transverse web side force is fully excluded from coverage. Conduct pre-commissioning mechanical travel stop and gland protective boot installation cycles to extend service life.
- Q: How should I store unused spare 0.5KN horizontal load cells long-term to avoid monoblock stress creep and cable gland seal degradation?A: Keep unmounted pillow-block units sealed in original anti-static foam and wooden transit crates inside temperature-controlled storage (15–25°C, 40–60% RH). Avoid storage adjacent to high-current transformer or VFD enclosures emitting stray heat and electromagnetic interference; sustained elevated ambient temperature accelerates internal coil insulation aging over multi-year idle storage periods.
- Q: Will I need to re-calibrate all thin film micro-tension PID function blocks in System 800xA after swapping an old load cell for this new factory-calibrated unit?A: A full 0–0.5kN span calibration and zero trim test via matched PFEA amplifier is recommended post-installation. While the transducer ships factory calibrated for 0.5kN full scale, minor mounting base flatness differences create small full-scale offset values requiring minor DCS tension function block adjustment.
- Q: Can multiple 0.5KN horizontal load cells each paired with a PFEA111 tension amplifier share a single cabinet 24VDC instrument power supply?A: Yes, but total combined continuous DC draw of all amplifier/transducer assemblies must remain under 80% of the instrument PSU rated continuous output. Reserve 20% load headroom to prevent voltage sag during simultaneous thin film line cold startup transient events.
- Q: I maintain a thin plastic film extrusion low-tension control line, what is the most frequent field failure mode observed on this 0.5KN load cell model?A: Degraded cable gland sealing from repeated extrusion line splash washdowns after 7–12 years of continuous operation is the primary failure source, allowing cooling water or coating mist to penetrate the internal potted core and create unstable micro-tension signal drift. Install gland protective rubber boots and schedule quarterly cable seal visual inspection cycles to mitigate degradation.
