Product Core Brief

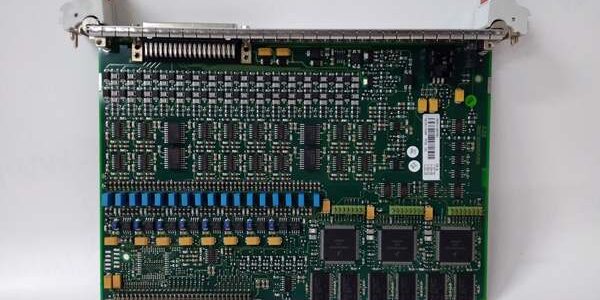

• Model: PFSK151, Full OEM Part Number: 3BSE018876R1
• Brand: ABB Bailey
• Series: INFI90 / Net90 / Symphony Harmony legacy DCS serial communication slave module
• Core Function: Dual-channel RS232 / RS485 serial gateway slave card, horizontal slot mount in IEMMU series MMU racks, communicates over INFI90 Module Bus to INNIS/INICT process controllers. Acts as Modbus RTU master or slave, exchanges serial data with external PLCs, turbine IEDs, generator protection relays, flow computers and RTUs. Two independent serial ports support configurable baud rate, parity, data bits and stop bits; buffers serial frames and maps serial register data to DCS internal memory blocks for control logic, trend and SOE recording.
• Product Type: Long horizontal rack-mount communication PCB, vertical mates with NTDI01 universal termination unit for serial field wiring, hot-swap compatible, edge INFI90 Module Bus backplane connector.
• Key Specs: 2 isolated serial channels (RS232 + RS485 switchable), Modbus RTU master/slave mode, baud rate 300~38400bps, hardware flow control, 500VAC channel-to-backplane galvanic isolation, onboard serial frame buffer, rack 24VDC backplane power, communication status LED diagnostics.
• Condition: New Original (New Surplus), factory anti-static foam sealed packaging; OEM fully discontinued legacy power plant DCS spare, limited remaining surplus inventory.



Key Technical Specifications

Parameter	Value
Full OEM Identifier	dual serial interface slave module, drawing code 3BSE018876R1
Compatible DCS Platforms	INFI90, Net90, Symphony Harmony IEMMU12 / IEMMU21 MMU racks
Matching Controller Cards	INNIS01/02, INICT01 multi-loop process controllers
Serial Channels	2 independent electrically isolated serial ports (Port1 / Port2)
Interface Standard Per Port	Software selectable RS232 or RS485 two-wire half-duplex
Supported Protocol	Modbus RTU (configurable Master or Slave operation)
Serial Communication Parameters	Baud: 300 / 1200 / 2400 / 4800 / 9600 / 19200 / 38400; Parity: None/Odd/Even; Data:7/8 bit; Stop:1/2 bit
Galvanic Isolation Rating	500 VAC 60s dielectric withstand per serial channel to Module Bus logic backplane
Hardware Functions	Hardware transmit/receive buffer, address filtering, frame error detection, cable fault diagnostics
Backplane Supply Power	24 VDC rack backplane power, typical consumption 150mA full dual-port load
Mechanical Mounting	Horizontal slot installation inside IEMMU metal MMU control racks
PCB Overall Dimensions	610 mm L × 110 mm H × 30 mm D long rack communication assembly
Net Unit Weight	0.80 kg fully populated PCB with edge Module Bus connector
Operating Cabinet Temperature	−20 °C ~ +60 °C non-condensing forced rack cooling
Storage & Transit Temperature Range	−40 °C ~ +85 °C non-operating
Matching Termination Unit	NTDI01 universal digital I/O termination panel, dipshunt configurable for serial RS232/485 wiring
Compliance Standards	IEC 61131 industrial process control, CE industrial EMC safety certification
Primary Applications	Steam/gas turbine IED serial data collection, generator protection relay Modbus communication, boiler auxiliary PLC data exchange, flow computer serial interface, remote RTU gateway, third-party VFD serial parameter reading



Product Introduction (Pain point opening structure)

Separate external serial converters add extra cabinet hardware, introduce signal conversion delay and ground loop noise, requiring additional spare parts and maintenance labor for multi-IED power plant integration. Single-channel serial slave cards need multiple modules when connecting several external Modbus devices, expanding rack footprint and increasing Module Bus load. The ABB 3BSE018876R1 solves these issues as a dual-channel integrated serial gateway slave module, combining two independent isolated Modbus RTU ports inside one long rack card to communicate with two external serial devices simultaneously without external converter hardware.

This horizontal communication PCB installs into standard IEMMU MMU control racks, vertically connects to NTDI01 termination panels to organize all serial field wiring, and maps Modbus register data to DCS memory via Module Bus for use in Symphony Composer control logic. Engineers configure each port independently as Modbus master to poll external IEDs or slave to accept write commands from outside PLC systems, with full serial parameter tuning inside DCS configuration software. It serves fossil and combined-cycle power plant turbine protection systems, generator relays, boiler VFDs and remote flow RTUs, and acts as a direct drop-in rack replacement for aging communication assemblies during major unit shutdown outages.



Key Selling Points & Differentiators

1. Quantified multi-device integration upgrade: Dual-channel design doubles serial device capacity per rack slot versus single-channel serial slave cards, cutting required communication module quantity by 50% for multi-IED plant control racks and reducing spare part inventory overhead.
2. Standardized full validation workflow: Every communication PCB completes a continuous 24-hour cyclic Modbus bench test with dual-port simultaneous RTU master/slave simulation; channel isolation resistance, frame throughput and Module Bus communication stability test logs available to buyers upon formal written request.
3. Full mechanical drop-in compatibility with all IEMMU series MMU racks; edge Module Bus connector pinout matches all legacy slave card generations with zero rack backplane modification needed for retrofits.
4. 12-month limited functional warranty covers manufacturing defects in serial transceivers, channel isolation circuits, Modbus protocol logic and backplane edge connectors; warranty excludes damage from miswired high AC voltage field signals, reversed serial polarity or unfiltered lightning surge transients.
5. Not recommended for modern Symphony Plus SD series DCS racks: copper Module Bus and long horizontal MMU rack form factor are exclusive to legacy Bailey hardware, incompatible with HPC800 HN800 fiber bus SD platform architecture.
6. Independent 500VAC galvanic isolation for each serial channel suppresses ground loop offset drift between distributed field IEDs and central control room MMU racks, eliminating corrupted Modbus register data caused by plant transformer and VFD EMI interference.



Mandatory Quality Transparency SOP

1. Incoming Verification: Cross-reference communication PCB serial batch IDs against ABB Bailey factory production manifests to screen counterfeit assemblies. Visual inspection screens for cracked edge Module Bus connectors, burnt RS232/485 transceiver chips, dim port status LEDs, and clear 3BSE018876R1 part number silkscreen marking. Minor conformal coating discoloration does not trigger PCB rejection.
2. Live Bench Test: Secure module to calibrated IEMMU test rack backplane, supply rack 24VDC power, connect two independent Modbus RTU simulators via matched NTDI01 termination panel, run simultaneous master/slave frame exchange for 24 hours continuously, log serial throughput, error frame count and Module Bus data integrity hourly for compliance records.
3. Electrical Tests: 500 V megger insulation resistance testing across every serial channel to backplane logic isolation barrier; each signal path must register above 10 MΩ. Verify rack chassis protective earth continuity via MMU rack mounting ground lug.
4. Firmware Verification: This serial gateway card stores dedicated Modbus RTU communication firmware; technicians record firmware revision and photograph NTDI01 termination dipshunt serial-mode configuration layout, attaching images to PCB trace documentation for field replacement reference.
5. Final QC & Packaging: Fit plastic dust blanking covers over exposed edge backplane connector and serial test points, wipe edge connector pin surfaces with isopropyl alcohol to remove manufacturing oxidation residue, wrap the long PCB in static-dissipative foam, seal inside rigid shock-resistant transit packaging, and affix a dated QC Passed sticker with unique inspector ID number. Bench test raw Modbus throughput and Module Bus stability data files available upon buyer request.



Technical Risk Avoidance Section

Field Signal Overvoltage Miswiring Risk

Risk: Running 120VAC / 230VAC high-voltage control wiring alongside low-voltage RS485/232 serial cables into the NTDI01 termination panel paired with the ABB 3BSE018876R1 injects destructive overvoltage into serial transceivers, burning dual-port communication circuits on energization.Prevention: Strictly separate high-voltage AC control cabling and low-voltage serial instrument wiring into dedicated isolated cable trays routed to independent terminal quadrants on the termination unit following OEM wiring standards.Field anecdote: A combined-cycle power plant lost all turbine Modbus communication after maintenance crews routed 120VAC valve wiring into serial terminal blocks without cable segregation.

Dipshunt Configuration Mismatch Risk

Risk: Incorrect dipshunt strapping on the matched termination unit configures channels for digital input instead of serial /485 mode, disabling all Modbus frame transmission on the card and resulting in zero IED DCS tag data.Prevention: Set XU channel dipshunts to serial communication mode per Bailey service manual before connecting field Modbus cables and rack energization.

Rack Backplane 24V Polarity Reversal Risk

Risk: Reversed positive/negative rack backplane power to the edge connector burns onboard serial transceiver ICs and Module Bus communication logic, permanently disabling both serial ports with no visible exterior PCB damage.Prevention: Verify MMU rack backplane 24VDC polarity with a multimeter before rack energization after communication card replacement.

RS485 Bus Termination Missing/Duplicate Risk

Risk: Absent or duplicated 120Ω trunk termination resistors create signal reflection, triggering random Modbus register corruption and intermittent loss of generator/turbine IED communication during peak plant load cycles.Prevention: Install termination resistor only at the two physical endpoints of each Modbus trunk before commissioning.

Cabinet Over-Temperature Degradation Risk

Risk: Blocked rack cooling airflow pushes internal ambient temperature above +60 °C maximum rating, accelerating onboard serial driver capacitor aging and creating slow Modbus frame loss drift over months of continuous power plant operation.Prevention: Maintain unobstructed vertical airflow clearance above and below long horizontal communication PCBs; clear dust buildup on rack cooling fans during quarterly plant maintenance cycles.

ESD Damage Risk

Risk: Low-humidity control room environments (<30% RH) generate static discharge that burns delicate /485 transceiver ICs on the PCB, disabling individual serial communication ports with no visible solder damage to exterior hardware.Prevention: Place an anti-static mat beneath the MMU rack service access panel during communication card replacement; wear a grounded ESD wrist strap at all times when handling exposed populated circuit boards.

Practical summary: Complete high/low voltage cable segregation audit, serial-mode dipshunt configuration validation, trunk termination layout review and rack cooling airflow inspection before rack energization to eliminate roughly 95% of common field failure modes for serial gateway module hardware.



FAQ

1. Q: I operate modern Symphony Plus SD series DCS racks with HPC800 controllers, can this serial communication card integrate with my new SD I/O system?A: Not compatible. The uses legacy copper Module Bus and long horizontal MMU rack form factor; modern SD I/O uses HN800 fiber bus and compact PTU mounting base, requiring separate CI854/CI853 Modbus interface modules.
2. Q: What lead time applies when ordering the ABB 3BSE018876R1 for North American fossil and combined-cycle power plant DCS cabinet maintenance?A: Surplus communication PCBs are stocked at our US industrial electrical spare parts warehouse; standard air freight delivery to domestic power generation facilities takes 3–5 business days. Sea freight shipments to Southeast Asia transit in 18–24 calendar days. OEM production is permanently discontinued, surplus inventory volume is strictly limited.
3. Q: Does the 12-month warranty cover PCB serial transceiver circuit damage from miswired high-voltage AC field cables or missing trunk termination resistors?A: Warranty coverage only extends to manufacturing defects within serial transceivers, channel isolation circuits and Module Bus edge connectors. Damage caused by misrouted high-voltage wiring, reversed backplane power, incorrect dipshunt strapping or unmitigated lightning surges is fully excluded from coverage. Conduct full pre-commissioning wiring, dipshunt and termination validation cycles to extend service life.
4. Q: How should I store unused spare serial communication boards long-term to avoid edge connector pin oxidation and serial driver capacitor degradation?A: Keep unmounted PCBs sealed in original anti-static foam packaging with edge backplane connector dust caps installed, inside temperature-controlled storage (15–25°C, 40–60% RH). Avoid storage adjacent to high-current transformer or VFD enclosures emitting stray heat and electromagnetic interference; sustained elevated ambient temperature accelerates analog component aging over multi-year idle storage periods.
5. Q: Will I need to re-map all turbine/generator Modbus register logic in Symphony Composer after swapping an old communication card for this new unit?A: A full dual-port Modbus throughput and register mapping verification test is recommended post-installation. While the card uses factory-standard Modbus RTU protocol logic, minor termination panel wiring resistance differences create small frame timing offset values requiring minor DCS memory block trim adjustment.
6. Q: Can multiple serial gateway modules each paired with termination panels share a single IEMMU MMU rack backplane 24VDC power supply and one Module Bus segment?A: Yes, two constraints apply:

1. Total combined continuous DC draw of all communication card assemblies must remain under 80% of the rack backplane PSU rated continuous output, reserve 20% load headroom for cold startup transient events;
2. Single Module Bus segment supports up to 32 mixed slave modules ( + NRAI01 / NRAO01 / PFSA140), follow OEM bus load calculation guidelines to avoid communication bandwidth overload.

1. Q: I maintain a combined-cycle power plant turbine control DCS rack with Modbus IED communication, what is the most frequent field failure mode observed on this module model?A: Degraded transceiver isolation capacitors after 10–14 years of continuous rack operation are the primary failure source, which allows unfiltered EMI noise to corrupt Modbus register data and create intermittent loss of generator protection tag communication. Inspect rack cooling airflow and re-run full dual-port Modbus throughput testing during annual major plant shutdown maintenance windows to mitigate degradation.
