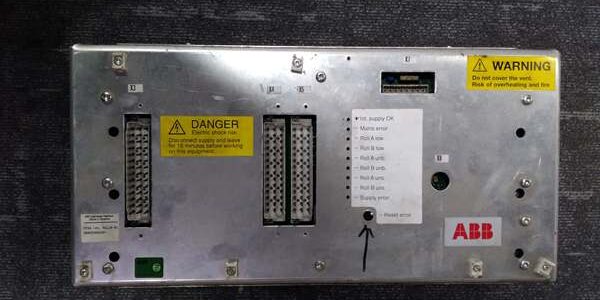

Product Core Brief

• Model: PFSA140, Full OEM Part Number: 3BSE006503R1
• Brand: ABB Bailey
• Series: INFI90 / Net90 / Symphony Harmony legacy DCS pulse input slave module
• Core Function: 4-channel isolated pulse/tachometer/frequency acquisition slave card, mounted horizontally in IEMMU series MMU metal control racks, communicates via INFI90 Module Bus to INNIS/INICT controller cards. Captures square-wave pulse signals from tachometer generators, proximity speed sensors, flow pulse transmitters and encoder pickups; converts 0–10kHz frequency pulses into engineering unit speed/flow values for DCS trend, PID control and sequence-of-event logging. Each channel features hardware debounce, pulse scaling, overvoltage protection and channel fault diagnostics.
• Product Type: Long horizontal rack-mount slave PCB, vertical mating to NRAI/NTDI series pulse termination units (NTDI01 universal TU), hot-swap capable, INFI90 Module Bus interface edge connector.
• Key Specs: 4 independent pulse input channels, input frequency range 0–10kHz, compatible 24VDC active / dry contact pulse signals, hardware pulse debounce filtering, 500VAC per-channel galvanic isolation, onboard channel break detection, rack +24VDC backplane power, programmable pulse scaling factor via DCS logic.
• Condition: New Original (New Surplus), factory anti-static foam sealed packaging; OEM fully discontinued legacy power plant DCS spare, limited remaining surplus inventory.



Key Technical Specifications

Parameter	Value
Full OEM Identifier	4-channel pulse input slave module, drawing code 3BSE006503R1
Compatible DCS Platforms	INFI90, Net90, Symphony Harmony legacy rack systems (IEMMU21 / IEMMU12 MMU racks)
Compatible Controller Cards	INNIS01/02, INICT01, INNPM01 multi-loop process controllers
Supported Input Signal Types	24VDC active square wave pulses, dry contact reed/tacho pulse signals, NPN open collector proximity sensor signals
Measuring Frequency Bandwidth	0 Hz ~ 10 kHz maximum per channel
Channel Quantity	4 fully isolated pulse input channels grouped 2+2 dual bank layout
Galvanic Isolation Rating	500 VAC 60s dielectric withstand per individual channel to backplane logic
Built-In Signal Conditioning	Hardware RC pulse debounce filter, transient overvoltage surge suppression on each channel
Diagnostics Logic	Per-channel wire break detection, pulse activity status flag, Module Bus communication health LED
Backplane Supply Power	24 VDC rack backplane power, typical draw 120mA full load
Mechanical Mounting	Horizontal slot mounting inside IEMMU series metal MMU control racks
Overall PCB Dimensions	610 mm L × 110 mm H × 30 mm D long rack slave assembly
Net Unit Weight	0.78 kg fully populated PCB with edge Module Bus connector
Operating Cabinet Temperature	−20 °C ~ +60 °C non-condensing forced rack cooling
Storage & Transit Temperature Range	−40 °C ~ +85 °C non-operating
Matching Termination Unit	NTDI01 universal digital I/O termination panel (configurable for pulse input mode via dipshunts)
Compliance Standards	IEC 61131 industrial process control, CE industrial EMC safety certification
Primary Applications	Steam/gas turbine tachometer speed monitoring, boiler forced/draft fan motor RPM measurement, cooling water flow pulse transmitters, feed pump encoder speed pickup, conveyor line pulse flow counting, generator rotational speed supervision



Product Introduction

Generic analog speed measurement cards convert tachometer pulses to analog 4–20mA signals, introducing extra signal conversion drift, loss of pulse resolution and extra wiring failure points between field sensors and DCS racks. Legacy single-channel pulse boards require multiple slave cards for multi-motor/turbine speed monitoring, expanding rack footprint and spare part inventory overhead. The ABB 3BSE006503R1 eliminates these limitations as a high-density 4-channel dedicated pulse input slave module, directly capturing raw digital pulse signals from speed and flow sensors without intermediate analog conversion, preserving full pulse resolution for accurate turbine/fan speed PID regulation and flow totalization.

This long horizontal slave PCB installs into standard IEMMU MMU control racks, mates vertically to NTDI01 field termination panels to centralize pulse sensor wiring, and transmits scaled frequency/speed data over the Module Bus to Bailey multi-loop controllers. Plant control engineers configure pulse scaling factors within Symphony Composer logic to translate raw Hz pulses directly into RPM, m³/h or kg/h engineering units without external signal conditioning hardware. It serves fossil power plant boiler auxiliary equipment, gas/steam turbine generator speed supervision, cooling water process flow measurement and industrial conveyor pulse counting systems, and fits as a direct drop-in rack replacement for aging pulse slave assemblies during major unit shutdown outages.



Key Selling Points & Differentiators

1. Quantified multi-point monitoring upgrade: 4-channel high-density pulse input design cuts required slave card quantity by 75% for multi-motor speed racks versus single-channel pulse modules, reducing DCS cabinet space and spare part inventory costs for power plant auxiliary monitoring systems.
2. Standardized full validation workflow: Every slave PCB completes a continuous 24-hour cyclic pulse bench test cycling 0–10kHz square wave signals across all four channels; channel isolation resistance, pulse capture linearity and Module Bus communication stability test logs available to buyers upon formal written request.
3. Fully mechanical drop-in compatibility with all IEMMU series MMU racks; edge Module Bus connector pinout matches all legacy slave card generations with zero rack backplane modification required for retrofits.
4. 12-month limited functional warranty covers manufacturing defects in pulse capture logic ICs, per-channel isolation circuits, backplane communication edge connectors and onboard surge suppression components; warranty excludes damage from miswired high AC voltage field signals or unfiltered lightning surge transients.
5. Not recommended for modern Symphony Plus SD series DCS racks: Module Bus protocol and long horizontal rack form factor are proprietary to legacy Bailey hardware, incompatible with HPC800 HN800 fiber bus SD platform architecture.
6. Independent 500VAC galvanic channel isolation blocks ground loop noise drift between distributed field tacho/speed sensors and central control room MMU racks, eliminating unstable turbine/fan speed trend chatter caused by plant transformer and VFD EMI interference.



Mandatory Quality Transparency SOP

1. Incoming Verification: Cross-reference slave PCB serial batch IDs against ABB Bailey factory production manifests to screen counterfeit assemblies. Visual inspection screens for cracked edge Module Bus connectors, burnt pulse input protection resistors, dim channel status LEDs, and permanent 3BSE006503R1 part number silkscreen labels. Minor conformal coating surface discoloration does not trigger PCB rejection.
2. Live Bench Test: Secure the module to calibrated IEMMU test rack backplane, supply rack 24VDC backplane power, connect four variable-frequency pulse signal generators to matched NTDI01 termination panel, cycle 0–10kHz pulse waveforms continuously for 24 hours, log pulse capture linearity, per-channel fault detection and Module Bus data integrity hourly for compliance records.
3. Electrical Tests: 500 V megger insulation resistance testing across every pulse input channel to backplane logic isolation barrier; each signal path must register above 10 MΩ. Verify rack chassis protective earth continuity via MMU rack mounting ground lug.
4. Firmware Verification: This pulse slave card stores fixed pulse acquisition firmware; technicians record firmware revision and photograph NTDI01 termination dipshunt pulse-mode configuration layout, attaching images to PCB trace documentation for field replacement reference.
5. Final QC & Packaging: Fit plastic dust blanking covers over exposed edge backplane connector and channel test points, wipe edge connector pin surfaces with isopropyl alcohol to remove manufacturing oxidation residue, wrap the long PCB in static-dissipative foam, seal inside rigid shock-resistant transit packaging, and affix a dated QC Passed sticker with unique inspector ID number. Bench test raw pulse linearity and Module Bus communication stability data files available upon buyer request.



Technical Risk Avoidance Section

Field Signal Overvoltage Miswiring Risk

Risk: Running 120VAC / 230VAC high-voltage control wiring alongside low-voltage 24VDC pulse sensor cables into the NTDI01 termination panel connected to the ABB 3BSE006503R1 induces destructive overvoltage on pulse input channels, burning onboard isolation and pulse capture circuits on first energization.Prevention: Strictly segregate high-voltage AC control cabling and low-voltage pulse instrument wiring into dedicated, isolated cable trays routed to separate terminal quadrants on the termination unit per OEM wiring guidelines.Field anecdote: A coal-fired power plant lost all four fan speed monitoring channels after maintenance crews routed 120VAC solenoid wiring into the pulse terminal block without cable segregation.

Dipshunt Configuration Mismatch Risk

Risk: Incorrect dipshunt strapping on the paired termination unit configures channels for analog input mode instead of pulse input, disabling all pulse frequency capture on the slave card and resulting in zero speed/flow DCS tags.Prevention: Set XU channel dipshunts to pulse input mode per Bailey service manual before connecting field pulse sensor cables and rack energization.

Rack Backplane 24V Polarity Reversal Risk

Risk: Reversed positive/negative rack backplane power to the edge connector burns onboard pulse logic ICs and Module Bus communication transceivers, permanently disabling all four pulse input channels with no visible exterior PCB damage.Prevention: Verify MMU rack backplane 24VDC polarity with a multimeter before rack energization after slave card replacement.

Pulse Cable EMI Interference Risk

Risk: Unshielded pulse sensor cable routed parallel to large mill/fan VFD motor power wiring induces high-frequency noise pulses superimposed on legitimate tacho signals, generating false random speed spikes and unstable DCS RPM trend chatter.Prevention: Deploy factory matched shielded multi-core pulse instrument cable, ground cable shield single-ended at the DCS termination panel only.

Cabinet Over-Temperature Degradation Risk

Risk: Blocked rack cooling airflow pushes internal ambient temperature above +60 °C maximum rating, accelerating onboard pulse filter capacitor aging and creating slow pulse count drift over months of continuous power plant operation.Prevention: Maintain unobstructed vertical airflow clearance above and below long horizontal slave PCBs; clear dust buildup on rack cooling fans during quarterly plant maintenance cycles.

ESD Damage Risk

Risk: Low-humidity control room environments (<30% RH) generate static discharge that burns delicate pulse capture analog front-end ICs on the PCB, disabling individual pulse input channels with no visible solder damage to exterior hardware.Prevention: Place an anti-static mat beneath the MMU rack service access panel during slave card replacement; wear a grounded ESD wrist strap at all times when handling exposed populated circuit boards.

Practical summary: Complete high/low voltage cable segregation audit, pulse-mode dipshunt configuration validation, and rack cooling airflow inspection before rack energization to eliminate roughly 95% of common field failure modes for pulse slave module hardware.



FAQ

1. Q: I operate modern Symphony Plus SD series DCS racks with HPC800 controllers, can this pulse slave card integrate with my new SD I/O system?A: Not compatible. The uses legacy copper Module Bus and long horizontal MMU rack form factor; modern SD I/O uses HN800 fiber bus and compact PTU mounting base, requiring separate PFTU pulse interface modules.
2. Q: What lead time applies when ordering the ABB 3BSE006503R1 for North American fossil and combined-cycle power plant DCS cabinet maintenance?A: Surplus slave PCBs are stocked at our US industrial electrical spare parts warehouse; standard air freight delivery to domestic power generation facilities takes 3–5 business days. Sea freight shipments to Southeast Asia transit in 18–24 calendar days. OEM production is permanently discontinued, surplus inventory volume is strictly limited.
3. Q: Does the 12-month warranty cover PCB pulse circuit damage from miswired high-voltage AC field cables or reversed rack backplane 24V power polarity?A: Warranty coverage only extends to manufacturing defects within pulse capture logic, channel isolation circuits and Module Bus edge connectors. Damage caused by misrouted high-voltage wiring, reversed backplane power, incorrect dipshunt strapping or unmitigated lightning surges is fully excluded from coverage. Conduct full pre-commissioning wiring and dipshunt configuration validation cycles to extend service life.
4. Q: How should I store unused spare pulse slave boards long-term to avoid edge connector pin oxidation and pulse filter capacitor degradation?A: Keep unmounted PCBs sealed in original anti-static foam packaging with edge backplane connector dust caps installed, inside temperature-controlled storage (15–25°C, 40–60% RH). Avoid storage adjacent to high-current transformer or VFD enclosures emitting stray heat and electromagnetic interference; sustained elevated ambient temperature accelerates analog component aging over multi-year idle storage periods.
5. Q: Will I need to reconfigure all turbine/fan speed pulse scaling logic in Symphony Composer after swapping an old slave card for this new unit?A: A full four-channel pulse linearity test and speed scaling verification is recommended post-installation. While the card uses factory-standard pulse capture logic, minor termination panel wiring resistance differences create small frequency measurement offset values requiring minor DCS function block trim adjustment.
6. Q: Can multiple pulse slave modules each paired with termination panels share a single IEMMU MMU rack backplane 24VDC power supply and one Module Bus segment?A: Yes, two constraints apply:

1. Total combined continuous DC draw of all slave card assemblies must remain under 80% of the rack backplane PSU rated continuous output, reserve 20% load headroom for cold startup transient events;
2. Single Module Bus segment supports up to 32 mixed slave modules ( + NRAI01 / NRAO01 / ), follow OEM bus load calculation guidelines to avoid communication bandwidth overload.

1. Q: I maintain a coal-fired power plant boiler auxiliary DCS rack with fan tachometer pulse monitoring, what is the most frequent field failure mode observed on this module model?A: Degraded pulse input surge suppression resistors after 10–14 years of continuous rack operation are the primary failure source, which allows unfiltered EMI noise to distort tachometer pulse signals and create erratic boiler fan speed DCS tag fluctuations. Inspect rack cooling airflow and re-run full four-channel pulse linearity testing during annual major plant shutdown maintenance windows to mitigate degradation.
