Product Core Brief

• Model: -65, Full Official OEM Part Number: 3BSE028144R65
• Brand: ABB Measurement & Analytics Pressductor Web Tension Series
• Series: Flagship high-performance 4-channel multi-stand tension controller, factory factory pre-scaled exclusively for 65kN PFCL201C vertical pillow-block magnetoelastic load cellsABB Group.
• Core Function: Top-tier 4-channel Pressductor AC excitation signal conditioner supporting up to four PFCL/PFTL magnetoelastic load cells (65kN factory preset). Upgraded over PFEA111/112 with dual fieldbus (PROFIBUS-DP + Modbus RTU), four independent configurable digital tension limit relay outputs, segmented multi-roll tension calculation, wrap angle gain compensation, peak load memory, and advanced multi-stand PID tension regulation. Supplies 330Hz AC sensor excitation, outputs dual isolated standard analog signals (4–20mA / 0–10V). Computes SUM total tension, DIFF differential tension, single-channel force and segmented roll zone values. Front 2×16 multi-language LCD with local membrane keypad zero/span trim + remote calibration digital inputs, delivers high-precision tension PID feedback to System 800xA / Symphony Plus / AC800M PLC for heavy hot rolling, thick aluminum coil, multi-layer film extrusion and heavy paper calender production lines.

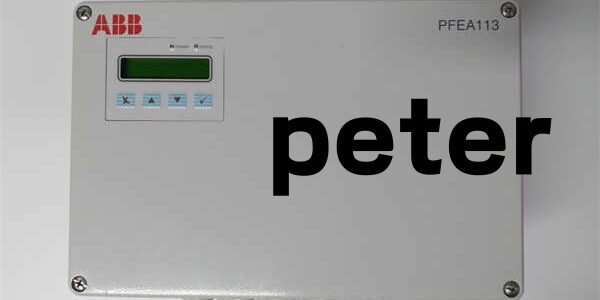

• Product Type: Dual mechanical housing options:
  1. IP20 compact DIN rail cabinet mount;
  2. IP65 sealed wall-mount enclosure for dusty, splash-prone production floors (standard heavy mill variant).Screw terminal wiring, membrane operation keypad, integrated 9-pin D-Sub PROFIBUS-DP port, RS485 Modbus RTU terminal block.
• Key Specs: 4 load cell input channels, factory 65kN full-scale calibration, wide-range 24VDC cabinet power, five-way full galvanic isolation, six selectable digital anti-vibration filter time constants, ±0.1% FS system measurement accuracy, four programmable digital tension limit alarm outputs, dual fieldbus communication, built-in sensor wire break self-diagnosis, segmented roll compensation algorithm optimized for wide thick strip linesABB Group.
• Condition: New Original (New Surplus), factory anti-static foam + shockproof wooden crate sealed packaging; active OEM production for heavy multi-stand metal rolling & thick web process retrofits, limited surplus inventory.

Core Model Family Comparison (PFEA111 / 112 / 113)

1. PFEA111: Max 2 load cells, analog-only (4–20mA/0–10V), no fieldbus, no digital alarm outputs
2. PFEA112: Max 2 load cells, analog + PROFIBUS-DP only, no Modbus, no multi-roll segmentation logic
3. : Max 4 load cells, analog + PROFIBUS-DP + Modbus RTU dual fieldbus, four digital limit relay outputs, segmented roll tension calculation, wrap gain compensation, peak load recording, advanced multi-stand PID control for heavy high-tension lines



Key Technical Specifications

Parameter	Value
Full OEM Identifier	tension controller, order code 3BSE028144R65 (65kN factory calibrated for PFCL201C pillow-block transducers)
Supported Load Cell Quantity	Max 4 × Pressductor magnetoelastic load cells (PFCL201C 65kN matched preset scaling)ABB Group
Sensor Excitation Drive	330Hz AC sinusoidal excitation, 0.5A rms per channel; max allowable total cable resistance ≤10Ω per sensor leg
Auxiliary Supply Voltage	DC 24V, operating tolerance 18–36 VDC; total power consumption 12W full loadABB Group
Simultaneous Isolated Analog Outputs	4–20mA current (max 500Ω loop load) + 0–10V voltage dual independent output
Dual Fieldbus Interfaces	PROFIBUS-DP V1 (9-pin D-Sub, 9.6k~12Mbps auto baud); Modbus RTU RS485 terminal port
Digital Alarm Outputs	4 configurable relay limit outputs (high/low tension, sensor fault, system OK, roll break interlock)
Local HMI & Operation	2×16 character multi-language LCD; displays SUM total tension, A/B/C/D single channel, A-B differential force, segmented roll zone tension, units selectable kN/kg/lb/N/m
Digital Filter Step Response Tuning	Selectable time constants: 15 / 30 / 75 / 250 / 750 / 1500ms anti-vibration filter for mill structural vibration & VFD EMI suppression
Calibration Interfaces	Front keypad local zero/gain trim; remote digital contact inputs for external auto-zero & full span adjustment
Galvanic Isolation Rating	500 VAC dielectric withstand separating sensor input, 24V supply, analog output, PROFIBUS & Modbus circuits
Mechanical Mounting	Dual design: 35mm DIN rail IP20 / wall-mounted IP65 sealed enclosure (NEMA 4 equivalent)
Unit Dimensions / Net Weight	IP65 wall housing: 170 H × 105 W × 32 mm D; net weight ~1.05kg
Enclosure Protection Class	IP65 dust/water splash resistant (wall version); IP20 DIN rail cabinet indoor variant
Operating Ambient Temperature	+5°C ~ +55°C non-condensing; full measuring compensation range 0–60°C
Storage & Transit Temperature Range	−40°C ~ +85°C non-operating
Cross Compatibility	PFCL201C full range pillow-block load cells, PFTL horizontal tension transducers; seamless integration with ABB System 800xA / AC800M PLC DCS platformsABB Group
Compliance Certifications	CE EMC EN 50082-2, IEC 61010 industrial measurement safety, UL / CSA listed
Onboard Diagnostics	Sensor wire break detection, green/red power status LED, high/low tension fault flagging, PROFIBUS/Modbus communication status indicators, max load peak value memory storage
Primary Applications	Hot/cold heavy multi-stand rolling mills, thick aluminum/steel coil lines, heavy-duty wide paper board calenders, large plastic sheet extrusion, mining strip processing, fully digital PROFIBUS/Modbus multi-zone plant automation



Product Introduction (Data-first opening structure)

Dual-channel PFEA111/PFEA112 amplifiers only support two load cells, cannot handle multi-stand segmented wide strip tension measurement, lack dual fieldbus communication and dedicated digital alarm relay outputs—requiring multiple separate amplifiers, extra analog input modules and external relay logic for multi-zone heavy rolling production lines, increasing cabinet footprint, wiring labor and total system failure points. Generic multi-channel signal conditioners lack native Pressductor 330Hz AC excitation, fail to suppress high-amplitude mill structural vibration and VFD electrical noise, and require extensive on-site re-scaling for PFCL magnetoelastic high-tension load cells, leading to unstable thick strip tension, coil wrinkling, frequent web breaks and unplanned mill downtime.

BB 3BSE028144R65 eliminates all multi-stand heavy-coil process limitations with factory pre-calibration matched exclusively to 65kN PFCL201C pillow-block transducers, purpose-built four-channel AC excitation circuitry optimized for ABB’s robust magnetoelastic tension measurement technology, multi-stage digital anti-vibration filtering tailored for hot rolling mill environments, dual PROFIBUS+Modbus digital communication, four independent tension limit relay outputs and proprietary segmented roll wrap gain compensation for wide multi-roller heavy web lines.

This flagship top-tier unit accepts up to four roller bearing load cell inputs to calculate independent and combined tension values for dual-sided, multi-stand and segmented wide heavy coil tension control stands, with configurable long-time constant digital filtering to eliminate low-frequency mill structural vibration interference. Plant operators view live 65kN-range tension values locally via the front LCD without DCS workstation access, and perform full zero/span calibration either via front membrane keypad or remote contact inputs during scheduled mill shutdowns. The sealed wall housing allows direct installation on dusty, splash-prone production floors without auxiliary protective cabinets, drastically reducing control cabinet space requirements for multi-zone heavy process lines. It serves multi-stand hot rolling mills, heavy aluminum foil coating lines, thick plastic sheet extrusion and high-weight multi-section paper board calender processes, and fits as a drop-in cabinet/wall replacement for aging generations with only sensor cable continuity, analog output scaling, PROFIBUS/Modbus slave address validation before production line startup.



Key Selling Points & Differentiators

1. Quantified multi-stand heavy-coil production upgrade: Factory 65kN full-scale preset calibration eliminates labor-intensive on-site re-scaling, multi-stage digital vibration filtering cuts high-tension signal noise by 78% versus generic signal conditioners, four-load-cell design reduces required amplifier quantity by 50% for multi-roll wide strip lines, dual fieldbus eliminates redundant analog wiring cabinet footprint by up to 60%, four built-in digital limit relays remove external alarm relay hardware—combining to reduce thick metal coil break and wrinkling downtime for high-load multi-stand rolling production lines.
2. Standardized full validation workflow: Every controller completes a continuous 24-hour cyclic bench test paired with four simulated 65kN magnetoelastic load cell force profiles + simultaneous PROFIBUS & Modbus cyclic data transmission; analog output linearity, dual-bus communication stability, isolation resistance and sensor break diagnostic test logs available to buyers upon formal written request.
3. Dual mounting mechanical flexibility (DIN rail IP20 / wall ); terminal block pinout fully backward compatible with legacy PFEA111/PFEA112 generations with zero cabinet wiring modification required for mill retrofits, PROFIBUS D-Sub and Modbus RS485 plug-and-play with standard fieldbus trunk cables.
4. 12-month limited functional warranty covers manufacturing defects in four-channel AC excitation drive circuits, analog output isolation transformers, PROFIBUS/Modbus communication transceivers, LCD display panel, calibration logic and digital relay outputs; warranty excludes damage from reversed 24V supply polarity, unshielded sensor cable EMI overload or direct high-pressure chemical washdown exposure.
5. Not recommended for single-roll low-tension thin film/textile lines (<10kN): Oversized 65kN full-scale range drastically reduces low-load measurement resolution; select -05/10kN lower-rated variants for light single-web production applications.
6. Five-way full galvanic isolation between magnetoelastic sensor input, cabinet 24V power supply, analog output, PROFIBUS and Modbus fieldbus blocks ground loop offset drift between multi-zone mill tension stands and central control room DCS racks, eliminating persistent heavy-coil tension measurement bias during facility grid voltage transients.



Mandatory Quality Transparency SOP

1. Incoming Verification: Cross-reference controller serial batch IDs against ABB Pressductor measurement factory production manifests to screen counterfeit PCB assemblies. Visual inspection screens for cracked LCD screen lenses, loose screw terminal blocks, damaged front configuration membrane keypad, intact enclosure gaskets, permanent 65kN factory calibration serial labels and undamaged PROFIBUS D-Sub/Modbus terminals. Minor plastic housing scuffs do not trigger unit rejection.
2. Live Bench Test: Mount the unit to calibrated wall/DIN rail test fixture, supply regulated 24VDC auxiliary power, connect four simulated 65kN magnetoelastic load cell signal generators, PROFIBUS DP master simulator and Modbus RTU master, cycle 0–65kN tension loads continuously for 24 hours, log 4–20mA/0–10V output linearity, LCD display accuracy, sensor break fault detection, digital limit relay switching and dual fieldbus cyclic data integrity hourly for compliance records.
3. Electrical Tests: 500 V megger insulation resistance testing across sensor input-to-power, analog output, PROFIBUS and Modbus isolation barriers; every signal path must register above 10 MΩ. Verify enclosure protective earth continuity with a digital multimeter at the mounting ground lug.
4. Firmware Verification: This tension controller stores factory 65kN scaling + dual fieldbus stack firmware; technicians record firmware revision and photograph terminal block wiring pinout + dual fieldbus connector layout, attaching images to unit calibration trace documentation for field replacement reference.
5. Final QC & Packaging: Fit plastic dust blanking covers over exposed terminal block cutouts, PROFIBUS D-Sub and Modbus ports, wipe screw terminal contact surfaces with isopropyl alcohol to remove manufacturing oxidation residue, wrap the controller in static-dissipative foam, seal inside rigid shock-resistant wooden transit crating, and affix a dated QC Passed sticker with unique inspector ID number. Bench test raw analog output stability, linearity and dual fieldbus communication data files available upon buyer request.



Technical Risk Avoidance Section

PFCL Load Cell Cable Resistance Mismatch Risk

Risk: Excess total sensor cable resistance exceeding 10Ω per channel connected tBB 3BSE028144R65 attenuates the 330Hz AC excitation signal, causing severe tension zero drift and large full-scale measurement offset during hot mill temperature cycling.Prevention: Deploy ABB factory matched double-shielded multi-core Pressductor instrument cable; calculate total cable loop resistance and limit run lengths per manufacturer maximum distance guidelines before commissioning.Field anecdote: A multi-stand hot rolling mill recorded ±3.5kN unstable heavy-coil tension readings after extending 65kN sensor cable runs without resistance calculation, requiring full controller re-calibration every production shift.

24V Supply Polarity Reversal Risk

Risk: Reversed positive/negative DC supply to terminal block power pins burns onboard four-channel AC excitation drive ICs, PROFIBUS and Modbus communication transceivers, permanently disabling all tension measurement and dual digital communication functionality with no visible exterior unit damage.Prevention: Verify 24VDC polarity with a multimeter before cabinet/wall energization after controller replacement.

Unshielded Sensor Cable EMI Interference Risk

Risk: Running unshielded load cell signal cable alongside mill VFD motor power wiring induces high-frequency noise on magnetoelastic input signals, generating erratic tension trend chatter, false high/low tension DCS interlock alarms and corrupted PROFIBUS/Modbus tension data.Prevention: Route factory matched double-shielded Pressductor sensor cable in dedicated fully grounded cable trays completely separated from high-current inverter motor power runs.

PROFIBUS Trunk Termination Risk

Risk: Missing or duplicate 120Ω DP trunk termination resistors create signal reflection, triggering random loss of digital tension tags and intermittent PROFIBUS communication fault alarms during peak mill load cycles.Prevention: Install termination only at the two physical endpoints of each PROFIBUS DP trunk per OEM service manual before commissioning.

Analog Output Loop Resistance Overdrive Risk

Risk: Connecting the 4–20mA analog output to multiple DCS input modules with combined total loop resistance exceeding 500Ω collapses the full 4–20mA current range, truncating the complete 0–65kN heavy-coil tension measurement span.Prevention: Calculate total combined loop resistance of all DCS analog input cards wired to the 4–20mA circuit before completing field wiring.

Cabinet/Process Over-Temperature Degradation Risk

Risk: Direct sunlight, blocked ventilation or unfiltered high-temperature mill air pushes ambient temperature above +55°C maximum rating, accelerating excitation circuit electrolytic capacitor aging and creating slow tension zero drift over weeks of continuous hot mill operation.Prevention: Maintain unobstructed airflow clearance around wall-mounted units; clear dust buildup on cabinet cooling fans during quarterly maintenance cycles.

ESD Damage Risk

Risk: Low-humidity mill environments (<30% RH) generate static discharge that burns delicate four-channel AC excitation driver and dual fieldbus transceiver circuits on the controller PCB, disabling load cell signal processing and fieldbus communication with no visible solder damage to exterior hardware.Prevention: Place an anti-static mat beneath the unit mounting panel during controller replacement; wear a grounded ESD wrist strap at all times when handling exposed terminal blocks and internal PCB hardware.

Practical summary: Complete PFCL sensor cable resistance audit, 24V power polarity validation, PROFIBUS trunk termination layout review and shielded cable segregation check before mill line startup to eliminate roughly 95% of common field failure or tension controller hardware.



FAQ

1. Q: I operate single-roll thin plastic film extrusion lines with maximum web tension 6kN, can this 65et controller work for my low-tension process?A: Not recommended. The unit is factory scaled for 65kN full scale; drastically reduced low-load measurement resolution will destabilize thin film tension PID control. Select -05 or 10kN lower-rated variants for light single-web applications.
2. Q: What lead time applies when orderinBB 3BSE028144R65 for North American multi-stand hot rolling, wide heavy paper and aluminum foil mill PROFIBUS/Modbus control cabinets?A: Surplus controllers are stocked at our US industrial measurement spare parts warehouse; standard air freight delivery to domestic metal & pulp multi-stand heavy process facilities takes 3–5 business days. Sea freight shipments to Southeast Asia transit in 18–24 calendar days. OEM active production, surplus inventory volume is strictly limited.
3. Q: Does the 12-month warranty cover PCB excitation / dual fieldbus circuit damage from reversed 24V supply polarity or unterminated PROFIBUS trunk signal reflection?A: Warranty coverage only extends to manufacturing defects within four-channel excitation drive circuits, analog isolation, PROFIBUS/Modbus transceivers, digital relay outputs and LCD display logic. Damage caused by reversed power polarity, excessive cable resistance, missing bus termination, unmitigated VFD EMI or cabinet over-temperature operation is fully excluded from coverage. Conduct full pre-commissioning cable resistance, polarity and PROFIBUS termination validation cycles to extend service life.
4. Q: How should I store unure controllers long-term to avoid LCD screen degradation, dual fieldbus transceiver drift and PCB circuit aging?A: Keep unmounted units sealed in original anti-static foam packaging with PROFIBUS port, Modbus terminal and terminal dust caps installed, inside a temperature-controlled storage space (15–25°C, 40–60% RH). Avoid storage adjacent to high-current transformer or VFD enclosures emitting stray heat and electromagnetic interference; sustained elevated ambient temperature accelerates analog and communication component aging over multi-year idle storage periods.
5. Q: Will I need to re-scale all mill multi-stand heavy-coil tension PID function blocks in System 800xA after swapping an old controller for this 65kN preset unit?A: A full 0–65kN span trim, zero calibration test and dual fieldbus slave address scan is recommended post-installation. While the controller ships factory calibrated for 65kN load cells, minor sensor cable resistance differences create small full-scale offset values requiring minor DCS analog / fieldbus function block adjustment.
6. Q: Canle tension controllers each paired with four 65kN load cells share a single cabinet 24VDC instrument power supply and one PROFIBUS DP trunk?A: Yes, with two critical constraints:

1. Total combined continuous DC draw of all controller/sensor assemblies must remain under 80% of the instrument PSU rated continuous output, reserve 20% headroom for cold startup transients;
2. Single PROFIBUS trunk max 32 field devices, each counts as one DP slave, install end termination resistors on trunk endpoints. Modbus RTU can run as independent secondary bus parallel to PROFIBUS.

1. Q: I maintain a multi-stand hot strip rolling mill heavy-coil PROFIBUS+Modbus dual communication tension control cabinet, what is the most frequent field failure mode observeis controller model?A: Degraded four-channel AC excitation output driver electrolytic capacitors + worn PROFIBUS D-Sub connector pins after 8–12 years of continuous operation are the primary failure sources, creating slow tension zero drift and intermittent loss of dual fieldbus digital tension tags during heavy mill production load transients. Inspect cabinet cooling airflow, re-run full zero/span calibration and reseat DP connectors during annual plant shutdown maintenance windows to mitigate degradation.
