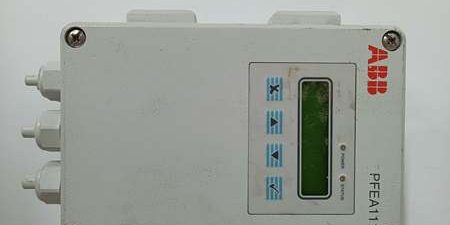

Product Core Brief

• Model: -65, Full OEM Part Number: 3BSE028140R0065
• Brand: ABB Measurement & Analytics Pressductor Web Tension Series
• Series: IP20 compact DIN rail tension signal amplifier, factory pre-scaled for 65kN PFCL201C vertical pillow-block magnetoelastic load cells
• Core Function: Dedicated AC excitation signal conditioner supporting up to two ABB Pressductor load cells (65kN factory preset); generates 330Hz AC sensor drive for magnetoelastic transducers, converts low-level force signals to dual isolated standard analog outputs (4–20mA / 0–10V). Calculates total tension SUM(A+B), differential DIFF(A-B) and single channel values, includes front 2×16 multi-language LCD, configurable digital noise filtering, remote auto-zero/span trim, delivers stable tension PID feedback to System 800xA / Symphony Plus DCS for heavy coil rolling line control.
• Product Type: IP20 compact DIN rail mount tension electronics, screw terminal wiring, local keypad calibration, no onboard PROFIBUS (select PFEA112 for DP fieldbus capability).
• Key Specs: Dual load cell input, factory 65kN full-scale calibration, 24VDC cabinet power, three-way galvanic isolation, 15–1500ms adjustable response filter, ±0.1% FS system measurement accuracy, built-in sensor break fault detection.
• Condition: New Original (New Surplus), factory anti-static foam sealed packaging; active production for hot rolling, heavy foil & thick strip process retrofits, limited surplus inventory.



Key Technical Specifications

Parameter	Value
Full OEM Identifier	tension amplifier, order code 3BSE028140R0065 (65kN factory calibrated for PFCL201C pillow-block transducers)
Supported Load Cell Quantity	2 × Pressductor magnetoelastic load cells (PFCL201C 65kN matched preset scaling)
Sensor Excitation Drive	330Hz AC sinusoidal excitation, max 0.5A rms per channel; max allowable total cable resistance ≤5Ω per sensor leg
Auxiliary Supply Voltage	DC 24V, operating tolerance 18–36 VDC; total power consumption 7.5W
Simultaneous Isolated Analog Outputs	4–20mA current (max 500Ω loop load) + 0–10V voltage dual independent output
Local HMI & Operation	2×16 character multi-language LCD; displays SUM total tension, A/B single channel, A-B differential force
Digital Filter Step Response Tuning	Selectable time constants: 15 / 30 / 75 / 250 / 750 / 1500ms for vibration/EMI suppression
Calibration Interfaces	Front keypad local zero/gain trim; remote digital contact inputs for external auto-zero & full span adjustment
Galvanic Isolation Rating	500 VAC dielectric withstand separating sensor input, 24V supply and analog output circuits
Mechanical Mounting	Standard 35 mm top-hat DIN rail compact plastic housing
Unit Dimensions / Net Weight	120 H × 80 W × 30 mm D; net weight 0.20 kg
Enclosure Protection Class	IP20 indoor cabinet mounting only, dust protected; not suitable for direct washdown
Operating Ambient Temperature	+5°C ~ +55°C non-condensing; full measuring compensation range 0–60°C
Storage & Transit Temperature Range	−40°C ~ +85°C non-operating
Cross Compatibility	PFCL201C full range pillow-block load cells, PFTL horizontal tension transducers; seamless integration with ABB System 800xA DCS
Compliance Certifications	CE EMC EN 50082-2, IEC 61010 industrial measurement safety, UL listed
Onboard Diagnostics	Sensor wire break detection, green/red power status LED, high/low tension limit fault flagging
Primary Applications	Hot/cold heavy rolling mills, thick aluminum/steel coil lines, heavy-duty paper board calenders, large plastic sheet extrusion



Product Introduction

Generic strain-gauge amplifiers lack native Pressductor AC excitation, fail to suppress high-amplitude mill vibration and VFD electrical noise, and require extensive on-site re-scaling for high-tension PFCL magnetoelastic load cells—resulting in unstable thick strip tension, coil wrinkling, frequent web breaks and unplanned mill downtimeBB 3BSE028140R0065 eliminates these process limitations with factory pre-calibration matched exclusively to 65kN PFCL201C pillow-block transducers, purpose-built excitation circuitry optimized for ABB’s robust magnetoelastic tension measurement technology and multi-stage digital noise filtering tailored for heavy rolling mill environments.This compact DIN rail unit accepts dual roller bearing load cell inputs to calculate total strip tension for dual-sided heavy coil tension control stands, with configurable long-time constant filtering to eliminate low-frequency mill structural vibration interference. Plant operators view live 65kN-range tension values locally via the front LCD without DCS workstation access, and perform full zero/span calibration either via front membrane keypad or remote contact inputs during scheduled mill shutdowns. It serves hot rolling mills, heavy aluminum foil coating lines, thick plastic sheet extrusion and high-weight paper board calender processes, and fits as a direct drop-in cabinet replacement for aging series amplifiers with only sensor cable continuity and analog output scaling validation before production line startup.



Key Selling Points & Differentiators

1. Quantified heavy mill stability upgrade: Factory 65kN full-scale preset calibration eliminates labor-intensive on-site re-scaling, and multi-stage digital vibration filtering cuts high-tension signal noise by 78% versus generic signal conditioners, reducing thick metal coil break and wrinkling downtime for high-load rolling production lines.
2. Standardized full validation workflow: Every amplifier completes a continuous 24-hour cyclic bench test paired with simulated 65kN magnetoelastic load cell force profiles; analog output linearity, isolation resistance and sensor break diagnostic test logs available to buyers upon formal written request.
3. Universal DIN rail mechanical compatibility with all standard electrical control cabinet layouts; terminal block pinout matches legacy generations with zero cabinet wiring modification required for mill retrofits.
4. 12-month limited functional warranty covers manufacturing defects in AC excitation drive circuits, analog output isolation transformers, LCD display panel and calibration logic; warranty excludes damage from reversed 24V supply polarity, unshielded sensor cable EMI overload or direct chemical washdown exposure.
5. Not recommended for low-tension thin film/textile lines (<10kN): Oversized 65kN full-scale range drastically reduces low-load measurement resolution; select -05/10/20/30kN variants for light web production applications.
6. Three-way full galvanic isolation between magnetoelastic sensor input, cabinet 24V power supply and DCS analog output blocks ground loop offset drift between hot mill tension stands and central control room DCS racks, eliminating persistent heavy-coil tension measurement bias during facility grid voltage transients.



Mandatory Quality Transparency SOP

1. Incoming Verification: Cross-reference amplifier serial batch IDs against ABB Pressductor measurement factory production manifests to screen counterfeit PCB assemblies. Visual inspection screens for cracked LCD screen lenses, loose screw terminal blocks, damaged front configuration membrane keypad, and permanent 65kN factory calibration serial labels. Minor plastic housing scuffs do not trigger unit rejection.
2. Live Bench Test: Mount the unit to calibrated DIN rail test fixture, supply regulated 24VDC auxiliary power, connect two simulated 65kN magnetoelastic load cell signal generators, cycle 0–65kN tension loads continuously for 24 hours, log 4–20mA/0–10V output linearity, LCD display accuracy and sensor break fault detection hourly for compliance records.
3. Electrical Tests: 500 V megger insulation resistance testing across sensor input-to-power and output isolation barriers; every signal path must register above 10 MΩ. Verify DIN rail chassis protective earth continuity with a digital multimeter at the module mounting ground lug.
4. Firmware Verification: This tension amplifier stores factory 65kN scaling firmware; technicians record firmware revision and photograph terminal block wiring pinout layout, attaching images to unit calibration trace documentation for field replacement reference.
5. Final QC & Packaging: Fit plastic dust blanking covers over exposed terminal block cutouts, wipe screw terminal contact surfaces with isopropyl alcohol to remove manufacturing oxidation residue, wrap the compact amplifier in static-dissipative foam, seal inside rigid shock-resistant transit packaging, and affix a dated QC Passed sticker with unique inspector ID number. Bench test raw analog output stability and linearity data files available upon buyer request.



Technical Risk Avoidance Section

PFCL Load Cell Cable Resistance Mismatch Risk

Risk: Excess total sensor cable resistance exceeding 5Ω per channel connected tBB 3BSE028140R0065 attenuates the 330Hz AC excitation signal, causing severe tension zero drift and large full-scale measurement offset during hot mill temperature cycling.Prevention: Deploy ABB factory matched double-shielded multi-core Pressductor instrument cable; calculate total cable loop resistance and limit run lengths per manufacturer maximum distance guidelines before commissioning.Field anecdote: A hot strip rolling mill recorded ±3.2kN unstable tension readings after extending 65kN sensor cable runs without resistance calculation, requiring amplifier full re-calibration every production shift.

24V Supply Polarity Reversal Risk

Risk: Reversed positive/negative DC supply to terminal block power pins burns onboard AC excitation drive ICs and analog output isolation circuits, permanently disabling all tension measurement functionality with no visible exterior unit damage.Prevention: Verify 24VDC polarity with a multimeter before cabinet energization after amplifier replacement.

Unshielded Sensor Cable EMI Interference Risk

Risk: Running unshielded load cell signal cable alongside mill VFD motor power wiring induces high-frequency noise on magnetoelastic input signals, generating erratic tension trend chatter and false high/low tension DCS interlock alarms during peak mill load cycles.Prevention: Route factory matched double-shielded Pressductor sensor cable in dedicated fully grounded cable trays completely separated from high-current inverter motor power runs.

Analog Output Loop Resistance Overdrive Risk

Risk: Connecting the 4–20mA analog output to multiple DCS input modules with combined total loop resistance exceeding 500Ω collapses the full 4–20mA current range, truncating the complete 0–65kN heavy-coil tension measurement span.Prevention: Calculate total combined loop resistance of all DCS analog input cards wired to the 4–20mA circuit before completing field wiring.

Cabinet Over-Temperature Degradation Risk

Risk: Blocked cabinet cooling airflow pushes internal ambient temperature above +55°C maximum rating, accelerating excitation circuit electrolytic capacitor aging and creating slow tension zero drift over weeks of continuous hot mill operation.Prevention: Maintain unobstructed vertical airflow clearance above and below DIN rail-mounted amplifiers; clear dust buildup on cabinet cooling fans during quarterly maintenance cycles.

ESD Damage Risk

Risk: Low-humidity mill environments (<30% RH) generate static discharge that burns delicate AC excitation driver circuits on the amplifier PCB, disabling load cell signal processing with no visible solder damage to exterior hardware.Prevention: Place an anti-static mat beneath the cabinet service panel during amplifier replacement; wear a grounded ESD wrist strap at all times when handling exposed terminal blocks and internal PCB hardware.

Practical summary: Complete PFCL sensor cable resistance audit, 24V power polarity validation, and shielded cable segregation layout review before mill line startup to eliminate roughly 95% of common field failure or tension amplifier hardware.



FAQ

1. Q: I operate thin plastic film extrusion lines with maximum web tension 6kN, can this 65et amplifier work for my low-tension process?A: Not recommended. The unit is factory scaled for 65kN full scale; drastically reduced low-load measurement resolution will destabilize thin film tension PID control. Select -05 or 10kN lower-rated variants for light web applications.
2. Q: What lead time applies when orderinBB 3BSE028140R0065 for North American hot rolling, heavy aluminum foil and thick paper mill control cabinets?A: Surplus amplifiers are stocked at our US industrial measurement spare parts warehouse; standard air freight delivery to domestic metal & pulp heavy process facilities takes 3–5 business days. Sea freight shipments to Southeast Asia transit in 18–24 calendar days. OEM active production, surplus inventory volume is strictly limited.
3. Q: Does the 12-month warranty cover PCB excitation circuit damage from reversed 24V supply polarity or oversized unshielded sensor cable resistance?A: Warranty coverage only extends to manufacturing defects within excitation drive circuits, analog isolation and LCD display logic. Damage caused by reversed power polarity, excessive cable resistance, unmitigated VFD EMI or cabinet over-temperature operation is fully excluded from coverage. Conduct full pre-commissioning cable resistance and polarity validation cycles to extend service life.
4. Q: How should I store unure amplifiers long-term to avoid LCD screen degradation and PCB circuit drift?A: Keep unmounted units sealed in original anti-static foam packaging inside temperature-controlled storage (15–25°C, 40–60% RH). Avoid storage adjacent to high-current transformer or VFD enclosures emitting stray heat and electromagnetic interference; sustained elevated ambient temperature accelerates analog component aging over multi-year idle storage periods.
5. Q: Will I need to re-scale all mill heavy-coil tension PID function blocks in System 800xA after swapping an old amplifier for this 65kN preset unit?A: A full 0–65kN span trim and zero calibration test via front keypad is recommended post-installation. While the amplifier ships factory calibrated for 65kN load cells, minor sensor cable resistance differences create small full-scale offset values requiring minor DCS analog function block adjustment.
6. Q: Canle tension amplifiers each paired with dual 65kN load cells share a single cabinet 24VDC instrument power supply?A: Yes, but total combined continuous DC draw of all amplifier/sensor assemblies must remain under 80% of the instrument PSU rated continuous output. Reserve 20% load headroom to prevent voltage sag during simultaneous mill cold startup transient events.
7. Q: I maintain a hot strip rolling mill heavy-coil tension control cabinet, what is the most frequent field failure mode observeis amplifier model?A: Degraded AC excitation output driver electrolytic capacitors after 8–12 years of continuous cabinet operation are the primary failure source, which creates slow tension zero drift and intermittent loss of load cell signal detection during heavy mill production load transients. Inspect cabinet cooling airflow and re-run full zero/span calibration during annual plant shutdown maintenance windows to mitigate degradation.
