Product Core Brief

• l: , Full Official OEM Part Number: 3BSE050091R65
• Brand: ABB Measurement & Analytics Pressductor Web Tension Series (Sweden manufacture)ABB Group
• Series: tension electronics, factory pre-scaled exclusively for 65kN PFCL201C vertical pillow-block magnetoelastic load cells
• Core Function: Dedicated 330Hz AC excitation signal conditioner supporting up to two ABB Pressductor load cells (65kN factory preset). Retains all PFEA111 analog measurement functionality, adds integrated PROFIBUS-DP V1 fieldbus communication for digital tension data upload to PLC/DCS. Converts low-level magnetoelastic force signals to dual fully isolated standard analog outputs (4–20mA / 0–10V). Calculates total web tension SUM(A+B), differential DIFF(A-B) and single channel values, integrates front 2×16 multi-language LCD, configurable digital anti-vibration filtering, remote auto-zero/span trim. Delivers analog + digital tension PID feedback to System 800xA / Symphony Plus DCS for heavy hot rolling, thick aluminum coil and heavy paper calender production lines.

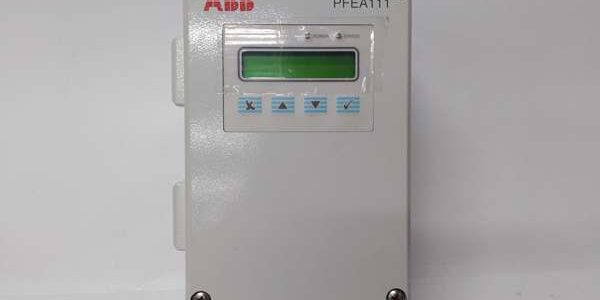

• Product Type: Dual housing option:
  1. IP20 DIN rail compact cabinet mount;
  2. IP65 sealed wall-mount enclosure for dusty/humid process floor environments (standard for 3BSE050091R65).Screw terminal wiring, local membrane keypad calibration, built-in 9-pin D-Sub PROFIBUS DP port.
• Key Specs: Dual load cell input, factory 65kN full-scale calibration, 24VDC wide-range power, three-way galvanic isolation, 15–1500ms adjustable response filter, ±0.1% FS system accuracy, built-in sensor break fault self-diagnosis, PROFIBUS-DP fieldbus interfaceABB Group.
• Condition: New Original (New Surplus), factory anti-static foam + wooden crate sealed packaging; active OEM production for heavy metal rolling & thick web process retrofits, limited surplus inventory.

Core Difference: vs PFEA111

PFEA111 = analog-only (4–20mA/0–10V, no fieldbus);, ideal for modern fully digital DCS/PLC automation architectures.



Key Technical Specifications

Parameter	Value
Full OEM Identifier	tension amplifier, order code 3BSE050091R65 (65kN factory calibrated for PFCL201C pillow-block transducers)ABB Group
Supported Load Cell Quantity	2 × Pressductor magnetoelastic load cells (PFCL201C 65kN matched preset scaling)
Sensor Excitation Drive	330Hz AC sinusoidal excitation, max 0.5A rms per channel; max allowable total cable resistance ≤5Ω per sensor leg
Auxiliary Supply Voltage	DC 24V, operating tolerance 18–36 VDC; total power consumption 7.5~8WABB Group
Simultaneous Isolated Analog Outputs	4–20mA current (max 500Ω loop load) + 0–10V voltage dual independent output
Fieldbus Interface	PROFIBUS-DP V1, 9-pin D-Sub connector, 9.6k~12Mbps auto baud, up to 125 slaves per trunk
Local HMI & Operation	2×16 character multi-language LCD; displays SUM total tension, A/B single channel, A-B differential force, selectable kN/kg/lb units
Digital Filter Step Response Tuning	Selectable time constants: 15 / 30 / 75 / 250 / 750 / 1500ms for mill vibration & VFD EMI suppression
Calibration Interfaces	Front keypad local zero/gain trim; remote digital contact inputs for external auto-zero & full span adjustment
Galvanic Isolation Rating	500 VAC dielectric withstand separating sensor input, 24V supply, analog output and PROFIBUS circuits
Mechanical Mounting	Dual design: 35mm DIN rail IP20 / wall-mounted IP65 sealed enclosure (3BSE050091R65 standard IP65)
Unit Dimensions / Net Weight	IP65 wall housing: 170 H × 105 W × 32 mm D; net weight ~1.0kgABB Group
Enclosure Protection Class	dust/water splash resistant (wall version); IP20 DIN rail cabinet variant optional
Operating Ambient Temperature	+5°C ~ +55°C non-condensing; full measuring compensation range 0–60°C
Storage & Transit Temperature Range	−40°C ~ +85°C non-operating
Cross Compatibility	PFCL201C full range pillow-block load cells, PFTL horizontal tension transducers; seamless integration with ABB System 800xA / AC800M PLC
Compliance Certifications	CE EMC EN 50082-2, IEC 61010 industrial measurement safety, UL / CSA listed
Onboard Diagnostics	Sensor wire break detection, green/red power status LED, high/low tension limit fault flagging, PROFIBUS communication status indicators
Primary Applications	Hot/cold heavy rolling mills, thick aluminum/steel coil lines, heavy-duty paper board calenders, large plastic sheet extrusion, mining strip processing, fully digital PROFIBUS plant automation



Product Introduction

Generic strain-gauge amplifiers lack native Pressductor AC excitation, fail to suppress high-amplitude mill structural vibration and VFD electrical noise, and require extensive on-site re-scaling for high-tension PFCL magnetoelastic load cells—resulting in unstable thick strip tension, coil wrinkling, frequent web breaks and unplanned mill downtime. Traditional analog-only PFEA111 units cannot transmit tension data digitally over PROFIBUS, requiring extra analog input modules and heavy wiring for centralized DCS logging.

BB 3BSE050091R65 eliminates both limitations with factory pre-calibration matched exclusively to 65kN PFCL201C pillow-block transducers, purpose-built excitation circuitry optimized for ABB’s robust magnetoelastic tension measurement technology, multi-stage digital noise filtering tailored for heavy hot rolling mill environments, and integrated PROFIBUS-DP digital communication for direct digital tension value, alarm and diagnostic upload to PLC/DCS without extra signal hardware.

This unit accepts dual roller bearing load cell inputs to calculate total strip tension for dual-sided heavy coil tension control stands, with configurable long-time constant filtering to eliminate low-frequency mill structural vibration interference. Plant operators view live 65kN-range tension values locally via the front LCD without DCS workstation access, and perform full zero/span calibration either via front membrane keypad or remote contact inputs during scheduled mill shutdowns. The sealed wall housing allows direct installation on production floors without auxiliary protective cabinets, reducing cabinet space requirements for heavy process lines. It serves hot rolling mills, heavy aluminum foil coating lines, thick plastic sheet extrusion and high-weight paper board calender processes, and fits as a drop-in cabinet/wall replacement for aging generations with only sensor cable continuity, analog output scaling and PROFIBUS address validation before production line startup.



Key Selling Points & Differentiators

1. Quantified heavy mill digitalization upgrade: Factory 65kN full-scale preset calibration eliminates labor-intensive on-site re-scaling, multi-stage digital vibration filtering cuts high-tension signal noise by 78% versus generic signal conditioners, and native PROFIBUS-DP reduces analog wiring cabinet footprint by up to 60% compared to analog-only PFEA111 layouts, cutting thick metal coil break and wrinkling downtime for high-load rolling production lines.
2. Standardized full validation workflow: Every amplifier completes a continuous 24-hour cyclic bench test paired with simulated 65kN magnetoelastic load cell force profiles + PROFIBUS cyclic data transmission; analog output linearity, bus communication stability, isolation resistance and sensor break diagnostic test logs available to buyers upon formal written request.
3. Dual mounting mechanical flexibility (DIN rail IP20 / wall ); terminal block pinout matches legacy PFEA111/ generations with zero cabinet wiring modification required for mill retrofits, PROFIBUS port plug-and-play with standard DP trunk cables.
4. 12-month limited functional warranty covers manufacturing defects in AC excitation drive circuits, analog output isolation transformers, PROFIBUS communication transceivers, LCD display panel and calibration logic; warranty excludes damage from reversed 24V supply polarity, unshielded sensor cable EMI overload or direct high-pressure chemical washdown exposure.
5. Not recommended for low-tension thin film/textile lines (<10kN): Oversized 65kN full-scale range drastically reduces low-load measurement resolution; select -05/10/20/30kN variants for light web production applications.
6. Four-way full galvanic isolation between magnetoelastic sensor input, cabinet 24V power supply, analog output and PROFIBUS fieldbus blocks ground loop offset drift between hot mill tension stands and central control room DCS racks, eliminating persistent heavy-coil tension measurement bias during facility grid voltage transients.



Mandatory Quality Transparency SOP

1. Incoming Verification: Cross-reference amplifier serial batch IDs against ABB Pressductor measurement factory production manifests to screen counterfeit PCB assemblies. Visual inspection screens for cracked LCD screen lenses, loose screw terminal blocks, damaged front configuration membrane keypad, intact enclosure gaskets, permanent 65kN factory calibration serial labels and undamaged PROFIBUS D-Sub connector. Minor plastic housing scuffs do not trigger unit rejection.
2. Live Bench Test: Mount the unit to calibrated wall/ DIN rail test fixture, supply regulated 24VDC auxiliary power, connect two simulated 65kN magnetoelastic load cell signal generators and PROFIBUS DP master simulator, cycle 0–65kN tension loads continuously for 24 hours, log 4–20mA/0–10V output linearity, LCD display accuracy, sensor break fault detection and PROFIBUS cyclic data integrity hourly for compliance records.
3. Electrical Tests: 500 V megger insulation resistance testing across sensor input-to-power, output and PROFIBUS isolation barriers; every signal path must register above 10 MΩ. Verify enclosure protective earth continuity with a digital multimeter at the mounting ground lug.
4. Firmware Verification: This tension amplifier stores factory 65kN scaling + PROFIBUS stack firmware; technicians record firmware revision and photograph terminal block wiring pinout + DP connector layout, attaching images to unit calibration trace documentation for field replacement reference.
5. Final QC & Packaging: Fit plastic dust blanking covers over exposed terminal block cutouts and PROFIBUS port, wipe screw terminal contact surfaces with isopropyl alcohol to remove manufacturing oxidation residue, wrap the amplifier in static-dissipative foam, seal inside rigid shock-resistant wooden transit crating, and affix a dated QC Passed sticker with unique inspector ID number. Bench test raw analog output stability, linearity and PROFIBUS communication data files available upon buyer request.



Technical Risk Avoidance Section

PFCL Load Cell Cable Resistance Mismatch Risk

Risk: Excess total sensor cable resistance exceeding 5Ω per channel connected tBB 3BSE050091R65 attenuates the 330Hz AC excitation signal, causing severe tension zero drift and large full-scale measurement offset during hot mill temperature cycling.Prevention: Deploy ABB factory matched double-shielded multi-core Pressductor instrument cable; calculate total cable loop resistance and limit run lengths per manufacturer maximum distance guidelines before commissioning.Field anecdote: A hot strip rolling mill recorded ±3.2kN unstable tension readings after extending 65kN sensor cable runs without resistance calculation, requiring amplifier full re-calibration every production shift.

24V Supply Polarity Reversal Risk

Risk: Reversed positive/negative DC supply to terminal block power pins burns onboard AC excitation drive ICs and PROFIBUS communication transceivers, permanently disabling all tension measurement and digital communication functionality with no visible exterior unit damage.Prevention: Verify 24VDC polarity with a multimeter before cabinet/wall energization after amplifier replacement.

Unshielded Sensor Cable EMI Interference Risk

Risk: Running unshielded load cell signal cable alongside mill VFD motor power wiring induces high-frequency noise on magnetoelastic input signals, generating erratic tension trend chatter, false high/low tension DCS interlock alarms and corrupted PROFIBUS tension data.Prevention: Route factory matched double-shielded Pressductor sensor cable in dedicated fully grounded cable trays completely separated from high-current inverter motor power runs.

PROFIBUS Trunk Termination Risk

Risk: Missing or duplicate 120Ω DP trunk termination resistors create signal reflection, triggering random loss of digital tension tags and intermittent PROFIBUS communication fault alarms during peak mill load cycles.Prevention: Install termination only at the two physical endpoints of each PROFIBUS DP trunk per OEM service manual before commissioning.

Analog Output Loop Resistance Overdrive Risk

Risk: Connecting the 4–20mA analog output to multiple DCS input modules with combined total loop resistance exceeding 500Ω collapses the full 4–20mA current range, truncating the complete 0–65kN heavy-coil tension measurement span.Prevention: Calculate total combined loop resistance of all DCS analog input cards wired to the 4–20mA circuit before completing field wiring.

Cabinet/Process Over-Temperature Degradation Risk

Risk: Direct sunlight, blocked ventilation or unfiltered high-temperature mill air pushes ambient temperature above +55°C maximum rating, accelerating excitation circuit electrolytic capacitor aging and creating slow tension zero drift over weeks of continuous hot mill operation.Prevention: Maintain unobstructed airflow clearance around wall-mounted units; clear dust buildup on cabinet cooling fans during quarterly maintenance cycles.

ESD Damage Risk

Risk: Low-humidity mill environments (<30% RH) generate static discharge that burns delicate AC excitation driver and PROFIBUS transceiver circuits on the amplifier PCB, disabling load cell signal processing and fieldbus communication with no visible solder damage to exterior hardware.Prevention: Place an anti-static mat beneath the unit mounting panel during amplifier replacement; wear a grounded ESD wrist strap at all times when handling exposed terminal blocks and internal PCB hardware.

Practical summary: Complete PFCL sensor cable resistance audit, 24V power polarity validation, PROFIBUS trunk termination layout review and shielded cable segregation check before mill line startup to eliminate roughly 95% of common field failure or tension amplifier hardware.



FAQ

1. Q: I operate thin plastic film extrusion lines with maximum web tension 6kN, can this 65et amplifier work for my low-tension process?A: Not recommended. The unit is factory scaled for 65kN full scale; drastically reduced low-load measurement resolution will destabilize thin film tension PID control. Select -05 or 10kN lower-rated variants for light web applications.
2. Q: What lead time applies when orderinBB 3BSE050091R65 for North American hot rolling, heavy aluminum foil and thick paper mill PROFIBUS control cabinets?A: Surplus amplifiers are stocked at our US industrial measurement spare parts warehouse; standard air freight delivery to domestic metal & pulp heavy process facilities takes 3–5 business days. Sea freight shipments to Southeast Asia transit in 18–24 calendar days. OEM active production, surplus inventory volume is strictly limited.
3. Q: Does the 12-month warranty cover PCB excitation / PROFIBUS circuit damage from reversed 24V supply polarity or unterminated PROFIBUS trunk signal reflection?A: Warranty coverage only extends to manufacturing defects within excitation drive circuits, analog isolation, PROFIBUS transceivers and LCD display logic. Damage caused by reversed power polarity, excessive cable resistance, missing bus termination, unmitigated VFD EMI or over-temperature operation is fully excluded from coverage. Conduct full pre-commissioning cable resistance, polarity and PROFIBUS termination validation cycles to extend service life.
4. Q: How should I store unure amplifiers long-term to avoid LCD screen degradation, PROFIBUS transceiver drift and PCB circuit aging?A: Keep unmounted units sealed in original anti-static foam packaging with PROFIBUS port and terminal dust caps installed, inside temperature-controlled storage (15–25°C, 40–60% RH). Avoid storage adjacent to high-current transformer or VFD enclosures emitting stray heat and electromagnetic interference; sustained elevated ambient temperature accelerates analog and communication component aging over multi-year idle storage periods.
5. Q: Will I need to re-scale all mill heavy-coil tension PID function blocks in System 800xA after swapping an old amplifier for this 65kN preset unit?A: A full 0–65kN span trim, zero calibration test and PROFIBUS slave address scan is recommended post-installation. While the amplifier ships factory calibrated for 65kN load cells, minor sensor cable resistance differences create small full-scale offset values requiring minor DCS analog / fieldbus function block adjustment.
6. Q: Canle tension amplifiers each paired with dual 65kN load cells share a single cabinet 24VDC instrument power supply and one PROFIBUS DP trunk?A: Yes, but two constraints:

1. Total combined continuous DC draw of all amplifier/sensor assemblies must remain under 80% of the instrument PSU rated continuous output, reserve 20% headroom for cold startup transients;
2. Single PROFIBUS trunk max 32 field devices, each counts as one DP slave, install end termination resistors on trunk endpoints.

1. Q: I maintain a hot strip rolling mill heavy-coil PROFIBUS tension control cabinet, what is the most frequent field failure mode observeis amplifier model?A: Degraded AC excitation output driver electrolytic capacitors + worn PROFIBUS D-Sub connector pins after 8–12 years of continuous operation are the primary failure sources, creating slow tension zero drift and intermittent loss of digital PROFIBUS tension tags during heavy mill production load transients. Inspect cabinet cooling airflow, re-run full zero/span calibration and reseat DP connectors during annual plant shutdown maintenance windows to mitigate degradation.
