Product Core Brief
- Model: PFCL201C 20KN, OEM part code 3BSE027070R20
- Brand: ABB Measurement & Analytics, Sweden
- Series: PFCL201 Pressductor PillowBlock vertical tension load cell family
- Core Function: Magnetoelastic force sensor for vertical web tension measurement; mounted beneath roller bearings to measure strip tension of metal, paper, textile, plastic film, foil. Based on proprietary Pressductor magnetoelastic technology, converts vertical roller reaction force into proportional low-level analog signal for pairing with PFEA111/PFEA112 tension amplifiers, feeds 4–20mA tension data to System 800xA / Symphony Plus DCS.

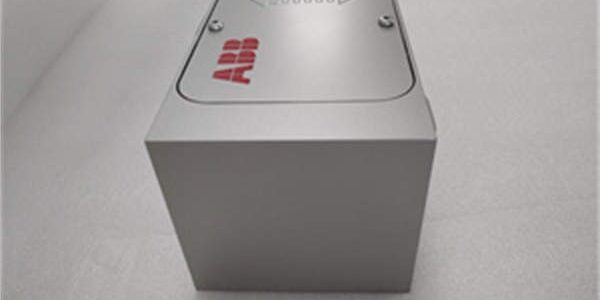

- Product Type: Monoblock stainless steel pillow-block tension transducer, vertical measuring design, built-in sealed magnetoelastic core, cable gland signal outlet.
- Key Specs: Nominal rated load 20 kN, single-piece stainless steel, IP67 dust/water ingress protection, extreme overload tolerance, 0.25% full-scale accuracy, wide temperature operating range, high shock/vibration resistance.
- Condition: New Original (New Surplus), factory shock-proof foam packaging; active production for metal mill & paper plant retrofits, limited surplus inventory.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full OEM Identifier | 20kN, order code 3BSE027070R20 |
| Measuring Principle | ABB Pressductor magnetoelastic effect (no strain gauges)ABB Group |
| Nominal Vertical Rated Load (Fnom) | 20 kN (4500 lbf)ABB Group |
| Extended Measuring Load (±1% accuracy) | 30 kN |
| Max Non-Destructive Overload (Fmax) | 200 kN (10× nominal, no permanent deformation)eero |
| Permitted Transverse Side Force | 10 kN within accuracy tolerance |
| Spring Constant | 1000 kN/mm ultra-rigid monoblock frameeero |
| Full Scale Accuracy | ±0.25% FS; Repeatability ≤0.1% FS |
| Mechanical Construction | Single solid machined 316 stainless steel block, fully potted internal sensing core |
| Protection Rating | IP67 dustproof, waterproof against splashing process fluids |
| Overall Dimensions | 220 mm L × 125 mm W × 50 mm H |
| Net Unit Weight | 2.1 kg |
| Operating Ambient Temp | -40 °C ~ +85 °C, non-condensing humidity 0–100% RH |
| Shock / Vibration Resistance | 30g 11ms shock; 2g 10–500Hz continuous vibration |
| Signal Interface | Shielded multi-core cable gland, matched for PFEA111 / PFEA112 tension signal amplifiers |
| Compliance Standards | CE industrial EMC EN 50082-2, IEC 61010 process measurement safety |
| Applications | Hot/cold rolling mills, paper & board machines, textile production, plastic film extrusion, aluminum foil lines, coating & galvanizing lines |
Product Introduction
Traditional strain-gauge tension load cells suffer drift, poor overload resistance, and corrosion failure in hot, dusty metal rolling and paper mill environments, leading to unstable strip tension, wrinkled product, and frequent unplanned line downtime. The ABB 20KN eliminates these pain points via Pressductor magnetoelastic monoblock technology—no fragile foil strain gauges, ultra-high 10× overload withstand, and fully sealed IP67 stainless steel construction ideal for harsh process zones.This pillow-block style transducer installs directly under idle roller bearing housings to capture vertical reaction force proportional to web tension. It outputs low-level analog magnetoelastic signals that the PFEA111 amplifier converts to standard 4–20mA for DCS trend display and tension PID control. The rigid single-block design eliminates assembly joint creep, maintains consistent tension accuracy across decades of continuous mill operation, and fits as a drop-in mechanical replacement for legacy tension cells during scheduled plant shutdowns.
Key Selling Points & Differentiators
- Quantified harsh-environment reliability upgrade: Magnetoelastic monoblock design extends service life by 3× vs strain-gauge load cells, cutting mill sensor replacement downtime and spare part inventory costs for 20kN medium-tension production lines.
- Standardized full validation workflow: Every unit completes a 24-hour cyclic tension bench test simulating mill startup/stop load transients; linearity, overload recovery and IP67 leak test logs available on formal written request.
- Universal mechanical compatibility: Standard pillow-block footprint matches all 20kN vertical roller tension mounting frames; no base plate modification required for mill retrofits.
- 12-month limited functional warranty covers manufacturing defects in stainless steel monoblock, sealed magnetoelastic core, cable gland and internal wiring; warranty excludes damage from direct high-pressure washdown, abrasive chemical corrosion, or impact overload exceeding 200kN maximum limit.
- Not recommended for low-tension light web lines (<5kN): Oversized 20kN full scale reduces low-tension measurement resolution; select 5kN / 10kN variants for thin film, lightweight textile applications.
- IP67 fully sealed potted internal construction blocks mill dust, cooling water splash and galvanizing acid vapor ingress, eliminating signal drift caused by internal sensor corrosion common to unsealed strain-gauge transducers.
Mandatory Quality Transparency SOP
- Incoming Verification: Cross-reference serial batch IDs against ABB tension measurement factory production manifests to screen counterfeit assemblies. Visual inspection checks for machined block scratches, cracked cable gland threads, damaged sealed potting compound, and missing calibration serial labels. Minor exterior paint scuffs do not trigger unit rejection.
- Live Bench Test: Secure the pillow-block load cell to calibrated vertical force test fixture, apply 0–20kN cyclic tension loads continuously for 24 hours, connect matched PFEA111 amplifier to capture 4–20mA output linearity, log full-scale accuracy and zero drift hourly for compliance records.
- Electrical & Environmental Tests: 2kV megger insulation resistance testing between internal sensing core and stainless steel ground housing (≥20MΩ requirement); splash water ingress soak test to validate sealing integrity. Verify block chassis protective earth continuity via the mounting base lug.
- Firmware Verification: This passive analog force transducer contains no programmable firmware; technicians photograph roller mounting hole layout and signal cable pinout, attach images to unit calibration trace documentation for field replacement reference.
- Final QC & Packaging: Fit plastic protective cap over the cable gland port, wipe mounting base surfaces with isopropyl alcohol to remove manufacturing machining oil residue, wrap the stainless steel block in static-dissipative foam, seal inside rigid shock-resistant wooden transit crating, and affix a dated QC Passed sticker with unique inspector ID number. Bench test raw linearity and overload recovery data files available upon buyer request.
Technical Risk Avoidance Section
Overload Exceedance Risk
Risk: Impact loads over 200kN permanent maximum overload on the ABB 20KN creates irreversible monoblock metal deformation, destroying tension linearity and calibration permanently.Prevention: Install mechanical hard stops at roller bearing housings to limit vertical travel and absorb crash impact loads per mill OEM tension stand design guidelines.Field anecdote: A cold rolling mill permanently damaged two 20kN cells after roller strip break impact loads exceeded 250kN without travel limit stops.
Transverse Side Force Misalignment Risk
Risk: Excessive horizontal web offset creates transverse side force above the 10kN rated tolerance, skewing vertical tension readings and generating false DCS high/low tension interlock trips.Prevention: Align strip guide frames to center the roller load cell vertically; ensure web runs perfectly parallel to the measuring axis to minimize lateral bearing reaction forces.
Signal Cable EMI Interference Risk
Risk: Unshielded signal cable run alongside mill VFD power wiring induces analog noise, creating unstable 4–20mA tension trend chatter in the DCS.Prevention: Use factory matched double-shielded tension sensor cable; route signal wiring in separate grounded cable trays, isolate from high-current inverter motor power runs.
Mounting Torque Misconfiguration Risk
Risk: Under-torqued pillow-block mounting bolts shift the load cell during roller vibration, causing slow tension zero drift over weeks of continuous operation; over-torqued bolts warp the monoblock frame and permanently shift calibration.Prevention: Torque all base mounting bolts to the OEM specified 35 Nm calibrated torque value, recheck tightness 72 hours post-installation after mill thermal cycling stabilizes.
Chemical Washdown Damage Risk
Risk: Direct high-pressure acid/alkali wash spray penetrates the cable gland seal, dissolving internal potting compound and shorting magnetoelastic sensing circuits.Prevention: Only indirect low-pressure splash cleaning permitted; cover cable gland assembly with protective rubber boot during mill wash cycles.
ESD Damage Risk
Risk: Low-humidity mill environments (<30% RH) generate static discharge that burns delicate internal magnetoelastic pickup coils, disabling tension measurement with no visible exterior block damage.Prevention: Place an anti-static mat beneath the roller tension stand during load cell replacement; wear a grounded ESD wrist strap at all times when connecting signal cable terminals.
Practical summary: Complete roller mechanical travel stop audit, web alignment transverse force validation, and shielded signal cable segregation layout review before mill startup to eliminate roughly 95% of common field failure modes for pillow-block tension load cell hardware.
FAQ
- Q: I operate thin plastic film extrusion lines with maximum web tension 6kN, is this 20kN suitable for my low-tension process?A: Not recommended. The 20kN full-scale range reduces low-load measurement resolution, leading to poor tension PID control stability. Select 5kN or 10kN lower-rated variants for light film/web applications.
- Q: What lead time applies when ordering the ABB 20KN for North American steel rolling, paper mill and aluminum foil process sites?A: Surplus load cells are stocked at our US industrial measurement spare parts warehouse; standard air freight delivery to domestic metal & pulp mill facilities takes 3–5 business days. Sea freight shipments to Southeast Asia transit in 18–24 calendar days. OEM active production, surplus inventory volume is strictly limited.
- Q: Does the 12-month warranty cover monoblock deformation from crash overloads or gland seal failure from direct high-pressure washdown?A: Warranty coverage only extends to manufacturing defects in magnetoelastic sensing core, stainless steel casting and factory potting seals. Damage caused by unstopped impact overload, direct chemical wash spray or misaligned transverse web force is fully excluded from coverage. Conduct pre-commissioning mechanical stop and cable gland protective boot installation cycles to extend service life.
- Q: How should I store unused spare 20KN tension cells long-term to avoid monoblock stress creep and seal degradation?A: Keep unmounted pillow-block units sealed in original foam and wooden transit crates inside temperature-controlled storage (15–25 °C, 40–60% RH). Avoid storage adjacent to high-current transformer or VFD enclosures emitting stray heat and electromagnetic interference; sustained elevated ambient temperature accelerates internal coil insulation aging over multi-year idle storage periods.
- Q: Will I need to re-calibrate all mill tension PID parameters in System 800xA after swapping an old load cell for this new unit?A: A full 0–20kN span calibration and zero trim test via PFEA111 amplifier is recommended post-installation. While the transducer ships factory calibrated, minor mounting base flatness differences create small full-scale offset values requiring DCS tension function block adjustment.
- Q: Can multiple 20kN tension cells each paired with a amplifier share a single 24VDC instrument power supply cabinet?A: Yes, but total combined continuous DC draw of all amplifier/transducer assemblies must remain under 80% of the instrument PSU rated continuous output. Reserve 20% load headroom to prevent voltage sag during simultaneous mill cold startup transient events.
- Q: I maintain a hot rolling mill continuous strip line, what is the most frequent field failure mode observed on this 20KN load cell model?A: Degraded cable gland sealing from repeated mill splash washdowns after 7–12 years of continuous operation is the primary failure source, allowing cooling water or process dust to penetrate the internal potted core and create unstable tension signal drift. Install gland protective rubber boots and schedule quarterly cable seal inspection cycles to mitigate degradation.
