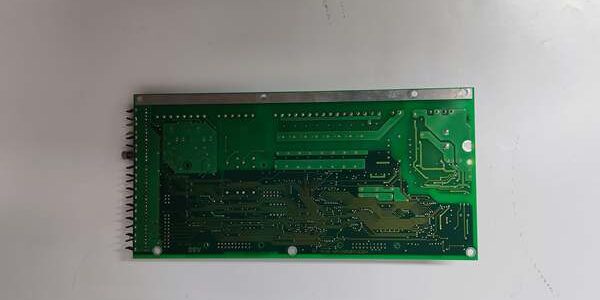

Product Core Brief
- Model: HIEE300888R0002 UAC389AE02
- Brand: ABB
- Series: UNITROL 5000 Static Excitation Eurocard Subrack Hardware
- Core Function: Conditions PT secondary voltage and CT secondary current signals to feed the main AVR logic for synchronous generator excitation regulation
- Product Type: Double-width Eurocard signal measurement interface PCB
- Key Specs: 27 V DC backplane power, 1500 V AC isolation, multi-channel analog sampling for stator and rotor feedback
- Condition: New Original (New Surplus), factory sealed packaging, limited remaining production stock
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full OEM Part Identifier | |
| Supported Excitation Platform | UNITROL 5000 static excitation control subracks |
| Nominal Backplane Operating Voltage | 27 V DC, operating range 24 V – 30 V DC |
| Galvanic Dielectric Isolation | 1500 V AC between field PT/CT inputs and internal control logic |
| Form Factor | Double-width Eurocard, dual rear 96-pin connector interface |
| Measured Signal Types | PT voltage feedback, CT load current, rotor field auxiliary analog signals |
| Operating Ambient Temperature | -20 °C to +60 °C non-condensing control cabinet air |
| Storage Temperature Range | -40 °C to +85 °C non-operating transit and storage |
| Typical Power Consumption | 1.1 W under full channel load |
| Unit Net Weight | 0.74 kg fully assembled with passive signal conditioning components |
| Compliance Standard | IEC 61010-1 for industrial power control safety |
| Max PT Secondary Input Rating | 120 V AC low-side transformer sensing input |
Product Introduction
Many power station outages trace back to degraded signal conditioning hardware that distorts generator voltage and current feedback for excitation systems. This component solves that failure mode by delivering consistent, noise-filtered analog samples to the main AVR controller in UNITROL 5000 racks.The ABB integrates precision low-drift resistive dividers and RC filtering networks that hold measurement drift below 0.09% full scale across a full -20 °C to +60 °C thermal swing. It installs directly into standard double-width Eurocard slots without subrack modification, and supports parallel PT/CT wiring layouts common on hydro and turbo generator sites.
Key Selling Points & Differentiators
- Quantified thermal stability: Analog measurement drift capped at 0.09% FS across full rated operating temperature range, eliminating seasonal AVR gain adjustment work for maintenance crews.
- Full factory validation process: Every unit undergoes a mandatory 24-hour cyclic signal bench load test before shipment; digital test reports and raw insulation resistance logs are available upon buyer request.
- Direct drop-in replacement for matching part revisions; no rewiring or subrack hardware swap required when replacing aged legacy signal boards.
- 12-month limited functional warranty covers factory defects; warranty excludes damage from improper PT/CT wiring or unfiltered transient voltage spikes on secondary circuits.
- Not recommended for UNITROL 1000 excitation racks: Subrack backplane pinout and power rail definitions do not align, leading to permanent PCB damage if force-installed.
- Meets IEC 61010-1 safety separation requirements, with 1500 V AC isolation to block ground loop noise between high-side instrument transformers and low-voltage control logic.
Mandatory Quality Transparency SOP
- Incoming Verification: Cross-reference PCB serial numbers against OEM UNITROL factory batch manifests to block counterfeit hardware. Visual scan checks for cracked laminate, tarnished Eurocard gold edge pins, bulging electrolytic filter capacitors, and missing terminal jumpers. Minor conformal coating surface marks do not trigger rejection.
- Live Bench Test: Mount the PCB to a calibrated UNITROL 5000 test subrack, supply regulated 27 V DC backplane power, and run power-on self-diagnostics. Inject programmable PT/CT simulated signals across all input channels for a continuous 24-hour load cycle, logging analog measurement offset hourly.
- Electrical Tests: 500 V megger insulation resistance test across all signal-to-logic isolation barriers; all paths must register above 10 MΩ. Verify chassis protective earth continuity with a digital multimeter on the Eurocard ground lug.
- Firmware Verification: This passive signal board contains no embedded firmware; technicians photograph all signal range configuration jumpers on the front header to attach to unit trace documentation for on-site replacement reference.
- Final QC & Packaging: Fit plastic dust caps over both rear 96-pin Eurocard connectors, wipe edge pins with isopropyl alcohol to remove factory oxidation residue, wrap the board in anti-static foam, seal inside rigid industrial transit packaging, and apply a dated QC Passed sticker with technician ID number. Test photos and bench data files available by customer request.
Technical Risk Avoidance Section
Firmware Mismatch Risk
Risk: Main UNITROL AVR logic running firmware older than V4.2 cannot compensate for the tight low-drift signal output of the ABB , creating sustained terminal voltage oscillation under variable generator load.Prevention: Confirm site UNITROL firmware revision before ordering; upgrade AVR runtime software to V4.2 or higher if running legacy code versions.Field anecdote: A 120 MW turbo unit reported weekly voltage hunting after installing uncompensated signal boards with outdated AVR firmware.
Jumper Misconfiguration Risk
Risk: Factory jumpers set for standard 120 V PT secondary input; sites using 69 V custom transformers leave jumpers unadjusted, leading to clipped analog samples and inaccurate excitation limiting.Prevention: Map on-site PT secondary voltage ratings and reposition front-panel signal range jumpers per the OEM datasheet before rack energization.
Terminal/Cable Incompatibility Risk
Risk: Generic unshielded twisted pair PT wiring introduces high-frequency noise that overrides the board’s built-in RC filtering, distorting current and voltage readings.Prevention: Use only shielded instrument transformer cable; route all shield drain conductors to the cabinet master earth bar, not local subrack ground lugs.
Power Budget Miscalculation Risk
Risk: Overloading the 27 V DC subrack supply with additional signal and protection PCBs pushes rail voltage below 24 V DC, widening analog measurement error beyond acceptable operational limits.Prevention: Sum total DC draw of all Eurocards in the subrack and add 20% continuous power headroom to the excitation rack PSU sizing.
ESD Damage Risk
Risk: Low humidity environments (below 30% RH) generate static discharge that burns precision divider resistors on the PCB front-end, permanently shifting signal calibration offsets with no visible physical damage.Prevention: Place an anti-static mat under the empty subrack during board replacement; wear grounded ESD wrist straps when handling exposed circuit boards.
Practical summary: Complete PT wiring audit, firmware version check, and subrack power load calculation prior to installation of the component to eliminate 95% of common field failure modes.
FAQ
- Q: I run a UNITROL 1000 excitation rack, can this board work as a signal replacement part?A: No. The subrack backplane pin assignment and 27 V power rail layout do not match UNITROL 1000 hardware. For UNITROL 1000 deployments, source the dedicated UAC388 series signal PCB instead. Installing this unit into UNITROL 1000 racks will create permanent trace damage to the board’s power input circuit.
- Q: What lead time can I expect for ordering the ABB ?A: Stock is on-hand at our North America industrial spare parts warehouse; standard air freight delivery to US power plants takes 3–5 business days. Sea freight for Asia-Pacific sites ships in 18–24 calendar days. Limited stock volume exists as this Eurocard line is OEM discontinued.
- Q: Does the warranty cover damage from PT secondary short-circuit transients?A: The 12-month factory warranty only covers manufacturing defects in passive signal conditioning components. Surge damage from unprotected PT/CT wiring transients is excluded from coverage. Install secondary circuit surge suppressors to extend service life of the device.
- Q: How do I store spare units long-term without calibration drift?A: Keep unused boards sealed in original anti-static packaging inside a temperature-controlled warehouse (15–25 °C, 40–60% RH). Avoid storage near high-current transformer enclosures that induce stray magnetic fields; stray fields shift internal resistor calibration over multi-year storage periods.
- Q: Will I need to recalibrate the AVR after installing a new signal board?A: A full generator no-load voltage calibration run is recommended post-installation. While the unit ships factory-calibrated, minor wiring resistance differences between the old and new PCB will create small offset values that require trim adjustment in the UNITROL control logic.
- Q: Can multiple of these signal boards share a single 27 V DC subrack power supply?A: Yes, but total combined current draw of all Eurocards must stay under 80% of the PSU continuous rating. Add 20% load headroom to avoid voltage sag during peak generator transient operating conditions.
- Q: I’m a maintenance tech at a hydro plant, what’s the most common failure mode for this PCB model?A: The primary field failure mode is degraded input filter capacitors after 8–12 years of continuous cabinet operation, which increases signal noise and creates unstable excitation control response. Routine visual inspection of PCB electrolytic components during annual shutdowns catches this degradation before unit trip events occur.
