Product Core Brief
- Model: DP840 (3BSE028926R1)
- Brand: ABB
- Series: S800 I/O
- Core Function: Captures pulse/frequency signals and supports dual single/redundant control rack layouts.
- Product Type: 8-Channel Pulse Counter I/O Module
- Key Specs: 8 galvanically isolated channels | 0.5 Hz–20 kHz range | NAMUR/12 V/24 V signal support Condition: New Original (New Surplus)
Product Introduction

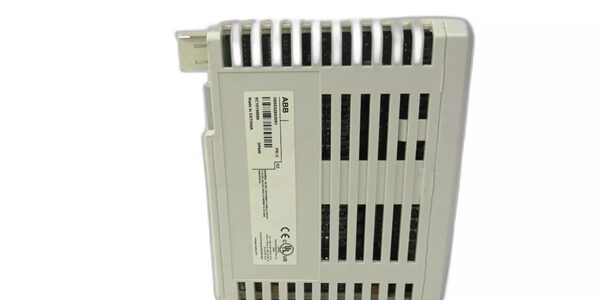

The ABB DP840 3BSE028926R1 is an S800 I/O pulse counter built for encoder, flow meter, and rotational speed sensor signal acquisition. It doubles channel count versus smaller DP-series pulse modules.Well, technically it shares rack slot width with DP820, yet the ABB 3BSE028926R1 carries twice the input channels and adds native redundancy compatibility. Its max signal error caps at 30 ppm with 100 ms PRIT sampling, tighter than comparable 4-channel pulse units.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 3BSE028926R1 () |
| Pulse Input Channels | 8 group-isolated independent channels |
| Supported Signal Levels | NAMUR, 12 V DC, 24 V DC field sensors |
| Frequency Measurement Range | 0.5 Hz to 20 kHz per channel |
| Counter Resolution | 16-bit accumulation counter per channel |
| Channel Isolation Rating | Group-wise isolation, 500 V AC dielectric test |
| Rated Insulation Voltage | 50 V |
| Max Field Cable Length | 200 m |
| Power Dissipation | 4 W full load |
| +5 V Modulebus Draw | 115 mA |
| Operating Temperature | -20 °C to +70 °C (derate above 55 °C vertical mount) |
| Storage Temperature | -40 °C to +85 °C |
| Bus Communication | Profibus DP for AC800M / 800xA systems |
| Form Factor | Single-width S800 rack slot (45 mm width) |
| Enclosure Rating | IP20 per IEC 60529 |
| Compatible Termination Units | TU810V1, TU812V1, TU814V1, TU830V1, TU833V1 |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross-reference serial numbers against ABB factory batch manifests to reject counterfeit hardware. Visual scan checks for cracked housings, bent terminal pins, or PCB discoloration (—minor factory mold marks do not trigger rejection criteria).
- Live Functional Test: Mount the unit to calibrated S800 backplane, supply regulated 24 V rack power, and complete power-on self-test. Establish Profibus DP handshake with AC800M, then run a 24-hour continuous pulse generation load test with hourly temperature logging.
- Electrical Parameter Test: Use a Megger MIT300 set to 500 V for insulation testing; all channel groups must register resistance above 10 MΩ. Validate rack earth continuity via Fluke 115 across the module ground lug.
- Firmware Verification: Pull active firmware revision from the control HMI and log the value to the unit trace sheet. Capture photos of DIP switch positions on the primary termination block for future replacement reference.
- Final QC & Packaging: Clean metal terminal contacts with isopropyl alcohol, seal inside shielding anti-static bag, and attach a dated QC Passed sticker with assigned technician ID.
Replacement Pitfall Guide
- Firmware Mismatch: Legacy AC800M racks running firmware v4.8 or older cannot process redundant mode data from newer ABB 3BSE028926R1 firmware v2.9. Update controller stack or source legacy firmware variants.
- DIP Switch / Jumper Misconfiguration: Factory DIP defaults disable 120 Ω bus termination resistors, but multi-drop redundant I/O racks require this resistor on the final slot; missing it creates frequency reading drift.
- Terminal / Cable Incompatibility: Pulse pin layouts differ between 3BSE028926R1 and DP820. Route shield drain wires directly to rack earth bars, not local sensor ground terminals.
- Power Supply Mismatch: Sum combined sensor draw across all 8 active channels and add 20% power headroom to rack PSU sizing. Undervoltage input distorts low-frequency pulse capture below 1 Hz.
- ESD Damage: Static buildup rises sharply at plant humidity below 30%. Place an anti-static mat under the rack during swaps; bare finger contact on PCB traces ruins NAMUR input circuits instantly.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- 3BSE028926R1 → 3BSE028926R1 : Direct — Full pin, bus, counter, and redundancy drop-in replacement
- 3BSE028926R1 → DP820 : Needs Adaptation — Only 4 input channels, disables redundant rack functionality, sensor wiring must be re-routed
- 3BSE028926R1 → AI830 : Incompatible — Analog input hardware lacks pulse counting logic
- DI810 → 3BSE028926R1 : Incompatible — Digital input channels cannot resolve sub-1 kHz frequency measurements
Benchmarks
- Scan cycle: 0.4 ms (simulated load, 8 active pulse input channels)
- Comms throughput: 12 Mbit/s (Profibus DP)
